“WKPT – C3”: Analogue Kit for Weighbridges with Touch-Screen Indicator

Categories:

Call for price

Analogue weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 “RCPT” analogue load cells, complete with galvanized steel oscillating resting joints and equalisation box with surge arresters.

  • Touch screen indicator, specific for weighbridge.
  • Equalisation box with removable terminals and integrated surge arresters.
  • ANALOGUE load cells in stainless/nickel-plated steel.
  • TOTAL CAPACITY: 240t (8 x 30t cells).
  • OIML R60. C3 precision class.
  • Load cell height 200mm (including cups height).
  • Load cells connection cable length:18m.
GET QUOTATION

Brand:

“WKPT – C3”: Analogue Kit for Weighbridges with Touch-Screen Indicator

Categories:

Call for price

Analogue weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 “RCPT” analogue load cells, complete with galvanized steel oscillating resting joints and equalisation box with surge arresters.

  • Touch screen indicator, specific for weighbridge.
  • Equalisation box with removable terminals and integrated surge arresters.
  • ANALOGUE load cells in stainless/nickel-plated steel.
  • TOTAL CAPACITY: 240t (8 x 30t cells).
  • OIML R60. C3 precision class.
  • Load cell height 200mm (including cups height).
  • Load cells connection cable length:18m.
GET QUOTATION

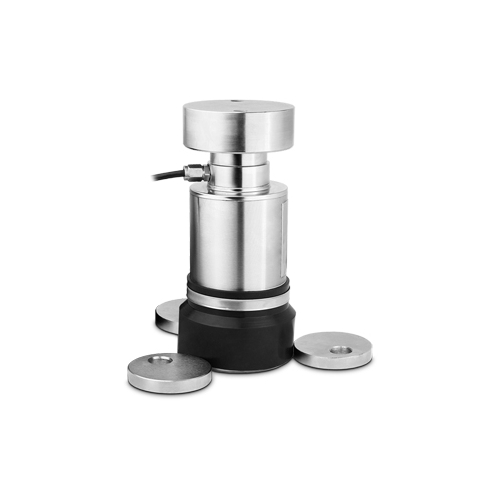

“RCPT” ANALOGUE LOAD CELLS

  • C3 precision class.
  • Stainless steel interior with nickel-plated steel body; laser solderings.
  • Optimized for parallel connection.
  • IP68 protection rating.
  • Capacity 30000kg.
  • 18 m shielded connection cable.
  • Fitted with self-aligned articulated joints, self-centering plates and protection washer.
  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of load cell divisions: nLC = 3000 (C3)
  • Sensitivity: 2mV/V +/- 0,1%
  • Temperature effect on full scale: 0,002% /°C
  • Temperature effect on zero: 0,002% /°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -30°C/+70°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Excitation voltage from 5 to 15 VDC
  • Input Resistance: 700 ± 20 Ohm
  • Output Resistance: 703 ± 7 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance > 5000 MOhm
  • Safe Overload > 150% F.S.
  • Ultimate Overload: 250% F.S.
  • 4-wire shielded cable, 18m long, 5mm diameter.



“3590ET” INDICATOR

  • Touch screen, graphic, color display.
  • ABS waterproof IP65 case.
  • Integrated alibi memory for CE-M approved communication with printer and PC.
  • 3 serial ports, 2 RS232 and 1 RS485 for connection to printer, repeater and PC.
  • 2 inputs and 4 outputs.
  • “AF03” application software suitable for vehicles weighing and weighbridge management, with input/output products check.
  • “AF03GT”application software for vehicles weighing and weighbridge management, with input/output products check.



“JB10Q” JUCTION BOX

  • Junction box with polyester case.
  • Removable terminal blocks.
  • IP66 protection rating or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
  • Surge Arresters against electric discharges and disturbances.

Additional information

Model

WKPT830A

Description

Kit for ANALOGUE weighbridges with 8 load cells. Composed of 3590ET indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCPT30C3 analogue load cells with mounting kit, and JB10Q equalisation box with 10 inputs.
