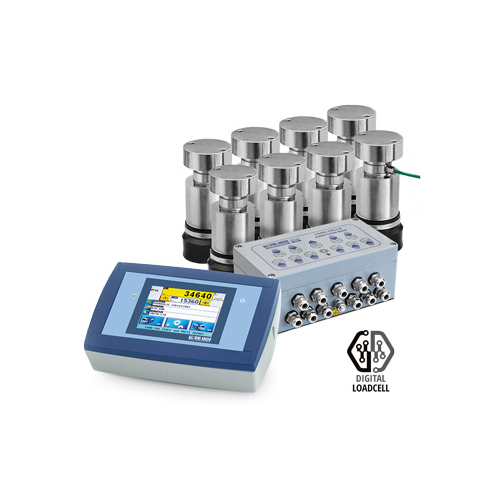

“WKPTD – C4”: DIGITAL KIT FOR WEIGHBRIDGES WITH TOUCH-SCREEN INDICATOR

Categories: ,

Call for price

Digital weighbridges kit made up of 3590ETD touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 “RCPTD” digital load cells, complete with galvanized steel oscillating resting joints and digital equalisation box, with surge arresters.

  • Touch screen indicator, specific for weighbridges.
  • Junction box with removable terminals and integrated surge arresters.
  • DIGITAL load cells in stainless/nickel-plated steel.
  • TOTAL CAPACITY: 240t (8 x 30t cells).
  • OIML R60. C4 precision class.
  • Load cell height 200mm (including cups height).
  • Load cells connection cable length: 18m.
GET QUOTATION

Brand:

“WKPTD – C4”: DIGITAL KIT FOR WEIGHBRIDGES WITH TOUCH-SCREEN INDICATOR

Categories: ,

Call for price

Digital weighbridges kit made up of 3590ETD touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 “RCPTD” digital load cells, complete with galvanized steel oscillating resting joints and digital equalisation box, with surge arresters.

  • Touch screen indicator, specific for weighbridges.
  • Junction box with removable terminals and integrated surge arresters.
  • DIGITAL load cells in stainless/nickel-plated steel.
  • TOTAL CAPACITY: 240t (8 x 30t cells).
  • OIML R60. C4 precision class.
  • Load cell height 200mm (including cups height).
  • Load cells connection cable length: 18m.
GET QUOTATION

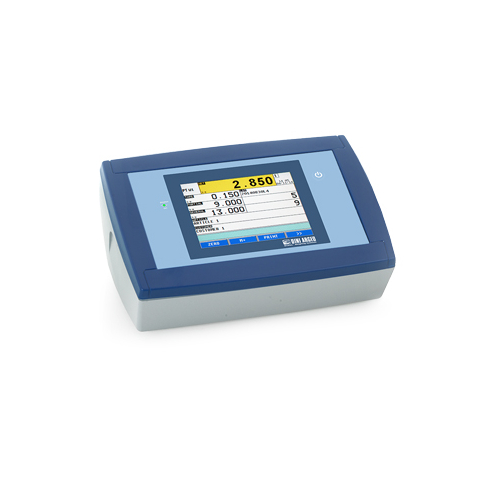

“3590ETD” INDICATOR

  • Touchscreen graphic color display.
  • ABS waterproof IP65 case.
  • Integrated alibi memory for CE-M approved communication with printer and PC.
  • 3 serial ports, 2 RS232 and 1 RS485 for connection to printer, repeater and PC.
  • 2 inputs and 4 outputs.
  • Power supply unit specifically for digital load cells.
  • Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters.
  • “AF03” application software suitable for vehicles weighing and weighbridges management, with input/output products check.

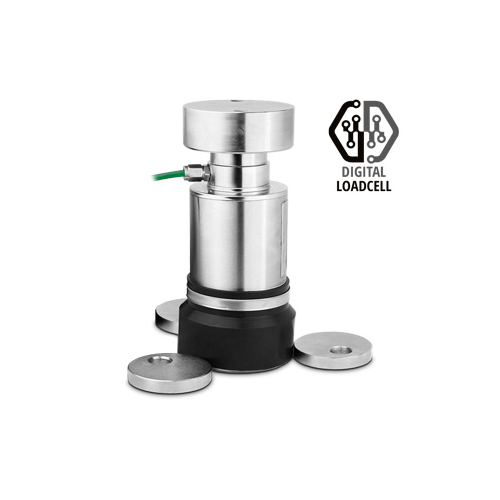

“RCPTD” DIGITAL LOAD CELLS

  • Resolution for nominal load 60.000d.
  • Combined error on nominal load ± 0,01%.
  • Operating temperature range -10°C/+40°C.
  • Power supply tension from 10 to 18 Vdc.
  • Conversion: 24 bit.
  • Connection RS485.
  • Admissible load: 150% F.S.
  • Shielded cable 4 poles, 18m length.

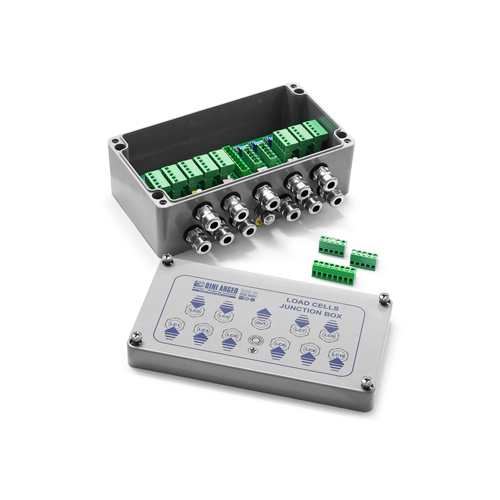

“JB10QD” JUCTION BOX

  • Junction box with polyester case.
  • Removable terminals.
  • IP66 protection rating or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
  • Surge Arresters against electric discharges and disturbances.

Additional information

Model

WKPT830D-1

Description

Kit for DIGITAL weighbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCPTD30C4-1 digital load cells with mounting kit, and JB10QD equalisation box with 10 inputs.
