“WKD – C4”: KIT FOR WEIGHBRIDGES WITH TOUCH-SCREEN INDICATOR

Categories: ,

Call for price

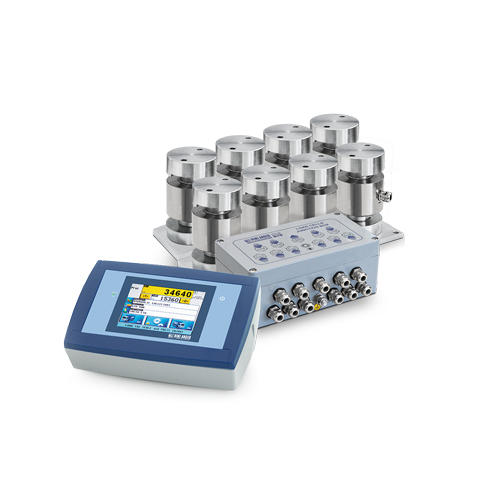

Weighbridges kit made up of 3590ETD touch screen weight indicator with AF03 software for weighbridges, 6 or 8 stainless steel IP68 “RCD” digital load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.

  • Touch screen indicator, specific for weigh bridge.
  • Junction box with removable terminals and integrated surge arrest.
  • DIGITAL load cells in stainless steel.
  • CAPACITY: 180t, 240t.
  • OIML R60. C4 precision class.
  • Load cell height 170mm (including cups height).
  • “Anti rat” armoured cable for each load cell.
WK830D-1, Kit for DIGITAL weightbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.
Call for price
WK630D-1, Kit for DIGITAL weightbridges with 6 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 6 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.
Call for price
GET QUOTATION

Brand:

“WKD – C4”: KIT FOR WEIGHBRIDGES WITH TOUCH-SCREEN INDICATOR

Categories: ,

Call for price

Weighbridges kit made up of 3590ETD touch screen weight indicator with AF03 software for weighbridges, 6 or 8 stainless steel IP68 “RCD” digital load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.

  • Touch screen indicator, specific for weigh bridge.
  • Junction box with removable terminals and integrated surge arrest.
  • DIGITAL load cells in stainless steel.
  • CAPACITY: 180t, 240t.
  • OIML R60. C4 precision class.
  • Load cell height 170mm (including cups height).
  • “Anti rat” armoured cable for each load cell.
WK830D-1, Kit for DIGITAL weightbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.
Call for price
WK630D-1, Kit for DIGITAL weightbridges with 6 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 6 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.
Call for price
GET QUOTATION

ModelDescriptionPrice
Model: WK830D-1Description: Kit for DIGITAL weightbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.Price: Call for price
Model: WK630D-1Description: Kit for DIGITAL weightbridges with 6 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 6 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.Price: Call for price

“3590ETD” INDICATOR

  • Touch screen, graphic, color display.
  • ABS waterproof IP65 case.
  • Integrated alibi memory for CE-M approved communication with printer and PC.
  • 3 serial ports, 2 RS232 and 1 RS485 for connection to printer, repeater and PC.
  • 2 inputs and 4 outputs.
  • Power supply unit specifically for digital load cells.
  • Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters.
  • “AF03” application software suitable for vehicles weighing and weighbridges management, with input/output products check.

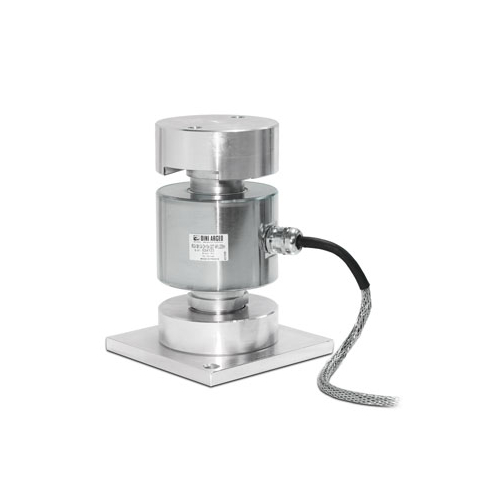

“RCD” digital LOAD CELLS

  • C4 (4000 divisions) precision class.
  • Made in stainless steel, IP68 protection degree.
  • Internal silicone sealing against condensation and temperature changes.
  • 30.000 kg max capacity for each load cell.
  • 200.000d full load capacity resolution.
  • Combined error of Full Scale Output ± 0,017%
  • Operating temperature range -10°C/+40°C
  • Safe overload 150% F.S.
  • “Anti rat” 15 m armoured cable for each cell.
  • Self-alignment articulated joints.
  • Test certificate available upon request.



“JB10QD” digital JUCTION BOX

  • Junction box with polyester case.
  • IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
  • Surge Arresters against electric discharges and disturbances.

Additional information

Model

WK630D-1, WK830D-1

Description

Kit for DIGITAL weightbridges with 6 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 6 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs., Kit for DIGITAL weightbridges with 8 load cells. Composed of 3590ETD indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCD30C4 digital load cells with KRCA mounting kit, and JB10QD digital equalisation box with 10 inputs.
