“WBKPTD – C4”: DIGITAL KIT FOR WEIGHBRIDGES

Categories: ,

Call for price

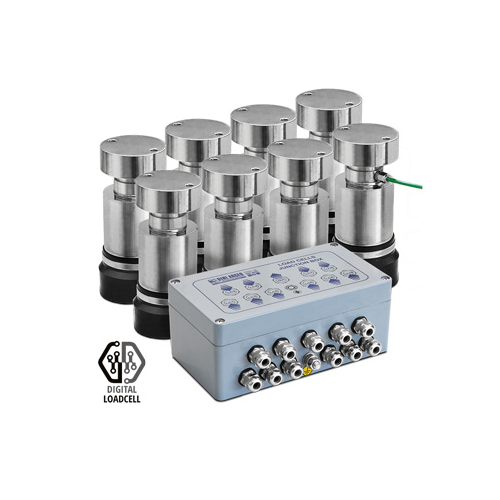

Kit for weighbridges made up of 8 RCPTD series IP68 stainless steel digital load cells, complete with galvanized steel oscillating resting joints and 10 input junction box (available for 3590E TOUCH SCREEN indicator).

  • Special alloy steel body with stainless steel external casing; manufactured with laser solderings.
  • TOTAL CAPACITY : 240t (8 x 30t cells)
  • OIML R60, C4 precision class
  • Load cell height 200mm (including cups height).
  • Load cells connection cable length: 18m.
GET QUOTATION

Brand:

“WBKPTD – C4”: DIGITAL KIT FOR WEIGHBRIDGES

Categories: ,

Call for price

Kit for weighbridges made up of 8 RCPTD series IP68 stainless steel digital load cells, complete with galvanized steel oscillating resting joints and 10 input junction box (available for 3590E TOUCH SCREEN indicator).

  • Special alloy steel body with stainless steel external casing; manufactured with laser solderings.
  • TOTAL CAPACITY : 240t (8 x 30t cells)
  • OIML R60, C4 precision class
  • Load cell height 200mm (including cups height).
  • Load cells connection cable length: 18m.
GET QUOTATION

LOAD CELL FEATURES

  • Special alloy steel body with stainless steel external casing; manufactured with laser solderings.
  • IP68 protection rating.
  • Capacity 30000kg.
  • Fitted with self-aligned articulated joints, self-centering plates and protection washer.
  • Shielded 18m connection cable.
  • Test certificate available upon request.
  • Approved with 3590E touch screen indicator for legal-for-trade use.



JUNCTION BOX FEATURES

  • 10 input JB10QD junction box with reinforced polyester case.
  • IP66 protection rating or IP68 protection with GELBOX option.
  • Surge Arresters against electric discharges and disturbances.

Additional information

Model

WBKPTD830C4-1

Description

Electronics kit for weighbridges made up of 8 RCPTD30C4-1 digital load cells in stainless steel with IP68 protection rating and 30 t capacity, 8 oscillating resting joints, and JB10QD IP66 reinforced polyester junction box.
