Brand:

“WBKPTA – C3”: ANALOGUE KIT FOR WEIGHBRIDGES

Categories: ,

Call for price

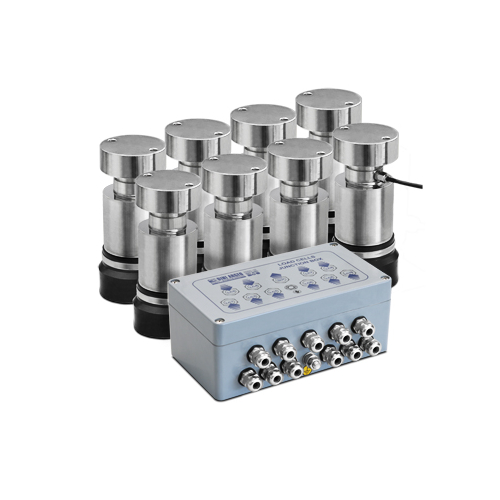

Kit for weighbridges made up of 8 RCPT series analogue load cells, complete with oscillating resting joints and 10 input junction box.

  • Special alloy steel body with stainless steel external casing; manufactured with laser solderings.
  • TOTAL CAPACITY: 240t (8 x 30t cells)
  • OIML R60, C3 precision class.
  • Load cell height 200mm (including cups height).
GET QUOTATION

Brand:

“WBKPTA – C3”: ANALOGUE KIT FOR WEIGHBRIDGES

Categories: ,

Call for price

Kit for weighbridges made up of 8 RCPT series analogue load cells, complete with oscillating resting joints and 10 input junction box.

  • Special alloy steel body with stainless steel external casing; manufactured with laser solderings.
  • TOTAL CAPACITY: 240t (8 x 30t cells)
  • OIML R60, C3 precision class.
  • Load cell height 200mm (including cups height).
GET QUOTATION

LOAD CELL FEATURES

  • C3 precision classes.
  • Special alloy steel body with stainless steel external casing; manufactured with laser solderings.
  • Optimised for parallel connection.
  • IP68 protection rating.
  • Capacity 30.000 kg.
  • Fitted with self-aligned articulated joints, self-centering plates and protection washer.
  • Shielded 18m connection cable.
  • Test certificate available upon request.



JUNCTION BOX FEATURES

  • JB10Q 10 input junction box with glass reinforced polyester case.
  • IP66 protection rating or IP68 protection with GELBOX option.
  • Surge Arresters against electric discharges and disturbances.
  • Removable terminals.

Additional information

Model

WBKPTA830C3

Description

RCPT30C3 Series 8 Analog Load Cells Kit in stainless steel with IP68 protection rating and 30t capacity, 8 oscillating resting joints for self-alignment and JB10Q IP66 reinforced polyester junction box.
