MAIN FEATURES

• AVAILABLE FOR 3590E TOUCH SCREEN INDICATOR.
• C4 PRECISION CLASS.
• SPECIAL ALLOY STEEL BODY with STAINLESS STEEL EXTERNAL CASING; LASER SOLDERINGS.
• IP68 PROTECTION RATING.
• CAPACITY 30000Kg.
• SHIELDED 18m CONNECTION CABLE.
• TEST CERTIFICATE AVAILABLE UPON REQUEST.
• APPROVED WITH 3590 TOUCH SCREEN INDICATOR FOR LEGAL-FOR-TRADE WEIGHING SYSTEMS.

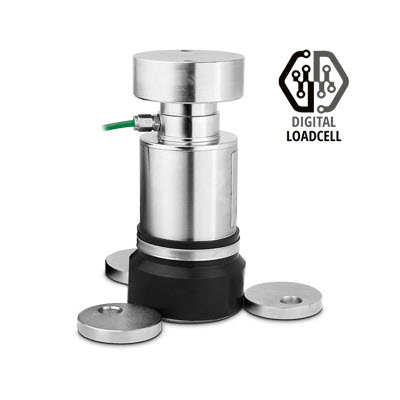

• FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELF-CENTERING PLATES AND PROTECTION WASHER.

TECHNICAL FEATURES

• Resolution for nominal load 60.000d.
• Combined error on nominal load ± 0,01%.
• Operating temperature range -10°C/+40°C.
• Power supply tension from 10 to 18 Vdc.
• Conversion: 24 bit.
• Connection RS485.
• Admissible load: 150% F.S.
• Shielded cable 4 poles, 5mm diameter.
