Brand: Dini Argeo

STG Series Tension Load Cells

Categories: Tension Load Cell

1,430.00 AED – 1,800.00 AED (Excl. VAT)

ADD TO CART to buy or to Request for Quotation (RFQ)

STG100, 100

1,430.00 AED (Excl. VAT)

Available on backorder

STG500, 500

1,430.00 AED (Excl. VAT)

Available on backorder

STG1000, 1000

1,800.00 AED (Excl. VAT)

Available on backorder

Model

Max (kg)

Tension or Compression approved load cells for the weighing hoppers, tanks, scales with levers, and with other weighing devices.
CAPACITIES (kg): 100, 500, 1000.
OIML R60. C3 precision class.
17-4 PH stainless steel. IP67 protection.

GET QUOTATION

Brand: Dini Argeo

STG Series Tension Load Cells

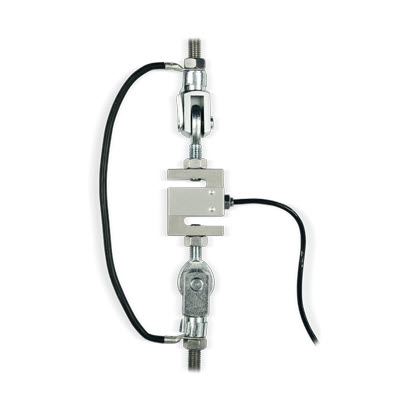

STG Series Tension Load Cells

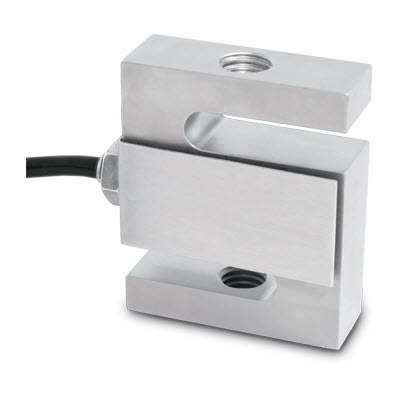

STG Series Tension Load Cells - Image 2

Categories: Tension Load Cell

1,430.00 AED – 1,800.00 AED (Excl. VAT)

ADD TO CART to buy or to Request for Quotation (RFQ)

STG100, 100

1,430.00 AED (Excl. VAT)

Available on backorder

STG500, 500

1,430.00 AED (Excl. VAT)

Available on backorder

STG1000, 1000

1,800.00 AED (Excl. VAT)

Available on backorder

Model

Max (kg)

Tension or Compression approved load cells for the weighing hoppers, tanks, scales with levers, and with other weighing devices.
CAPACITIES (kg): 100, 500, 1000.
OIML R60. C3 precision class.
17-4 PH stainless steel. IP67 protection.

Tags: Analog Load Cell, Crane Load Cell, Force Load Tester, Force Sensor, Force Tester, Force Transducer, Load Cell Sensor, Load Cell Transducer, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Strain Gauge Transducer, Strain Sensor, Stress Gauge Sensor, Tension Load Cell, Torque Sensing, Weighing Sensor, Weight Scale Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

GET QUOTATION

Model	Max (kg)	Price
STG100	100	1,430.00 AED (Excl. VAT)
STG500	500	1,430.00 AED (Excl. VAT)
STG1000	1000	1,800.00 AED (Excl. VAT)

MAIN FEATURES

C3 PRECISION CLASS
17-4 PH STAINLESS STEEL CONSTRUCTION
IP67 PROTECTION
MAX. CAPACITIES FROM 100 TO 1000 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval:
Vmin = EMax / 10.000 (for STG500 and STG1000 model);
Vmin = EMax / 7.000 (for STG100 model)
Maximum number of verification intervals: nLC = 3000
Combined error 0,03% of Full Scale Output (F.S.)
Non-Repeatability: 0,01% F.S.
Full Scale Output: 3mV/V +/- 0,08%
Temperature effect on zero: 0,017% /°C
Temperature effect on full scale output: 0,014% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -35°C/+65°C
Creep error after 30 minutes: 0,02% F.S.
Maximum tolerated excitation voltage: 18 VDC
Input Resistance: 430 ± 60 Ohm
Output Resistance: 350 ± 3.5 Ohm
Zero balance: +/-1% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 300% F.S.
4-wire shielded cable, 6m long, 5 mm diameter

Additional information

Model	STG100, STG500, STG1000
Max (kg)	100, 500, 1000
