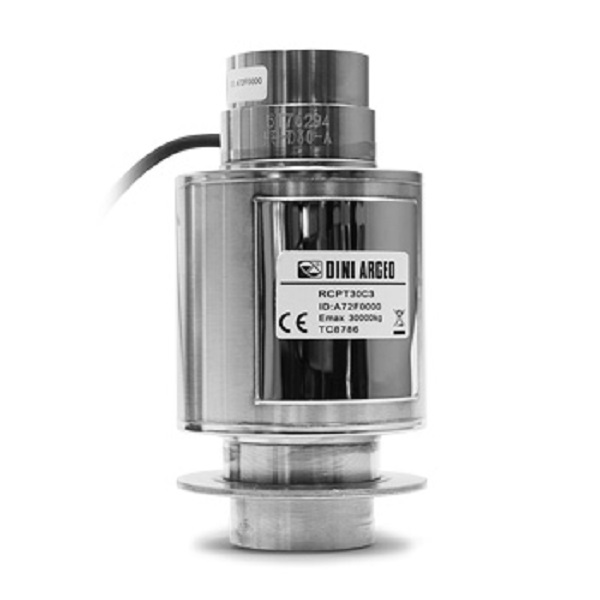

Dini Argeo RCPT Load Cell – Weighbridge, Column, Canister, Compression Type

  • Column load cell for CE-M approved weighbridges, tanks, silos, etc.
  • Special alloy steel body with STAINLESS steel external casing; manufactured with laser soldering.
  • IP68 protection.
  • C3 precision class.
  • Optimized parallel connection
  • Capacity: 20000 TO 50000 kg.
  • Shielded 18m connection cable.

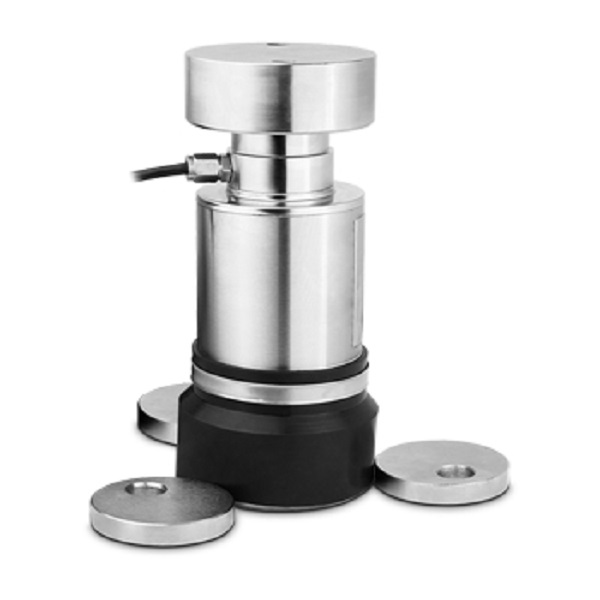

  • Fitted with self-aligned articulated joints, self centering plates and protection washer(version with cups).

Product Variations

No. Thumbnail Model Capacity Stock Quantity Price
No. Thumbnail Model Capacity Stock Quantity Price

Description

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of load cell divisions: nLC = 3000 (C3)
  • Sensitivity: 2mV/V +/- 0,1%
  • Temperature effect on full scale: 0,002% /°C
  • Temperature effect on zero: 0,002% /°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -30°C/+70°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Excitation voltage from 5 to 15 VDC
  • Input Resistance: 700 ± 20 Ohm
  • Output Resistance: 703 ± 7 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: >150% F.S.
  • Ultimate Overload: 250% F.S.
  • 4-wire shielded cable, 5mm diameter



Applications:

Weighbridges, tanks, silos, etc.

Brand

Dini Argeo

Additional information

Model

CPX 500, CPX 1000, CPX 2500, CPX 5000, CPX 10000, CPX 15000, CPX 30000, CPX 50000, CPX 100000

Capacity

500 Kg, 1000 Kg, 2500 Kg, 5000 Kg, 10000 Kg, 15000 Kg, 30000 Kg, 50000 Kg, 100000 Kg
