CPH SERIES COMPRESSION LOAD CELLS

Categories:

Call for price

Call for price
Call for price
Call for price
Call for price
Call for price
Call for price

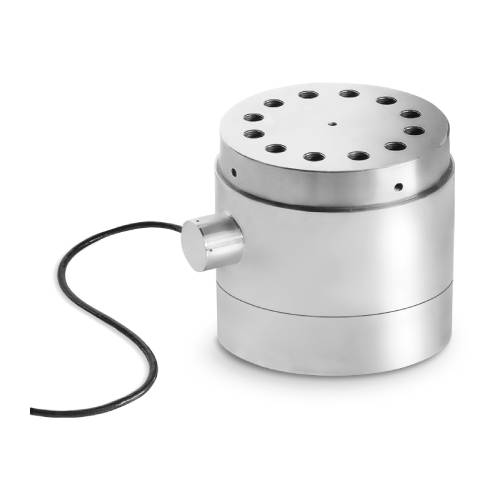

Stainless steel compression load cells with very high load capacity, up to 1000 t.

The CPH model is designed to ensure optimum weighing performance even in the harshest environments. Ideal for load control applications in large capacity silos and to replace level indicators, ensuring greater accuracy and reliability.

CAPACITIES (t): 50, 100, 250, 500, 800, 1.000.

Stainless steel. IP67 protection rating.

GET QUOTATION

Brand:

CPH SERIES COMPRESSION LOAD CELLS

Categories:

Call for price

Call for price
Call for price
Call for price
Call for price
Call for price
Call for price

Stainless steel compression load cells with very high load capacity, up to 1000 t.

The CPH model is designed to ensure optimum weighing performance even in the harshest environments. Ideal for load control applications in large capacity silos and to replace level indicators, ensuring greater accuracy and reliability.

CAPACITIES (t): 50, 100, 250, 500, 800, 1.000.

Stainless steel. IP67 protection rating.

GET QUOTATION

modelPrice
CPH50Call for price
CPH100Call for price
CPH250Call for price
CPH500Call for price
CPH800Call for price
CPH1000Call for price

MAIN FEATURES

  • CAPACITIES from 50 to 1.000 t
  • GREAT RESISTANCE TO LATERAL FORCES
  • STAINLESS STEEL CONSTRUCTION
  • IP67 PROTECTION RATING
  • SHIELDED CONNECTION CABLE

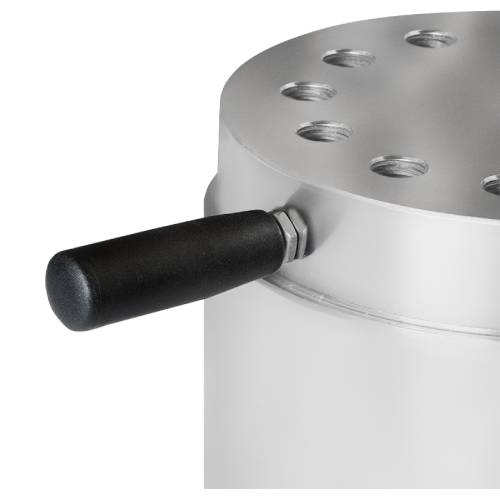

  • REMOVABLE HANDLES FOR TRANSPORTING THE LOAD CELL



TECHNICAL FEATURES

  • Full Scale Output: 2mV/V ± 1%
  • Repeatability: 0,1% F.S.
  • Temperature effect on zero: 0,0014% F.S./°C
  • Temperature effect on full scale output: 0,0013% F.S./°C
  • Compensated Temperature Range: -10°C / +40°C
  • Operating Temperature Range: -30°C / +85°C
  • Storage Temperature Range: -30°C / +90°C
  • Non-linearity: 0,15% F.S.
  • Hysteresis: 0,15% F.S.
  • Creep error after 4 hours: 0,05% F.S.
  • Maximum tolerated excitation voltage: 15 Vdc
  • Input Resistance (capacity from 50 to 500 t): 1050 ± 20 Ohm
  • Output Resistance (capacity from 50 to 500 t): 1050 ± 20 Ohm
  • Input Resistance (capacity from 800 to 1.000 t): 1400 ± 20 Ohm
  • Output Resistance (capacity from 800 to 1.000 t): 1400 ± 20 Ohm
  • Zero Balance: ± 2% F.S.
  • Insulation Resistance: > 5.000 MOhm
  • Safe Overload: > 150% F.S.
  • Breaking load: > 300% F.S.
  • 6-wire shielded cable, 5 mm diameter:
    – 15 m long for the versions from 50 to 500 t
    – 25 m long for the versions from 800 to 1.000 t



Wiring Code
Colour Function
SHIELD
GREEN OUTPUT +
VIOLET SENSE +
RED INPUT +
WHITE OUTPUT –
GREY SENSE –
BLACK INPUT –

Additional information

Weight N/A
model

CPH50, CPH100, CPH250, CPH500, CPH800, CPH1000
