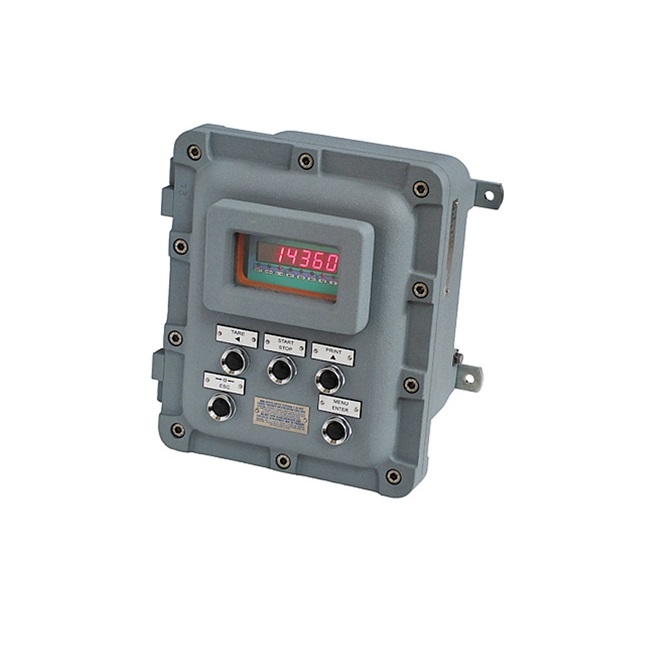

Laumas ADPE W200, Explosion-Proof Weight Indicator with ATEX Box

0.00 AED (Excl. VAT)

Weight Indicator  for ATEX Zone

The system is composed of:

  • Weight indicator W200
  • Passive fail-safe Zener barriers, ATEX II (1) GD approved
  • Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard

Description

  • ATEX certified Zener barriers (dimensions: 105×12.6×82 mm, standard OMEGA/DIN rail mounting):
    MTL 7766Pac supply barrier
    MTL 7761ac signal barrier

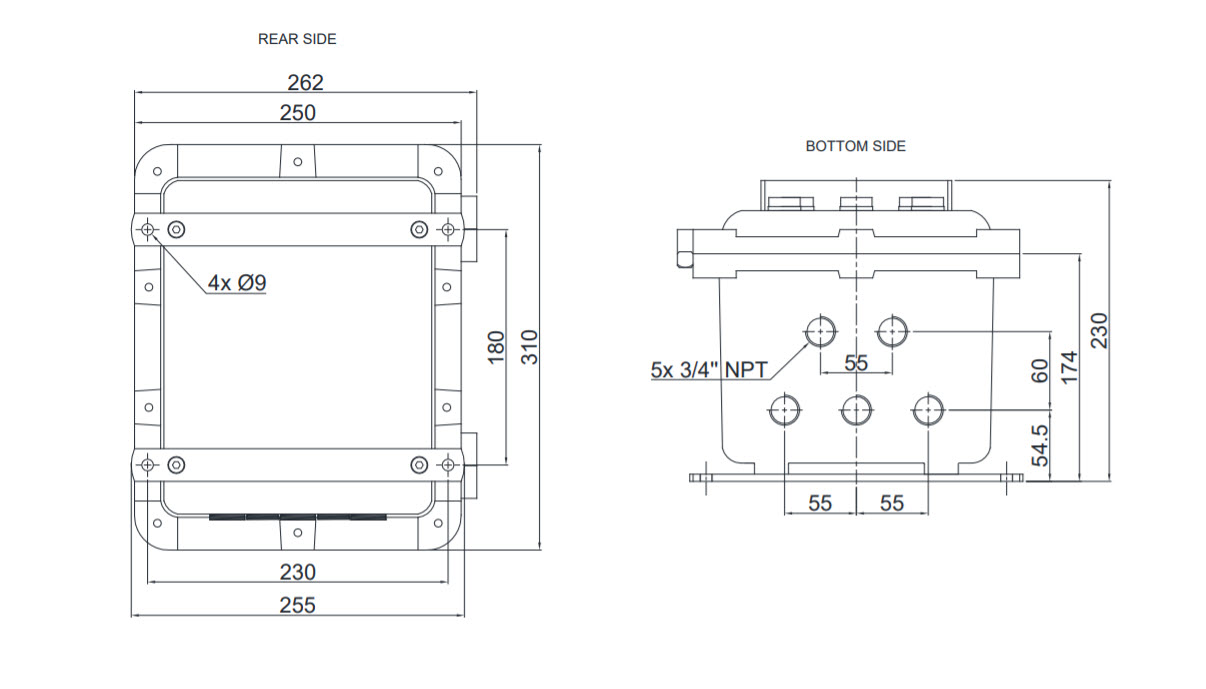

  • ADPE explosion proof box (ATEX/IECEx) equipped with heat-resistant transparent tempered glass window and 5 external buttons which performs the same function as W200 keypad:
  • ATEX marking:
    II 2(1) GD
    Ex d [ia Ga] IIB+H2 T6 Gb
    Ex tb [ia Da] IIIC T85°C Db IP66
    (-20 °C≤Ta≤+40 °C)
    INERIS 14ATEX0008X
  • IECEx marking:
    Ex d [ia Ga] IIB+H2 T6 Gb
    Ex tb [ia Da] IIIC T85°C Db IP66
    (-20 °C≤Ta≤+40 °C)
    IECEx INE 13.0065X
  • The instrument can be configured and managed using the free “Instrument Manager” PC software, which you can download from
    www.laumas.com.

CERTIFICATIONS:

  • OIML R76:2006, class III, 3×10000 divisions, 0.2 μV/VSI / OIML R61 – WELMEC Guide 8.8:2011 (MID)
  • UL Recognized component – Complies with the United States and Canada standards
  • Complies with the Eurasian Custom Union standards
  • CERTIFICATIONS ON REQUEST
    Conformity assessment (initial verification) in combination with Laumas weighing module
    Support for metric label (dimensions: 124x77x1.5 mm)
    NMI Trade Approved – Complies with the Australian standards for legal use with third parties
    Complies with the regulations of the Russian Federation for legal use with third parties

Brand

Laumas

Additional information

Model

ADPE W200

Description

W200 SERIES WEIGHT INDICATOR INTO EXPLOSION PROOF BOX
