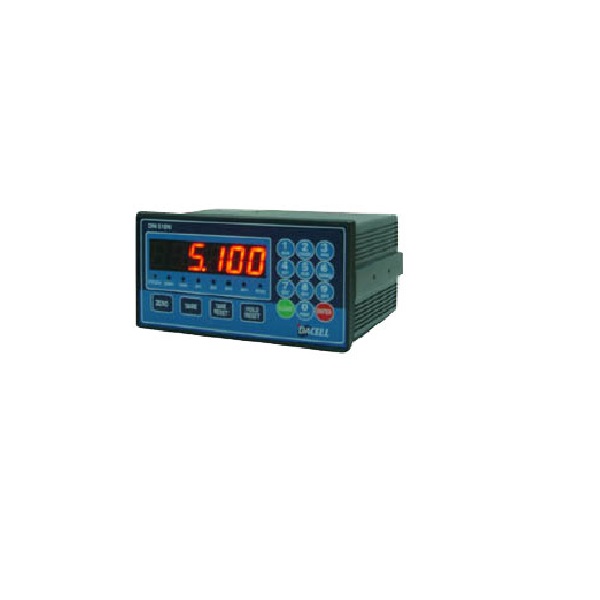

The products have designed specifically to operate with strain gauge sensors such as Fast- measurement of Load cell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.

• High resolving power (16bit A/D)
• High precision (more than 0.012% F.S) and stability
• Quick sampling speed (100times/sec)
• Built-in Shunt calibration switch
• Watch dog
• Small size(96*48*128mm) / Cutting size : 92*45mm
• Weight : about 700g
• Option: Power Input 24V in accordance with customer request



SPECIFICATIONS:



Specifications	Accuracy
Load cell excitation	10VDC±5%, 320mA
Input Signal	0.5 ~ 3.0mV/V
A/D converting speed	200times/sec
A/D converter resolution	1/520,000 counts(19bits), Δ∑
Non-linearity	0.01% of full scale
Zero adjustment range	-0.6mV~42mV
Display Unit	7 segment, 20.0mm(H)×13.0(W)mm
Annunciator	steady, zero, tare, gross, auto, print, hold,Interface
Decimal point position	0, 0.0, 0.00, 0.000
Keyboard	Number key and function key 12 PCS.
Temperature-drift	zero ±20PPM/℃, span ±20PPM/℃
Non-linearity	0.01% of full scale
Rear panel	Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C) control relay output : 7pin terminal
Power	SMPS Free Voltage (85V~265V)
