Dini Argeo “DFWKRP”: Weight Indicator for Vehicle Weighing, Axle/Wheel and Weighbridge Indicator

Description

• Waterproof functional keyboard with 17 keys.
• LCD backlit display with 6 25-mm high contrast digits and with indication of active functions.
• Rack type metallic case.
• Calibration, set-up parameters, printouts, etc., all configurable from keyboard.
• Instrument management & configuration from PC with DINITOOLS.
• Up to 10.000e in single range mode @ 0,3 µV/e in CE-M approved version for legal for trade use.
• Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
• A/D 24-bit 4-channel sigma-delta conversion, up to 200 conv./sec. autoselect and up to 8 signal linearization points.

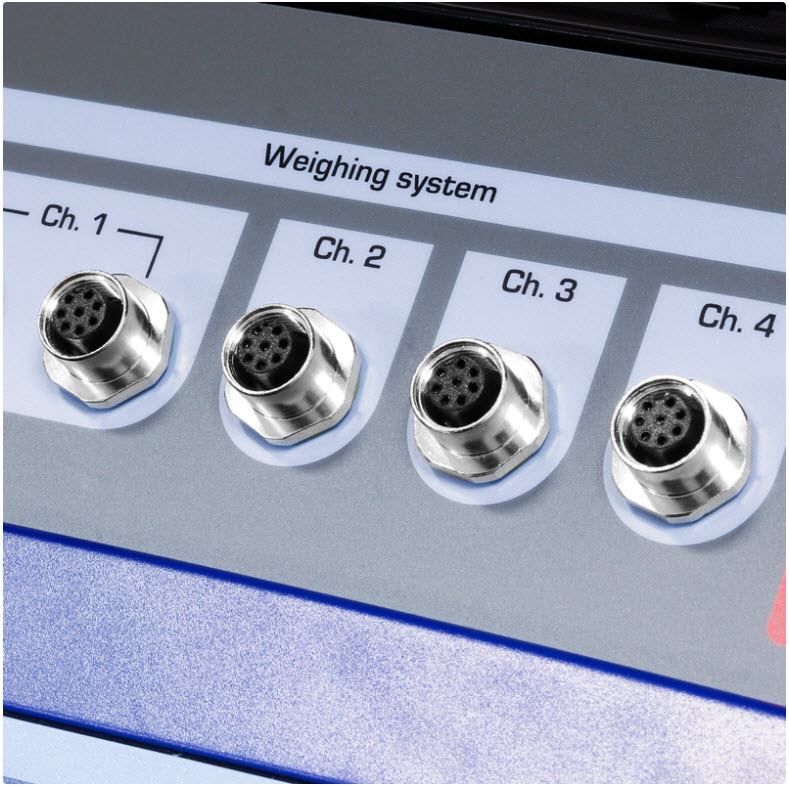

• Fitted with 4 connectors for connection to 4 platforms.
• Connectable with up to 25 analogue load cells having 1000 Ohm input resistance.
• Built-in rechargeable battery (10-hour minimum operating time) with fitted external 12 Vdc / 230 Vac adapter.

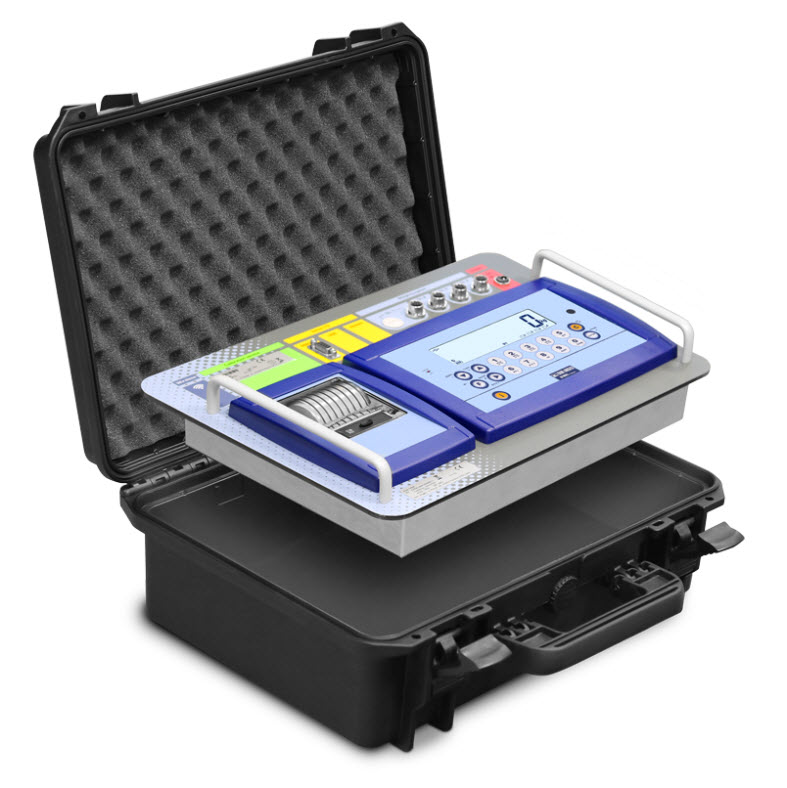

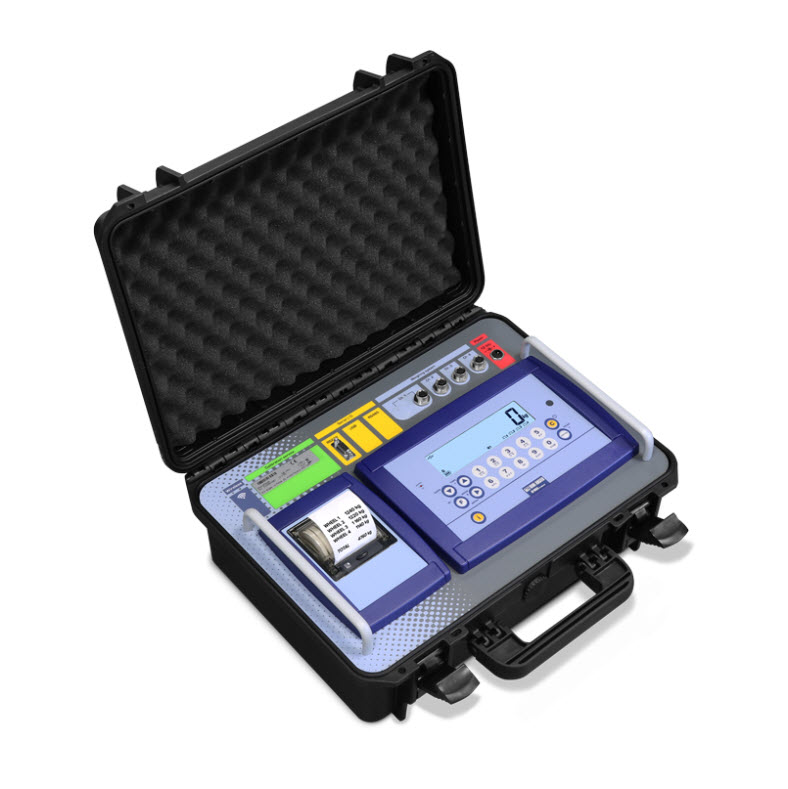

• Fitted with thermal printer, time/date, case for housing indicator and with space for other accessories.
• Dimensions: 325x460x170 mm; Total weight: about 5 kg.

I/O SECTION

• Available on the panel:

– 1 RS232/C (or optionally RS485) bi-directional 9-pin port for PC.

• Available in the indicator:

– 1 RS232/C port configurable for connection with printer.

KEYBOARD AND PRINTING FUNCTIONS

KEYBOARD:

• Zero cycle on all the connected platforms.
• Visualisation of the weight of each single platform, of the total weight or of any combination of the platforms.
• Visualisation of the weight of each axle (rms) and of the total weight.
• Simple vehicle weighing with printing of the weights of each single wheel and of the total weight.
• Totalisation of Tractor + Trailer, with printing of the subtotals and of the vehicle total.
• Static axle totalisation, with printing of the weight of each single axle and of the vehicle total.
• Simple input/output.
• Input/Output with axle totalisation.
• Grand total of the weighed vehicles.
• Calculation and printing of the barycentre.

PRINTING:

Configurable print layout with:

• 4 header lines.
• Weight of each single platform and sum of any their combination.
• Total vehicle weight.
• Grand total of weighed vehicles.
• Vehicle barycentre coordinates.
• Ticket number.
• Weighs number.
• Code 39 bar code.
• Date and time.

FROM REMOTE CONTROL:

• Infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off.
• Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.
