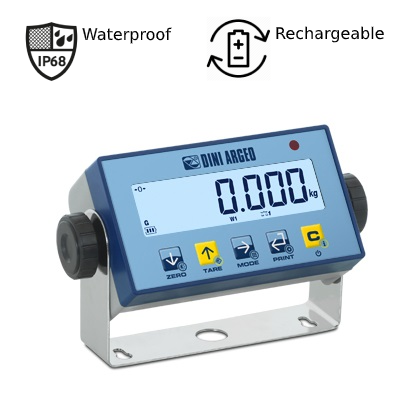

Dini Argeo, Waterproof Weighing Indicator – DFWLB (IP68)

1,670.00 AED (Excl. VAT)

Waterproof IP68 digital weighing indicator for industrial environments, easy to install, and use. The IP68 protection degree and the built-in long-life battery make it particularly suitable for automotive and mobile weighing applications. Standard fitted with a support bracket with adjustable inclination. CE-M approvable (OIML R-76 / EN 45501).

Made in Italy

Part No.: DFWLBUK (IP68 DFWLB-3 weight indicator with a built‐in rechargeable battery. ABS case, 5‐key keypad, backlit LCD display. Power supply cord with BS1363 plug/ UK-plug)

Optional firmware: DFWPK; Program for detecting weight peaks or kg to N conversion

Description

Main Features

  • 5-key functional waterproof keypad.
  • Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.
  • Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.
  • Suitable for use on the table, column, or wall.
  • Fitted with fixing bracket with adjustable inclination.
  • A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.
  • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved versions for legal for trade use.
  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
  • Digital calibration and Set-Up from the keypad or from PC through DINITOOLS.
  • Power supply through the built-in rechargeable battery, with 60h operating time, and fitted with external battery charger (to not use as power adaptor).



I/O Section

  • RS232/C bidirectional port on RJ11 connector for quick connection (optional RS485) on screw terminal, configurable for PC, PLC, or additional remote display.
  • RS232/C bidirectional port is configurable for connection to printer or labeler.



Selectable Function Modes

The user can select the operating modes directly using the dedicated key*:

  • High-resolution display x 10
  • Precision weighing with temporary recalibration via a sample weight (for internal factory use)
  • Net/Gross
  • Lb to Kg converter
  • Free conversion factor (for meter and liter counters etc.)
  • Weight totalizer
  • Formulizer
  • +/- controller with quick target and threshold input
  • Percentage weighing
  • Piece counter
  • Hold

The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board.



Optional functions:

  • PEAK, detection of weight peaks (code DFWPK)
  • Newton to Kg converter (code DFWPK)

Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint, and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.

Brand

Dini Argeo
