Brand:

Dini Argeo, “WWSD” Wheel Weighing Pads – 900 x 500mm

7,900.00 AED8,700.00 AED

WWSD6T-2, 900x500x58, 6000, 2, 0,2
7,900.00 AED

Available on backorder

WWSD10T-2, 900x500x58, 10000, 5, 0,5
7,990.00 AED

Available on backorder

WWSD15T-2, 900x500x58, 15000, 5, 0,5
8,600.00 AED

Available on backorder

WWSD20T-2, 900x500x58, 20000 (15000**), 10, 1
8,700.00 AED

Available on backorder

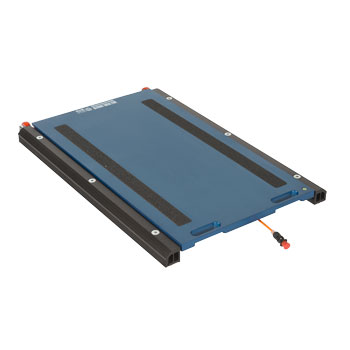

Pads designed to create weighing stations for large-sized vehicles fitted with twinned wheels or large-sized tires (articulated lorries, tractor-trailers, building yard vehicles, etc.); fitted with integrated wheels for easy transport and positioning. Particularly suitable for dynamic weighing.

GET QUOTATION

Brand:

Dini Argeo, “WWSD” Wheel Weighing Pads – 900 x 500mm

7,900.00 AED8,700.00 AED

WWSD6T-2, 900x500x58, 6000, 2, 0,2
7,900.00 AED

Available on backorder

WWSD10T-2, 900x500x58, 10000, 5, 0,5
7,990.00 AED

Available on backorder

WWSD15T-2, 900x500x58, 15000, 5, 0,5
8,600.00 AED

Available on backorder

WWSD20T-2, 900x500x58, 20000 (15000**), 10, 1
8,700.00 AED

Available on backorder

Pads designed to create weighing stations for large-sized vehicles fitted with twinned wheels or large-sized tires (articulated lorries, tractor-trailers, building yard vehicles, etc.); fitted with integrated wheels for easy transport and positioning. Particularly suitable for dynamic weighing.

GET QUOTATION

Modell x w x h (mm)Max (kg)d (kg)d HR (kg)*Price
WWSD6T-2900x500x58600020,27,900.00 AED
WWSD10T-2900x500x581000050,57,990.00 AED
WWSD15T-2900x500x581500050,58,600.00 AED
WWSD20T-2900x500x5820000 (15000**)1018,700.00 AED

FEATURES

  • Pad dimensions: 900x611mm. Height 58mm. Weight approximately 41,5kg.
  • Loading surface: 900x500mm.
  • Dual handle for easy handling.
  • Fitted with wheels for pad transport.
  • Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working
  • conditions.

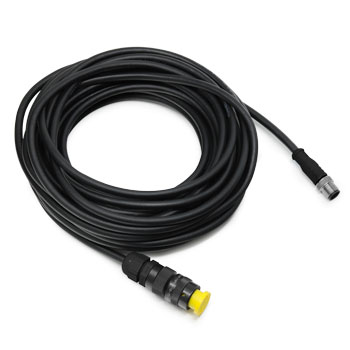

  • 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
  • IP68 stainless steel load cells.
  • Hermetic junction box with IP68 protection rate.
  • Special vulcanised nonslip rubber applied under the pad for good grip on all surfaces.
  • Extremely simple and reliable connection of the scale to the weight indicator.
  • The WWS pads are patented; the number is 1.342.302.
  • Available in legal for trade approved version.
  • Available in high resolution version.
  • Available upon price estimate in Atex version for 1&21 e 2&22 zones.

Additional information

Model

WWSD6T-2, WWSD10T-2, WWSD15T-2, WWSD20T-2

l x w x h (mm)

900x500x58

Max (kg)

6000, 10000, 15000, 20000 (15000**)

d (kg)

2, 5, 10

d HR (kg)*

0,2, 0,5, 1

Material
