Dini Argeo “AF08”: Software for 3590E indicators for Static Axle/Wheel Weighing with Various Pads

0.00 AED (Excl. VAT)

Suitable for creating wheel weighing and static axle weighing systems, or to weigh objects with various resting points. Ideal for weighing and calculating the centre of gravity coordinates of the vehicles, trucks, airplanes, containers, etc. Simultaneous display of the weight of each connected pad and of the sum. CE-M approved (OIML R-76 / EN 45501).

  • 15 configurable and printable text ID`s containing 32 characters.
  • Database of 1000 storages, with programmable modification password.
  • Completely configurable keyboard functions.
  • Programmable printout from keyboard or from PC (through the free Dinitools.net software) of 30 print formats
  • Alibi memory for automatic storage of the total weight of the vehicle (only for wheel-weighing mode).
  • Print and display list of last 3500 vehicles (in wheel weighing mode) or 3500 axles (in axle weighing mode), with possibility of cancellation.

Description

  • Clearing cycle of all the connected pads.
  • Wheel weighing multi scale functioning mode, with up to 16 connectable 350-Ohm load cells and up to 4 independent reading channels available (for 4 pads).
  • Static axle weighing functioning mode, up to 2 reading channels, with manual acquisition of the weight of each axle through dedicated key.

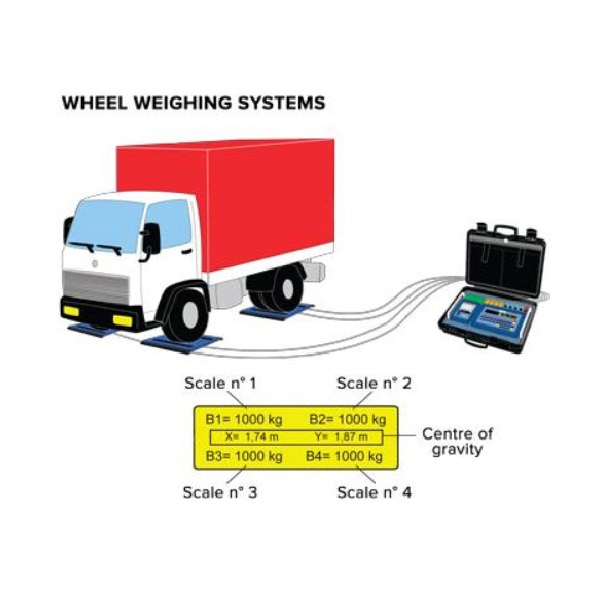

  • Calculation of the x and y coordinates of the centre of gravity (for wheel weighing mode).
  • Cancellation of the last weigh made.
  • Quick selection of the number of active reading channels of the weight (up to 4, independent), for configuring the instrument depending on the number of resting points of the vehicle to be weighed.
  • 3 zeroable total levels and printable in an independent way:
    – vehicle total
    – vehicles’ total
    – grand total.
  • Semi-automatic tare (for wheel weighing mode).
  • Presettable tare, subtracted from the sum weight of the single wheels in the wheel-weighing mode or from the total weight of the vehicle in the axle-weighing mode.
  • Selection of displayed data on the graphic LCD display (totals, progressives, weight…).
  • Simultaneous display of the weight on each pad (up to 4 independent channels) and of the total weight.
  • Thanks to the 3590EKRseries indicator combined with a radio module, it is possible to manage up to 16 WWSRF pads fitted with built-in radio module, with database management and calculation of the center of gravity.

Brand

Dini Argeo

Additional information

Model

AF08

Description

SOFTWARE FOR 3590E INDICATORS FOR WHEEL WEIGHING SYSTEMS WITH VARIOUS PADS
