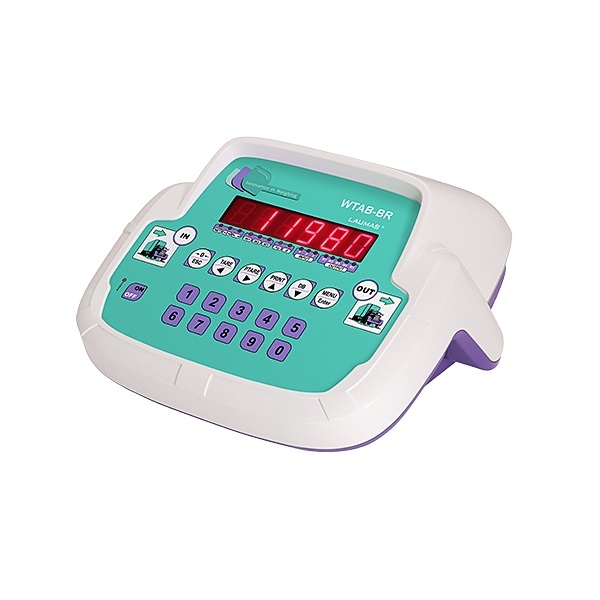

Laumas WTAB-BR Weighbridge (Truck Scale) Weight Indicator

0.00 AED (Excl. VAT)

  • Ergonomic design, ideal for desk mounting
  • Six-digit red LED display, 20 mm height

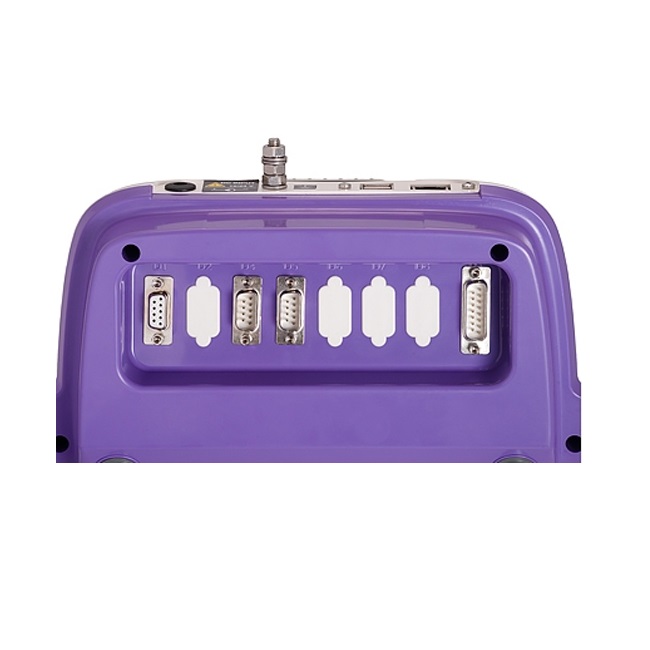

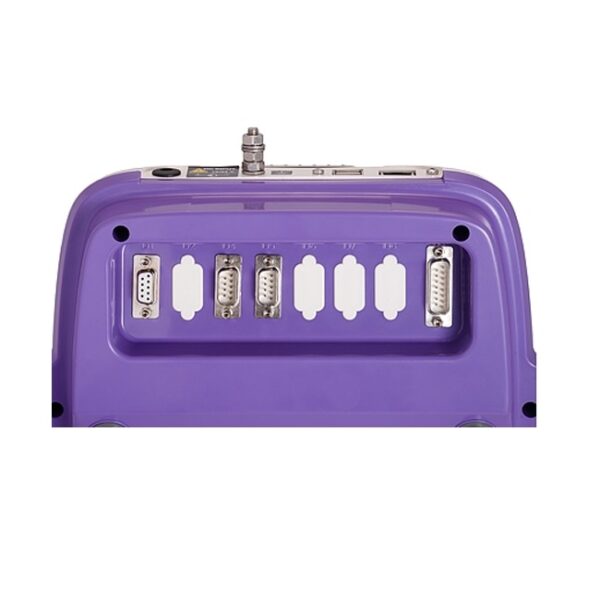

  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.

Description

Features:

ABS Weight Indicator, dimensions 315 x 315 x 170 mm. IP40 protection rating (D-SUB connectors). 19-key membrane keyboard. 16 indicator led. Real time clock/calendar.

  • Ideal for desk mounting, ergonomic design
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 4 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

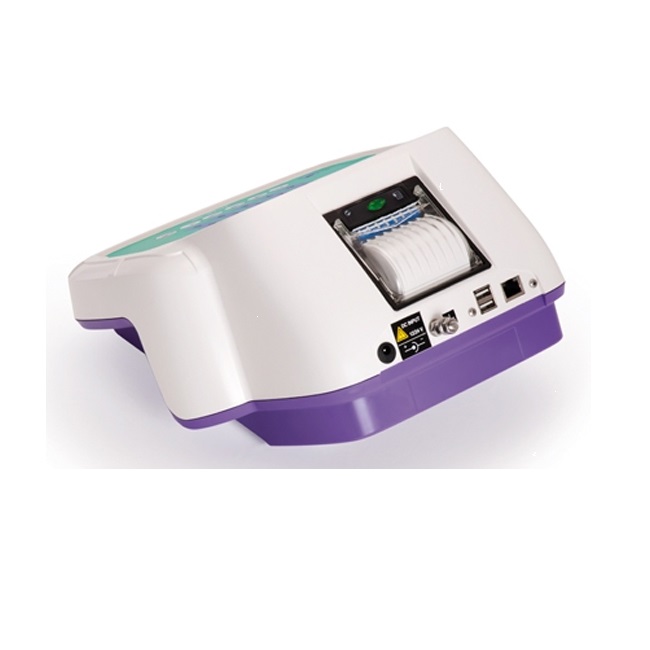

  • Integrated thermal printer (optional). Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT. Other models on request
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

Some optional features:

  • Alibi memory (up to 10000 weighed values storable)
  • Integrated thermal printer



CERTIFICATIONS:

  • OIML R76:2006, class III, 3×10000 divisions, 0.2 μV/VSI / OIML R61 – WELMEC Guide 8.8:2011 (MID)
  • UL Recognized component – Complies with the United States and Canada standards
  • Complies with the Eurasian Custom Union standards
  • CERTIFICATIONS ON REQUEST
    Conformity assessment (initial verification) in combination with Laumas weighing module
    Support for metric label (dimensions: 124x77x1.5 mm)
    NMI Trade Approved – Complies with the Australian standards for legal use with third parties
    Complies with the regulations of the Russian Federation for legal use with third parties

Brand

Laumas

Additional information

Model

WTAB-BR

Description

Laumas – Weighing Indicator
