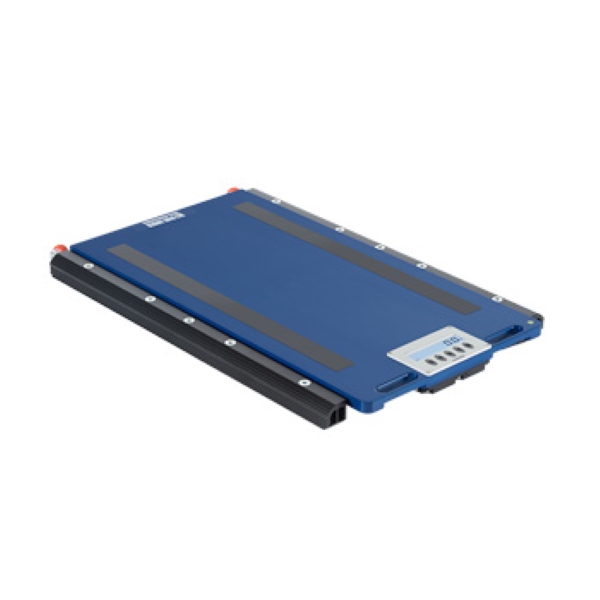

Dini Argeo, “WWSCRF”: Wireless Wheel and Axle Weighing Pads – 564x511mm

Wireless pads designed for creating wheel and axle vehicle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator. Pads designed for creating weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.

Product Variations

No. Thumbnail System Reference Platform Size Platform Capacity Stock Quantity Price
No. Thumbnail System Reference Platform Size Platform Capacity Stock Quantity Price

Description

  • Pad dimensions: 564x511mm. Height 58mm. Weight approximately 18kg.
  • Transit area: 403 x 400 mm.
  • Very handy.
  • Sturdy structure, made in special aluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
  • Stainless steel load cells.
  • Overall IP68 protection.
  • Sturdy built-in weight indicator with waterproof keyboard and backlit display.
  • Built-in radio module for weight transmission to a remote indicator or external device.
  • Integrated wheels for easy transport and positioning.
  • Power supply: internal rechargeable battery (about 40 h battery life) and charger included (to not use as power adaptor).
  • Special vulcanized nonslip rubber applied under the pad, for good grip on all types of surfaces.
  • The WWS pads are patented; the number is 1.342.302.
  • Available in legal for trade approved version.
  • Available in high resolution version.

Brand

Dini Argeo

Additional information

Weight N/A
Dimensions N/A
System Reference

WWSC1.5TRF-3, WWSC3TRF-3, WWSC6TRF-3, WWSC10TRF-3, WWSC15TRF-3

Number of Platforms

2, 4, 6, 8

Platform Size

Loading surface: 565x400mm

Platform Capacity

1.5 ton, 3 ton, 6 ton, 10 ton, 15 ton
