Brand:

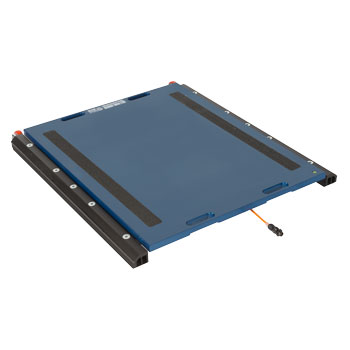

Dini Argeo, "WWSF" Portable Wheel Weighing Pads - 900x811mm

Categories: ,

Call for price

Pads designed to create weighing stations for large sized vehicles fitted with twinned wheels (articulated lorries, tractor-trailers, building yard vehicles, etc.); fitted with handles on both sides for easing the transport and the positioning. Particularly suitable for dynamic weighing.

WWSF10T-2, Loading surface: 900x700mm, 10 ton
Call for price
WWSF15T-2, Loading surface: 900x700mm, 15 ton
Call for price
WWSF20T-2, Loading surface: 900x700mm, 20 ton
Call for price
WWSF25T-2, Loading surface: 900x700mm, 25 ton
Call for price
GET QUOTATION

Brand:

Dini Argeo, "WWSF" Portable Wheel Weighing Pads - 900x811mm

Categories: ,

Call for price

Pads designed to create weighing stations for large sized vehicles fitted with twinned wheels (articulated lorries, tractor-trailers, building yard vehicles, etc.); fitted with handles on both sides for easing the transport and the positioning. Particularly suitable for dynamic weighing.

WWSF10T-2, Loading surface: 900x700mm, 10 ton
Call for price
WWSF15T-2, Loading surface: 900x700mm, 15 ton
Call for price
WWSF20T-2, Loading surface: 900x700mm, 20 ton
Call for price
WWSF25T-2, Loading surface: 900x700mm, 25 ton
Call for price
GET QUOTATION

System ReferencePlatform SizePlatform CapacityPrice
System Reference: WWSF10T-2Platform Size: Loading surface: 900x700mmPlatform Capacity: 10 tonPrice: Call for price
System Reference: WWSF15T-2Platform Size: Loading surface: 900x700mmPlatform Capacity: 15 tonPrice: Call for price
System Reference: WWSF20T-2Platform Size: Loading surface: 900x700mmPlatform Capacity: 20 tonPrice: Call for price
System Reference: WWSF25T-2Platform Size: Loading surface: 900x700mmPlatform Capacity: 25 tonPrice: Call for price
  • Pad dimensions: 900x811mm. Height 75mm. Weight approximately 67kg.
  • Loading surface: 900x700mm.
  • Fitted with double handles on both sides for easy handling.
  • Fitted with wheels for pad transport.
  • Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
  • 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
  • IP68 stainless steel load cells.
  • Hermetic junction box with IP68 protection rate.
  • Special vulcanised nonslip rubber applied under the pad for good grip on all surfaces.
  • Extremely simple and reliable connection of the scale to the weight indicator.
  • The WWS pads are patented; the number is 1.342.302.
  • Available in legal for trade approved version.
  • Available in high resolution version.
  • Available upon price estimate in Atex version for 1&21 e 2&22 zones.


Additional information

Weight N/A
Dimensions N/A
System Reference

WWSF10T-2, WWSF15T-2, WWSF20T-2, WWSF25T-2

Number of Platforms

2, 4, 6, 8

Platform Size

Loading surface: 900x700mm

Platform Capacity

10 ton, 15 ton, 20 ton, 25 ton
