Brand:

FXC SERIES BENDING BEAM LOAD CELLS

Categories:

Call for price

Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price

120

  • LED display, 0.8in (20.3mm) six-digit, seven-segment
  • Configurable analog to digital measurement rate
  • Power for four 350ohm load cells
  • Primary/secondary units configuration: lb, kg, ounces, grams
  • Five-button operation
  • Two independent communication ports: (1) full duplex, (1) unidirectional or active 20mA current loop
  • Standardized EDP command sets
  • Programmable ticket format up to two 180-character printout
  • Full front-panel digital calibration and configuration
  • Tilt stand
  • Three-stage digital filtering
  • Consecutive transaction numbering
  • Time and date (volatile)



120 Plus

  • LCD display, 0.8in (20.3mm) six-digit, seven-segment
  • Internal rechargeable lithium battery and wall adapter
  • Power save feature for 700 hours of battery life
  • Ten stored tare values
  • Display hold (based on three second average)
  • Time and date
  • Configurable with Revolution® software
GET QUOTATION

Brand:

FXC SERIES BENDING BEAM LOAD CELLS

Categories:

Call for price

Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price

120

  • LED display, 0.8in (20.3mm) six-digit, seven-segment
  • Configurable analog to digital measurement rate
  • Power for four 350ohm load cells
  • Primary/secondary units configuration: lb, kg, ounces, grams
  • Five-button operation
  • Two independent communication ports: (1) full duplex, (1) unidirectional or active 20mA current loop
  • Standardized EDP command sets
  • Programmable ticket format up to two 180-character printout
  • Full front-panel digital calibration and configuration
  • Tilt stand
  • Three-stage digital filtering
  • Consecutive transaction numbering
  • Time and date (volatile)



120 Plus

  • LCD display, 0.8in (20.3mm) six-digit, seven-segment
  • Internal rechargeable lithium battery and wall adapter
  • Power save feature for 700 hours of battery life
  • Ten stored tare values
  • Display hold (based on three second average)
  • Time and date
  • Configurable with Revolution® software
GET QUOTATION

modelPrice
FXC10-1Call for price
FXC20-1Call for price
FXC50-1Call for price
FXC100-1Call for price
FXC200-1Call for price
FXC300-1Call for price
FXC500-1Call for price

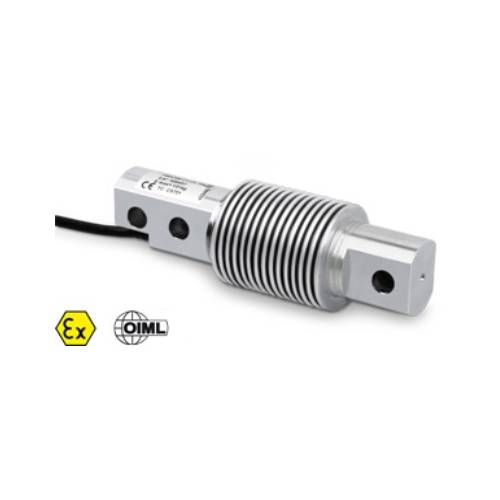

Bending beam load cells for approved weighing, automatic systems, dosage.

CAPACITIES (kg): 10, 20, 50, 100, 200, 300, 500.

OIML R60. C3 precision class.

Stainless steel. IP68 protection.



MAIN FEATURES

  • C3 PRECISION CLASS
  • STAINLESS STEEL
  • IP68 PROTECTION
  • MAX. CAPACITIES FROM 10 TO 500 kg
  • SHIELDED CONNECTION CABLE
  • OIML CERTIFICATE AVAILABLE UPON REQUEST
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



TECHNICAL FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC= 3000
  • Full Scale Output: 2mV/V ± 1%
  • Combined error: 0,017% of Full Scale Output (F.S.)
  • Non-Repeatability: 0,015% F.S.
  • Temperature effect on zero: ± 0,0014% /°C
  • Temperature effect on full scale output: ± 0,0014% /°C
  • Compensated Temperature Range: –10°C/+40°C
  • Operating Temperature Range: –20°C/+60°C
  • Creep error after 30 minutes ± 0,025% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 385 ± 20 Ohm
  • Output Resistance: 350 ± 5 Ohm
  • Insulation Resistance: > 5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 200% F.S.
  • Nominal displacement: < 0,4 mm
  • 4-wire shielded cable, 3m long, 4mm diameter.



ATEX VERSION

  • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
    The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
  • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.



Wiring Code
Colour Function
SHIELD
BLACK OUTPUT +
RED INPUT +
BLUE OUTPUT –
WHITE INPUT –



Additional information

model

FXC10-1, FXC20-1, FXC50-1, FXC100-1, FXC200-1, FXC300-1, FXC500-1
