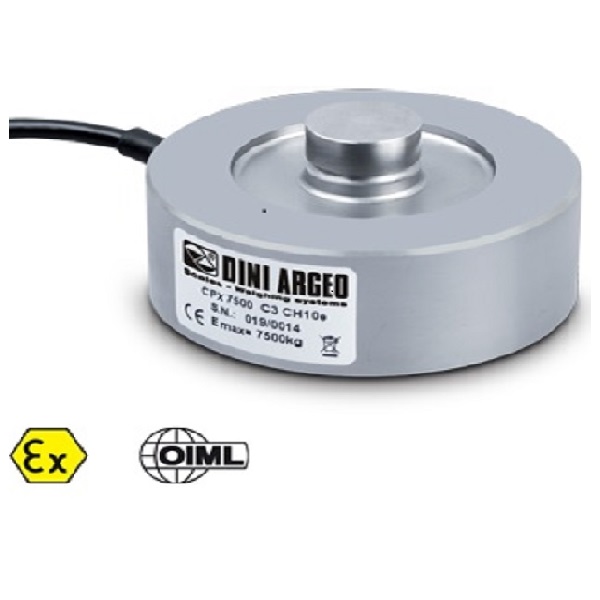

Dini Argeo CPX Load Cell – Compression & Ring Torsion (RTN) Type

Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.

  • Capacities from 250 TO 100000 kg
  • CE-M C3 approved, from 2500 to 12500 kg
  • Low Profile
  • Great resistance to lateral forces
  • Stainless steel construction
  • IP68 protection, IP69K upon request
  • Shielded connection cable

Product Variations

No. Thumbnail Model Capacity Stock Quantity Price
No. Thumbnail Model Capacity Stock Quantity Price

Description

  • Minimum load cell verification interval: Vmin = EMax / 10000
  • Full Scale Output: 2mV/V +/- 0,5%
  • Non-Repeatability: 0,01% F.S.
  • Combined Error 0,05%
  • Temperature effect on zero: 0,02% / 10°C
  • Temperature effect on full scale output: 0,02% / 10°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Maximum tolerated excitation voltage: 15 Vdc
  • Input Resistance: 750 ± 10 Ohm
  • Output Resistance: 700 ± 5 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 120% F.S.
  • 4-wire shielded cable, 5 mm diameter:
    • 5 m long for CPX 250…5000 versions;
    • 10 m long for CPX 7500…100000 versions.



Applications

Tanks and hoppers

Brand

Dini Argeo

Additional information

Model

CPX 500, CPX 1000, CPX 2500, CPX 5000, CPX 10000, CPX 15000, CPX 30000, CPX 50000, CPX 100000

Capacity

500 Kg, 1000 Kg, 2500 Kg, 5000 Kg, 10000 Kg, 15000 Kg, 30000 Kg, 50000 Kg, 100000 Kg
