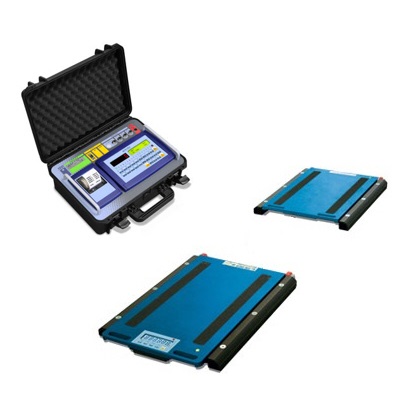

Dini Argeo, Wireless Portable Axle and Wheel Weigher – WWSD-RF ENTERPRISE
46,000.00 AED – 86,000.00 AED (Excl. VAT)
Product Variations
No. | Thumbnail | System Reference | Number of Platforms | Platform Size | Platform Capacity | System capacity | Stock | Quantity | Price | |
---|---|---|---|---|---|---|---|---|---|---|
1 | WWSDRF ENTERPRISE 4 | 4 | Loading Surface: 950x500mm | 20 Ton (each) | 80 Ton (20x4) | In Stock |
46,000.00 AED | Add to cart | ||
2 | WWSDRF ENTERPRISE 6 | 6 | Loading Surface: 950x500mm | 20 Ton (each) | 120 Ton (20x6) | In Stock |
66,000.00 AED | Add to cart | ||
3 | WWSDRF ENTERPRISE 8 | 8 | Loading Surface: 950x500mm | 20 Ton (each) | 160 Ton (20x8) | In Stock |
86,000.00 AED | Add to cart | ||
No. | Thumbnail | System Reference | Number of Platforms | Platform Size | Platform Capacity | System capacity | Stock | Quantity | Price |
Description

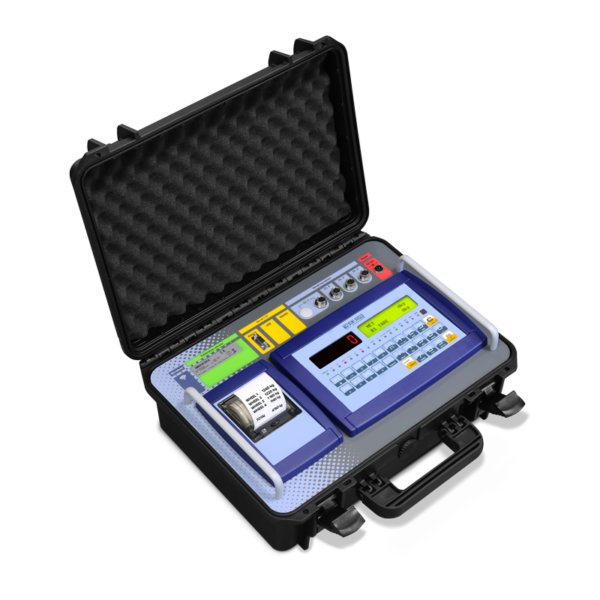

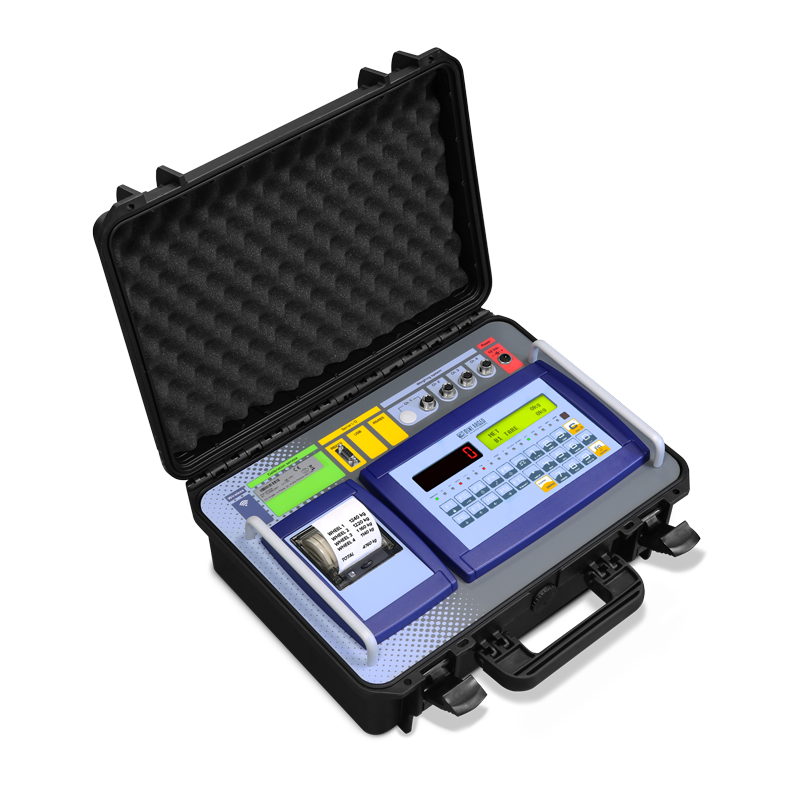

Indicator | Model: 3590EKR “ENTERPRISE” + Wireless built-in 868 MHz radiofrequency module
Multifunction high-performance digital weight indicator in Rack version, complete with 4 connectors for linking the platforms, built-in rechargeable battery with charger, and case. Particularly suitable for mobile weighing applications. CE-M approvable (OIML R-76 / EN 45501).
- ABS transport case, with housing for the indicator and space for extra accessories.
- 3590EXP series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for the printer, connectors for platforms, and serial output on 9-pole connector.
- Dimensions: 325x460x170 mm. Weight: about 5 kg.
- 25-key alphanumerical waterproof keyboard.
- Highly efficient red led display with 6 digits 15mm high.
- Backlit LCD graphic 25x100mm display.
- Synoptic bar graph with 16 bright LEDs showing the active functions.
- Permanent time/date and data storage.
- Fitted with alibi memory.
- Functions available with the DINITOOLS utility:
– Configuration, calibration, data entry, and print formatting.
– Recording and filing of all the information on PC, complete with the calibration data of each instrument.
– Complete retrieval of the data saved for quick substitution.
– Instrument calibration with numeric values. - Selection of the programming language directly in the set-up.
- 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
- Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
- Fitted with 4 connectors for connection up to 4 platforms with AF08 software (up to 2 with AF03, 1 with AF09).
- Connectable with up to 16 analog 350-Ohm (or 45 1000-Ohm) load cells.
- Connectable with the main digital load cells available on the market.
- Built-in rechargeable battery (10-hour minimum operating time) with fitted external 12 Vdc / 230 Vac adapter.
- fitted with an attached thermal receipt printer.

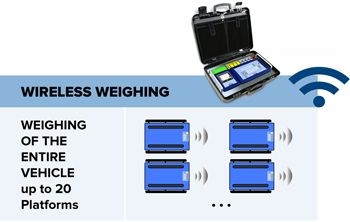

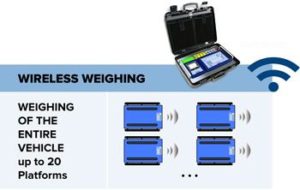

Can be connected to up to 20 wheel weighing pads when its equipped with the wireless transmitter |

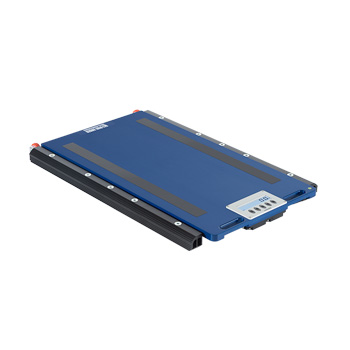

Platform | Model: WWSD20TRF-6 (20 ton
- Pad dimensions: 950x611mm. Height 59mm. Weight approximately 46kg.
- Loading surface: 950x500mm.
- Very handy.
- Sturdy structure, made in special aluminum, which guarantees lightness and makes these pads suitable also for harsh working conditions.
- Stainless steel load cells.
- Overall IP68 protection.
- Sturdy built-in weight indicator; protected IP68 hermetic box.
- Built-in radio module for weight transmission to a remote indicator or external device.
- Integrated wheels for easy transport and positioning.
- Power supply: internal rechargeable battery (about 40 h battery life), kept in the hermetic box, and charger included (to not use as power adaptor).
- Special vulcanized nonslip rubber applied under the pad, for good grip on all types of surfaces.
- The WWS pads are patented; the number is 1.342.302.
- Available in legal for trade approved version.
- Available in high-resolution version.

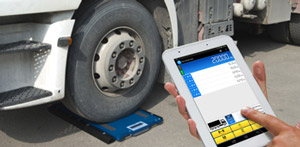

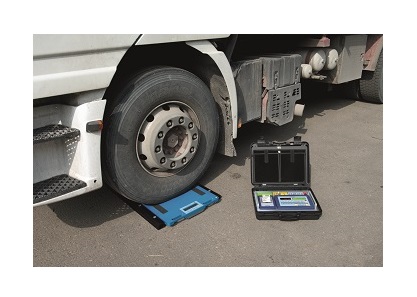

In the example, an application with a wireless pad, WWSDUAL option, analog pad, Bluetooth BLTH, and DINI SMART AXLE weighing App. |
Brand
Dini Argeo
Additional information
System Reference | WWSDRF-ENTERPRISE 4, WWSDRF-ENTERPRISE 6, WWSDRF-ENTERPRISE 8 |
---|---|
Number of Platforms | 4, 6, 8 |
Platform Size | Loading surface: 950x500mm |
Platform Capacity | 20 ton (each) |
System capacity | 80 ton (20×4), 120 ton (20×6), 160 ton (20×8) |
