Brand:

“PLX1K-1” SERIES’ 1000 Ohm LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES

Call for price

Call for price
Call for price
Call for price

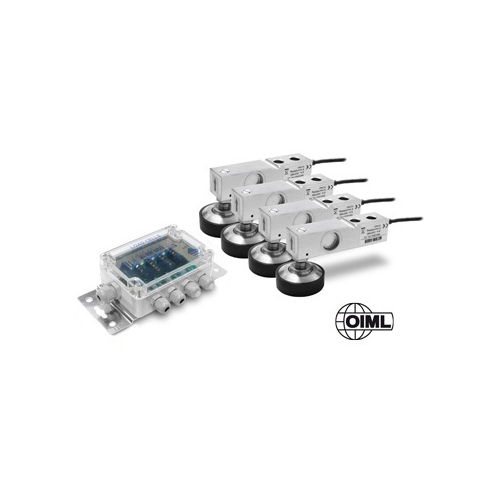

Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 1000 Ohm IP68 stainless steel load cells, OIML approved, together with adjustable stainless steel resting feet and an equalisation box.

LOAD CELL TECHNICAL FEATURES

  • C3 precision class
  • Made in stainless steel with laser welding
  • IP68 protection against dust and water.
  • Capacities from 500 to 2000 kg (for each cell)
  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC = 3000
  • Combined error: 0,017% of Full Scale Output (F.S.)
  • Full Scale Output: 2mV/V +/- 0.5%
  • Temperature effect on zero: 0,002% /°C
  • Temperature effect on full scale output: 0,002% /°C
  • Compensated Temperature Range: -10°C/+50°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Maximum tolerated excitation voltage: 15 Vdc
  • Input Resistance: 1100 ± 20 Ohm
  • Output Resistance: 1000 ± 20 Ohm
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 300% F.S.

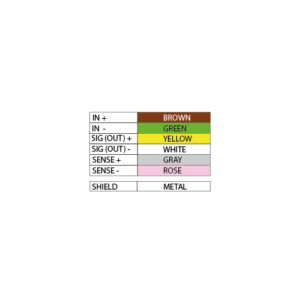

  • 6-wire shielded cable, 5m long, 5 mm diameter
GET QUOTATION

Brand:

“PLX1K-1” SERIES’ 1000 Ohm LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES

Call for price

Call for price
Call for price
Call for price

Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 1000 Ohm IP68 stainless steel load cells, OIML approved, together with adjustable stainless steel resting feet and an equalisation box.

LOAD CELL TECHNICAL FEATURES

  • C3 precision class
  • Made in stainless steel with laser welding
  • IP68 protection against dust and water.
  • Capacities from 500 to 2000 kg (for each cell)
  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC = 3000
  • Combined error: 0,017% of Full Scale Output (F.S.)
  • Full Scale Output: 2mV/V +/- 0.5%
  • Temperature effect on zero: 0,002% /°C
  • Temperature effect on full scale output: 0,002% /°C
  • Compensated Temperature Range: -10°C/+50°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Maximum tolerated excitation voltage: 15 Vdc
  • Input Resistance: 1100 ± 20 Ohm
  • Output Resistance: 1000 ± 20 Ohm
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 300% F.S.
  • 6-wire shielded cable, 5m long, 5 mm diameter
GET QUOTATION

ModelDescriptionPrice
PLX1K420C3-1Kit 4 x SBX2000-1KL, 4 x KSB2FI-1, 1 x JB4Q (4 IP68 stainless steel load cells with 2000 kg capacity, 4 stainless steel adjustable resting feet, stainless steel M12 bush and IP67 ABS equalization box).Call for price
PLX1K410C3-1Kit 4 x SBX1000-1KL, 4 x KSB2FI-1, 1 x JB4Q (4 IP68 stainless steel load cells with 1000 kg capacity, 4 stainless steel adjustable resting feet and IP67 ABS equalization box).Call for price
PLX1K405C3-1Kit 4 x SBX500-1KL, 4 x KSB2FI-1, 1 x JB4Q (4 IP68 stainless steel load cells with 500 kg capacity, 4 stainless steel adjustable resting feet and IP67 ABS equalization box).Call for price

RESTING FEET

  • Adjustable in height
  • Structure in STAINLESS steel
  • Anti-slip base
  • Ipersanitizable
  • Fitted with locking bush

JUNCTION BOX

  • Built-in junction and equalisation board
  • IP67 protection from dust and water
  • 5 PG9 Cable glands
