Brand:

“PLT” SERIES’ 350 Ohm NIKEL-PLATED LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES

Categories: ,

Call for price

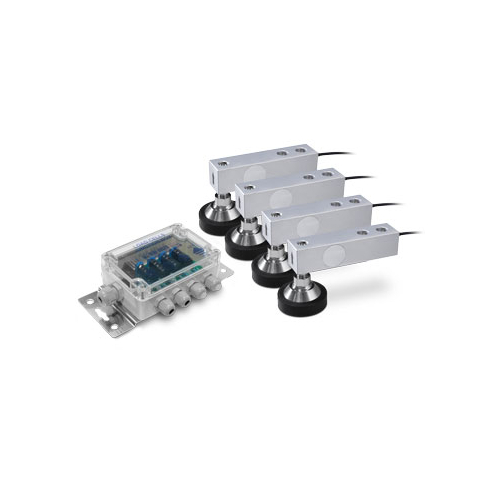

Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 350 Ohm IP67 nikel-plated load cells, OIML and NTEP approved, together with adjustable resting feet and an equalisation box.

LOAD CELL TECHNICAL FEATURES

  • Minimum load cell verification interval Vmin = EMax / 10.000
  • Maximum number of verification intervals nLC = 3000
  • Combined error 0,017% of Full Scale Output (F.S.)
  • Nonlinearity ± 0.02% FS
  • Hysteresis ± 0.02% FS
  • Repeatability ± 0.01% FS
  • Full Scale Output 2mV/V ± 0.5%
  • Zero balance ± 1% FS
  • Compensated Temperature Range -10°C/+50°C.
  • Operating Temperature Range -20°C/+60°C.
  • Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 380 ± 20 Ohm
  • Output Resistance 350 ± 5 Ohm Insulation Resistance >5000 MOhm
  • Safe Overload 150% F.S.
  • Ultimate Overload 300% F.S.
  • 6-wire shielded cable, 3.5m long, 5 mm diameter
PLT420C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
Call for price
PLT410C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
Call for price
PLT405C3, Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
Call for price
GET QUOTATION

Brand:

“PLT” SERIES’ 350 Ohm NIKEL-PLATED LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES

Categories: ,

Call for price

Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 350 Ohm IP67 nikel-plated load cells, OIML and NTEP approved, together with adjustable resting feet and an equalisation box.

LOAD CELL TECHNICAL FEATURES

  • Minimum load cell verification interval Vmin = EMax / 10.000
  • Maximum number of verification intervals nLC = 3000
  • Combined error 0,017% of Full Scale Output (F.S.)
  • Nonlinearity ± 0.02% FS
  • Hysteresis ± 0.02% FS
  • Repeatability ± 0.01% FS
  • Full Scale Output 2mV/V ± 0.5%
  • Zero balance ± 1% FS
  • Compensated Temperature Range -10°C/+50°C.
  • Operating Temperature Range -20°C/+60°C.
  • Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 380 ± 20 Ohm
  • Output Resistance 350 ± 5 Ohm Insulation Resistance >5000 MOhm
  • Safe Overload 150% F.S.
  • Ultimate Overload 300% F.S.
  • 6-wire shielded cable, 3.5m long, 5 mm diameter
PLT420C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
Call for price
PLT410C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
Call for price
PLT405C3, Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
Call for price
GET QUOTATION

ModelDescriptionPrice
Model: PLT420C3Description: Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).Price: Call for price
Model: PLT410C3Description: Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).Price: Call for price
Model: PLT405C3Description: Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).Price: Call for price

RESTING FEET

  • Adjustable in height
  • Nikel-plated steel structure
  • Anti-slip base
  • Ipersanitizable
  • Fitted with locking bush



JUNCTION BOX

  • Built-in junction and equalisation board
  • IP67 protection from dust and water
  • 1 PG9 Cable gland and 4 PG7 Cable glands

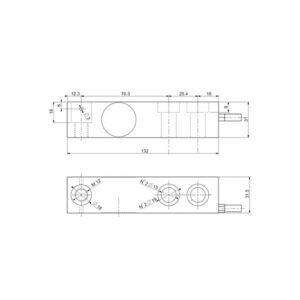

DIMENSIONS – DECODING STANDARD CABLE

  • NOTE: dimensions in mm

Decoding of the standard cable colours

Additional information

Model

PLT405C3, PLT410C3, PLT420C3

Description

Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box)., Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box)., Kit 4 x SBT2000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 2000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
