Brand:

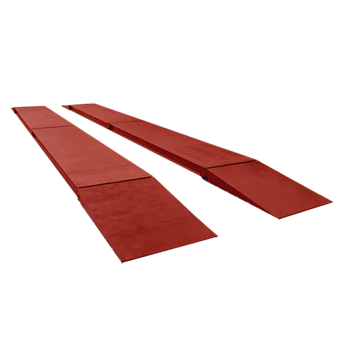

DTW “DUAL TRACK” VEHICLE WEIGHING SERIES

Categories:

Call for Price

DTW2280A-9, 2x (22,50x1,00x0,22), 80000, 50, 20/50(**), 10 bridges - 12 weighing bars
Call for Price
DTW1880A-9, 2x (18,00x1,00x0,22), 80000, 50, 20/50(**), 8 bridges - 10 weighing bars
Call for Price
DTW1860A-9, 2x (18,00x1,00x0,22), 60000, 20, 10/20(**), 8 bridges - 10 weighing bars
Call for Price
DTW1460A-9, 2x (13,50x1,00x0,22), 60000, 20, 10/20(**), 6 bridges - 8 weighing bars
Call for Price
DTW1430A-9, 2x (13,50x1,00x0,22), 30000, 10, 5/10(**), 6 bridges - 8 weighing bars
Call for Price
DTW960A-9, 2x (9,00x1,00x0,22), 60000, 20, 10/20(**), 4 bridges - 6 weighing bars
Call for Price
DTW930A-9, 2x (9,00x1,00x0,22), 30000, 10, 5/10(**), 4 bridges - 6 weighing bars
Call for Price
DTW530A-9, 2x (4,50x1,00x0,22), 30000, 10, 5/10(**), 2 bridges - 4 weighing bars
Call for Price
DTW515A-9, 2x (4,50x1,00x0,22), 15000, 5, --, 2 bridges - 4 weighing bars
Call for Price

TECHNICAL FEATURES

  • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
GET QUOTATION

Brand:

DTW “DUAL TRACK” VEHICLE WEIGHING SERIES

Categories:

Call for Price

DTW2280A-9, 2x (22,50x1,00x0,22), 80000, 50, 20/50(**), 10 bridges - 12 weighing bars
Call for Price
DTW1880A-9, 2x (18,00x1,00x0,22), 80000, 50, 20/50(**), 8 bridges - 10 weighing bars
Call for Price
DTW1860A-9, 2x (18,00x1,00x0,22), 60000, 20, 10/20(**), 8 bridges - 10 weighing bars
Call for Price
DTW1460A-9, 2x (13,50x1,00x0,22), 60000, 20, 10/20(**), 6 bridges - 8 weighing bars
Call for Price
DTW1430A-9, 2x (13,50x1,00x0,22), 30000, 10, 5/10(**), 6 bridges - 8 weighing bars
Call for Price
DTW960A-9, 2x (9,00x1,00x0,22), 60000, 20, 10/20(**), 4 bridges - 6 weighing bars
Call for Price
DTW930A-9, 2x (9,00x1,00x0,22), 30000, 10, 5/10(**), 4 bridges - 6 weighing bars
Call for Price
DTW530A-9, 2x (4,50x1,00x0,22), 30000, 10, 5/10(**), 2 bridges - 4 weighing bars
Call for Price
DTW515A-9, 2x (4,50x1,00x0,22), 15000, 5, --, 2 bridges - 4 weighing bars
Call for Price

TECHNICAL FEATURES

  • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
GET QUOTATION

ModelDimensionsCapacityDivisionDual divisionNotesPrice
DTW2280A-92x (22,50x1,00x0,22)800005020/50(**)10 bridges - 12 weighing barsCall for Price
DTW1880A-92x (18,00x1,00x0,22)800005020/50(**)8 bridges - 10 weighing barsCall for Price
DTW1860A-92x (18,00x1,00x0,22)600002010/20(**)8 bridges - 10 weighing barsCall for Price
DTW1460A-92x (13,50x1,00x0,22)600002010/20(**)6 bridges - 8 weighing barsCall for Price
DTW1430A-92x (13,50x1,00x0,22)30000105/10(**)6 bridges - 8 weighing barsCall for Price
DTW960A-92x (9,00x1,00x0,22)600002010/20(**)4 bridges - 6 weighing barsCall for Price
DTW930A-92x (9,00x1,00x0,22)30000105/10(**)4 bridges - 6 weighing barsCall for Price
DTW530A-92x (4,50x1,00x0,22)30000105/10(**)2 bridges - 4 weighing barsCall for Price
DTW515A-92x (4,50x1,00x0,22)150005--2 bridges - 4 weighing barsCall for Price

(*)NET PRICES: please contact the sales department for further information.
WARNING: the product requires special transport, with quote.
(**) Fitted with CE-M 3000e approval. The dual range CE-M 3000 + 3000e approval is optional, upon price estimated.



TECHNICAL FEATURES

  • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
  • Weight detection system through oscillating load bars (patented system) with integrated brake / acceleration compensating limits and anti-slip rubber resting plates.
  • Load cells protected from dust and water.
  • Fitted with approval, carried out in factory (to be combined with Dini Argeo indicator).
  • Dust and waterproof wirings and connections, easy to connect and disconnect.
  • Modularity: by adding or removing pairs of modules, the weighbridges can have these lengths: 4,5 m – 9 m – 13,5 m – 18 m – 22,5 (up to 36m by price estimate).
  • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the weighbridge also without an electrical power supply.
  • 30m long connection cable between DTW and indicators.



OPTIONS AND ACCESSORIES

  • Available upon request with special capacities and divisions.
  • Transport (upon price estimate).
  • Kit of on/off mobile ramps.
  • Angles of crest kit for flush floor installation or for concrete on/off ramps.
  • Dual range CE-M 3000 + 3000e approved (upon price estimate).

Additional information

Model

DTW515A-9, DTW530A-9, DTW930A-9, DTW960A-9, DTW1430A-9, DTW1460A-9, DTW1860A-9, DTW1880A-9, DTW2280A-9
Dimensions

2x (4,50×1,00×0,22), 2x (9,00×1,00×0,22), 2x (13,50×1,00×0,22), 2x (18,00×1,00×0,22), 2x (22,50×1,00×0,22)
Capacity

15000, 30000, 60000, 80000
Division

5, 10, 20, 50
Dual division

–, 5/10(**), 10/20(**), 20/50(**)
Notes

2 bridges – 4 weighing bars, 4 bridges – 6 weighing bars, 6 bridges – 8 weighing bars, 8 bridges – 10 weighing bars, 10 bridges – 12 weighing bars
