Brand:

Dini Argeo, “WWSE” Portable Wheel Weighing Pads – 700x561mm

6,500.00 AED6,700.00 AED (Excl. VAT)

WWSE6T-2, 700x450x58, 6000, 2, 0,2
6,500.00 AED (Excl. VAT)

Available on backorder

WWSE10T-2, 700x450x58, 10000, 5, 0,5
6,600.00 AED (Excl. VAT)

Available on backorder

WWSE15T-2, 700x450x58, 15000 (12500**), 5, 0,5
6,700.00 AED (Excl. VAT)

Available on backorder

Pads designed to create weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.

GET QUOTATION

Brand:

Dini Argeo, “WWSE” Portable Wheel Weighing Pads – 700x561mm

6,500.00 AED6,700.00 AED (Excl. VAT)

WWSE6T-2, 700x450x58, 6000, 2, 0,2
6,500.00 AED (Excl. VAT)

Available on backorder

WWSE10T-2, 700x450x58, 10000, 5, 0,5
6,600.00 AED (Excl. VAT)

Available on backorder

WWSE15T-2, 700x450x58, 15000 (12500**), 5, 0,5
6,700.00 AED (Excl. VAT)

Available on backorder

Pads designed to create weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.

GET QUOTATION

System Referencel x w x h (mm)Max (kg)d (kg)d HR (kg)*Price
WWSE6T-2700x450x58600020,26,500.00 AED (Excl. VAT)
WWSE10T-2700x450x581000050,56,600.00 AED (Excl. VAT)
WWSE15T-2700x450x5815000 (12500**)50,56,700.00 AED (Excl. VAT)

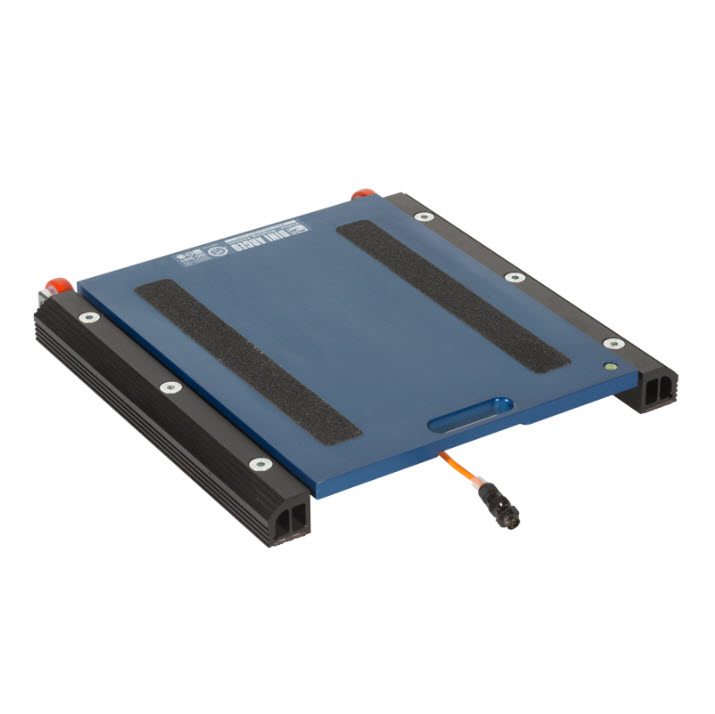

  • Pad dimensions: 700x561mm. Height 58mm. Weight approximately 26kg.
  • Loading surface: 700x450mm.
  • Double handle for easy handling
  • Fitted with wheels for pad transport.
  • Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.

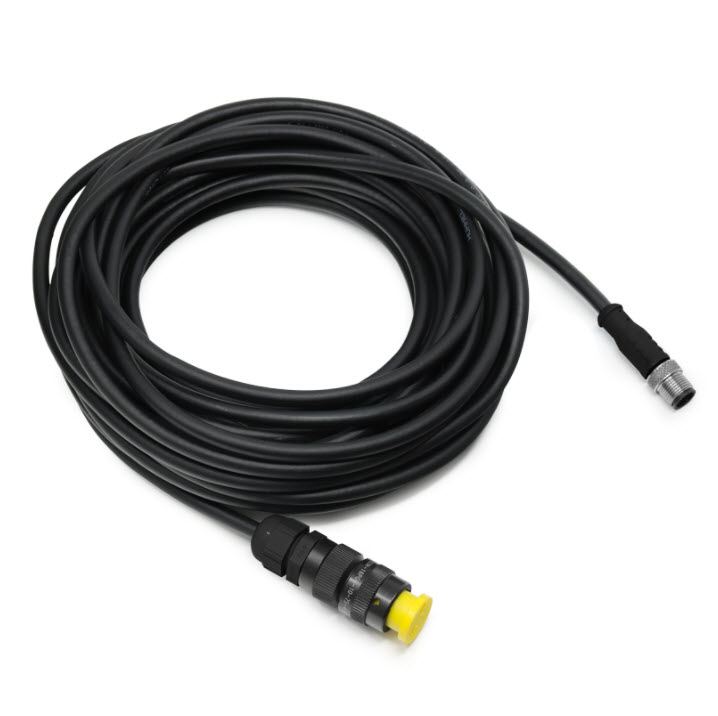

  • 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
  • IP68 stainless steel load cells.
  • Hermetic junction box with IP68 protection rate.
  • Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
  • Extremely simple and reliable connection of the scale to the weight indicator.
  • The WWS pads are patented; the number is 1.342.302.
  • Available in legal for trade approved version.
  • Available in high resolution version.
  • Available upon price estimate in Atex version for 1&21 e 2&22 zones.



Additional information

Weight N/A
Dimensions N/A
System Reference

WWSE6T-2, WWSE10T-2, WWSE15T-2

l x w x h (mm)

700x450x58

Max (kg)

6000, 10000, 15000 (12500**)

d (kg)

2, 5, 5

d HR (kg)*

0,2, 0,5

Number of Platforms

2, 4, 6, 8

Platform Size

Loading surface: 700x450mm

Placement

Material
