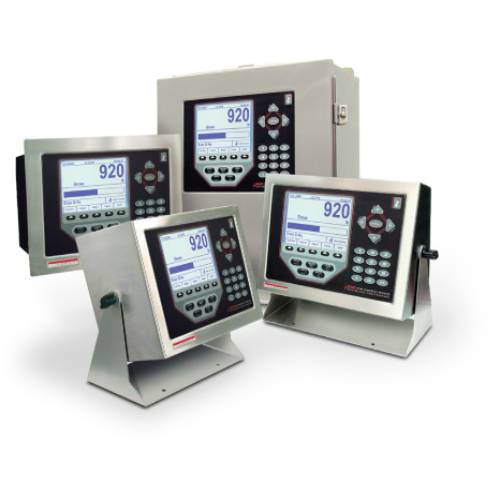

The 920i® weight indicator and process controller blends revolutionary user interfaces, total flexibility and processing performance with the simplicity of a basic weight indicator. A crisp, highly customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a virtually indestructible enclosure to create one of the industry’s most trusted weight indicators and process controllers.

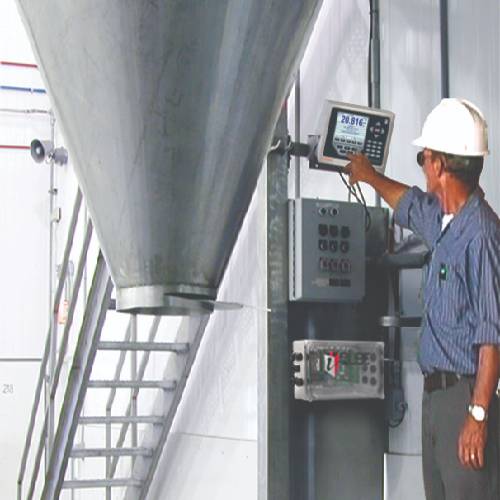

Adding an entirely new dimension in flexibility for solution providers and users alike, the 920i indicator/controller brings simplified customization at a fraction of the cost of traditional process instrumentation. From tailored basic weighing to complex process automation, the 920i gives you features, programmability and power for your process.
| Power: AC voltages: 100-240 VAC Frequency: 50-60 Hz DC voltages: 12-24 VDC Consumption: AC: 25W (universal) or 65W (others) DC: 25W for all modelsExcitation Voltage: 10 ± VDC 16 x 350Ω or 32 x 700Ω load cells per A/D card Analog Signal Input Range: Analog Signal Sensitivity: A/D Sample Rate: Resolution: System Linearity: |
Digital I/O: Six I/O channels on CPU board; Optional 24-channel I/O expansion boardsCommunication Ports: Four ports on CPU board support up to 115,200bps Port 1: Full duplex RS-232 Port 2: RS-232 with CTS/RTS; PS/2 keyboard interface or USB type A and B connectors Port 3: Full duplex RS-232, 20mA Port 4: Full duplex RS-232, 2-wire RS-485, 20mA Optional dual-channel serial expansion boards Channel A: RS-232, RS-485, 20 mA Channel B: RS-232, 20 mA Display: Keys/Buttons: |
Temperature Range: Certified: 14°F to 104°F (-10°C to +40˚C) Operating: 14°F to 122°F (-10°C to +50˚C)Weight: Universal enclosure: 9.5 lb (4.3 kg) Wall mount enclosure: 23.0 lb (10.4 kg) Panel mount enclosure: 8.5 lb (3.9 kg) Deep universal: 11 lb (5.0 kg) Rating/Material: Warranty: EMC Immunity: Approvals: |

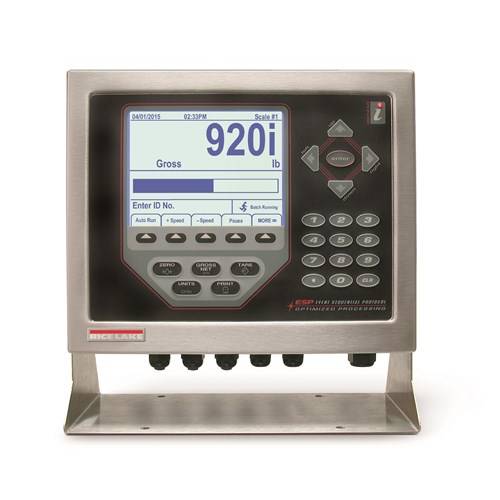

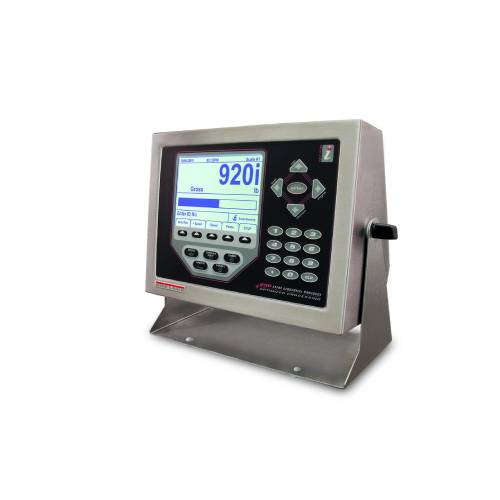

| 920i Universal Dimensions | |||||
|---|---|---|---|---|---|
| A | 12.50 in (318 mm) | D | 4.61 in (117 mm) | G | 0.14 in (3.5 mm) |
| B | 10.56 in (268 mm) | E | 10.87 in (276 mm) | H | 5.25 in (206 mm) |
| C | 10.90 in (277 mm) | F | 8.50 in (216 mm) | ||
| 920i Deep Universal Dimensions | |||||
|---|---|---|---|---|---|
| A | 12.50 in (318 mm) | D | 5.36 in (216 mm) | F | 8.50 in (216 mm) |
| B | 10.76 in (273 mm) | E | 10.87 in (276 mm) | G | 5.88 in (149 mm) |
| C | 10.90 in (277 mm) | ||||

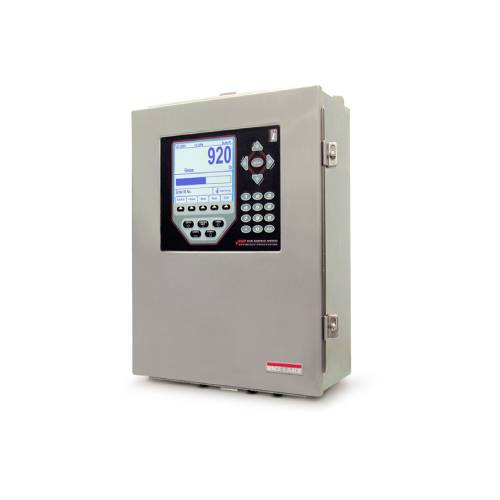

| 920i Wall Mount Dimensions | |||||
|---|---|---|---|---|---|
| A | 14.30 in (363 mm) | D | 18.84 in (479 mm) | F | 14.30 in (363 mm) |
| B | 11.00 in (279 mm) | E | 19.63 in (499 mm) | G | 6.75 in (171 mm) |
| C | 18.00 in (462 mm) | ||||

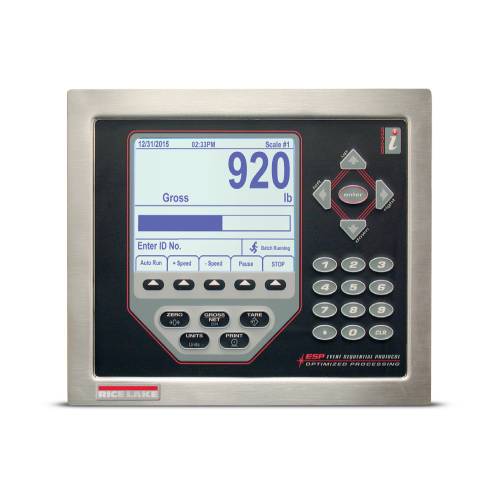

| 920i Panel Mount Dimensions | |||
|---|---|---|---|
| A | 11.56 in (294 mm) | C | 5.20 in (132 mm) |
| B | 9.16 in (233 mm) | D | 7.95 in (202 mm) |
