Laumas TLS Digital-Analog Weight Transmitter

Laumas TLS Digital-Analog Weight Transmitter

0.00 AED (Excl. VAT)

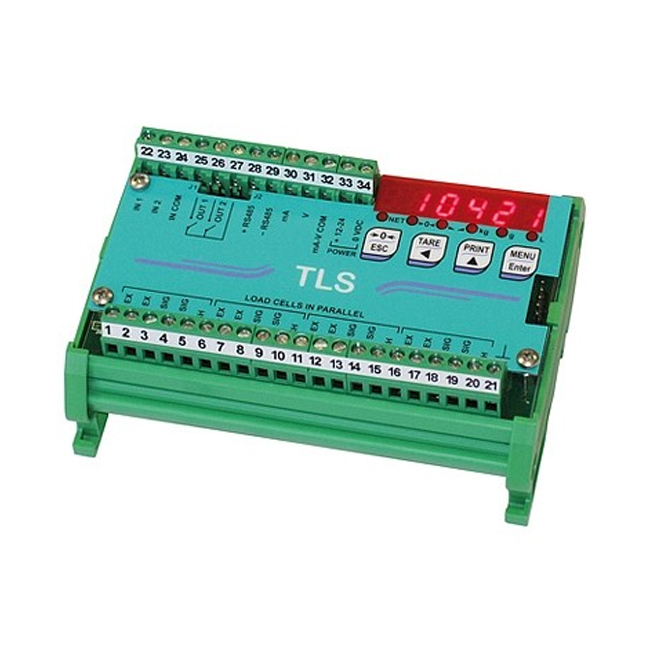

Weight transmitter/indicator with six-digit red LED display (8 mm height).  Four-key keypad for the system calibration. Six indicator led. Dimensions: 123 x 92 x 50 mm.

  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 2 optorelays logic outputs
  • Mounting on Omega/DIN rail for back panel or junction box

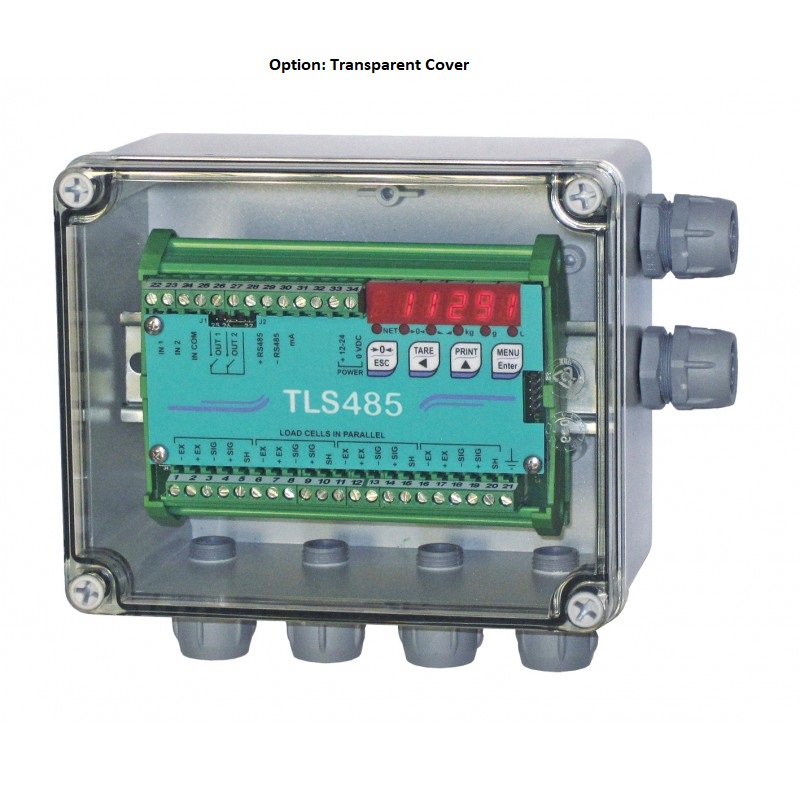

  • Box versions: IP67, IP67 ATEX II 3GD as options
  • A/D converter 24bit (16000000 points) 80 Hz
  • Display range 999999
Categories: , Tags: , , ,
Laumas

Description

MAIN FUNCTIONS:

  • Connections to: PLC via analog output, PC/PLC via RS485 (up to 99 instruments with line repeaters, upto 32 without line repeaters), Remote display via RS485;
  • Connection upto 8 load cells in parallel by junction box
  • Digital filter to reduce the effects of weight oscillation.
  • FUNCTIONS: Tare weight zero setting, Automatic zero setting at power-on, Gross weight zero tracking, Semi-automatic tare (net/gross weight) and preset tare, Semi-automatic zero, Displaying of the maximum weight value reached (peak)
  • Theoretical calibration (via keyboard) and real calibration (with sample weights and the possibility of weight linearization up to 8 points).
  • Direct connection between RS485 and RS232 without converter.
  • Hysteresis and setpoint value setting.
  • The instrument can be configured and managed using the free “Instrument Manager” PC software which you can download from
    www.laumas.com.



CERTIFICATIONS:

  • OIML R76:2006, class III, 3×10000 divisions, 0.2 μV/VSI / OIML R61 – WELMEC Guide 8.8:2011 (MID)
  • UL Recognized component – Complies with the United States and Canada standards
  • Complies with the Eurasian Custom Union standards
  • CERTIFICATIONS ON REQUEST
    Conformity assessment (initial verification) in combination with Laumas weighing module
    Support for metric label (dimensions: 124x77x1.5 mm)
    NMI Trade Approved – Complies with the Australian standards for legal use with third parties
    Complies with the regulations of the Russian Federation for legal use with third parties



Brand

Laumas

Additional information

Model

TLS
Description

Weight transmitter/indicator with six-digit red LED display (8 mm height).
