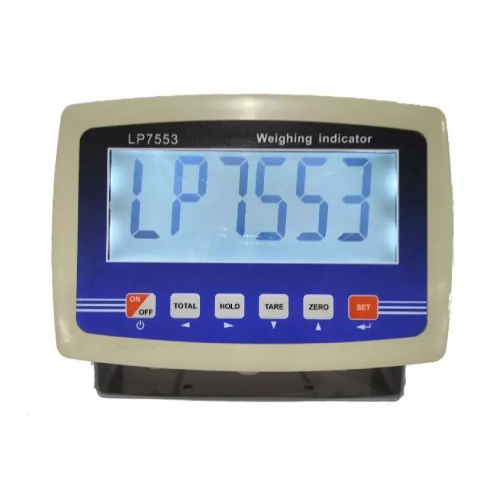

LP7553 Weight Indicator

LP7553 Weight Indicator - Image 2

Tags: Digital Weight Indicator, Indicator, Load Cell Display, Load Cell Indicator, Sens, Weighing Components and Accessories, Weighing Indicator, Weight Display, Weight Indicator

Brand: NIL

LP7553 Weight Indicator

Categories: Weight Indicator

600.00 AED (Excl. VAT)

ADD TO CART to buy or to Request for Quotation (RFQ)

LP7553, LED, RS232

600.00 AED (Excl. VAT)

LP7553, LCD with backlight, RS232

600.00 AED (Excl. VAT)

Model

Display

Interface

Display: six digits 50mm/2″ high red LED or LCD with backlight
Accuracy: OIML III
A/D Converter 20bit
Loading signal range: -19.5mv•-•19.5mv
Resolution: 15000d; internal approximately 1,000,000.
resolution: 0.5 V/d
Excitation circuit: 3.3V DC
Load cell number: 1’4 pcs of 350ohm analog load cell
Power supply: AC110~220V 50~60Hz or internal battery 4V4AH
Operating temperature: -10°C –+40°C
Humidity: <85%R. H
Battery life: 80 hours at least

GET QUOTATION

Brand: NIL

LP7553 Weight Indicator

LP7553 Weight Indicator

LP7553 Weight Indicator - Image 2

Categories: Weight Indicator

600.00 AED (Excl. VAT)

ADD TO CART to buy or to Request for Quotation (RFQ)

LP7553, LED, RS232

600.00 AED (Excl. VAT)

LP7553, LCD with backlight, RS232

600.00 AED (Excl. VAT)

Model

Display

Interface

Display: six digits 50mm/2″ high red LED or LCD with backlight
Accuracy: OIML III
A/D Converter 20bit
Loading signal range: -19.5mv•-•19.5mv
Resolution: 15000d; internal approximately 1,000,000.
resolution: 0.5 V/d
Excitation circuit: 3.3V DC
Load cell number: 1’4 pcs of 350ohm analog load cell
Power supply: AC110~220V 50~60Hz or internal battery 4V4AH
Operating temperature: -10°C –+40°C
Humidity: <85%R. H
Battery life: 80 hours at least

Tags: Digital Weight Indicator, Indicator, Load Cell Display, Load Cell Indicator, Sens, Weighing Components and Accessories, Weighing Indicator, Weight Display, Weight Indicator

GET QUOTATION

Model	Display	Interface	Price
LP7553	LED	RS232	600.00 AED (Excl. VAT)
LP7553	LCD with backlight	RS232	600.00 AED (Excl. VAT)

Application:

Platform scale, floor scale, animal scale or force-testing devices

Option(not included):

RS232 for big display
RS2321RS284 for communication
Baud rate: 600/120012400/4800/9600
Printing interface: serial port printer or RS232 type
Bluetooth: yes

Features:

Function: tolalizing, counting, tare, zero.
Optional function: animal weighing, check weighing, Peaking, lower-upper limiting, Hi-ok-Lo.
Housing: ABS

Additional information

Model	LP7553
Display	LED, LCD with backlight
Interface	RS232, USB
