DGT60: MAXI “GOLIAH” WEIGHT INDICATOR-UNIVERSAL REPEATER

Call for price

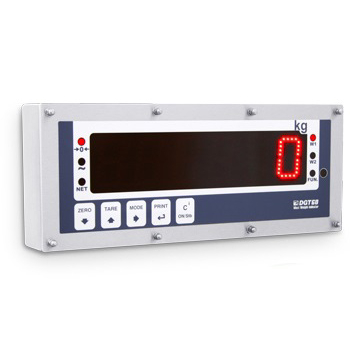

Weight indicator/ repeater with large matrix display composed of very intense bright LEDs. Particularly suitable for use outdoors, also in full sunlight, and where it’s necessary to view from a distance at any angle. Case completely in IP68 stainless steel.

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval

DGT60BC-1, Weight indicator with 60mm LED display. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
Call for price
DGT60R-1, Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol
Call for price
DGT60AN-1, Weight indicator with 60mm LED display and analogue output. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
Call for price
DGT60PB-2, Weight indicator with 60mm LED display and Profibus. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
Call for price
GET QUOTATION

Brand:

DGT60: MAXI “GOLIAH” WEIGHT INDICATOR-UNIVERSAL REPEATER

Call for price

Weight indicator/ repeater with large matrix display composed of very intense bright LEDs. Particularly suitable for use outdoors, also in full sunlight, and where it’s necessary to view from a distance at any angle. Case completely in IP68 stainless steel.

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval

DGT60BC-1, Weight indicator with 60mm LED display. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
Call for price
DGT60R-1, Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol
Call for price
DGT60AN-1, Weight indicator with 60mm LED display and analogue output. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
Call for price
DGT60PB-2, Weight indicator with 60mm LED display and Profibus. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
Call for price
GET QUOTATION

ModelDescriptionPrice
Model: DGT60BC-1Description: Weight indicator with 60mm LED display. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressurePrice: Call for price
Model: DGT60R-1Description: Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocolPrice: Call for price
Model: DGT60AN-1Description: Weight indicator with 60mm LED display and analogue output. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressurePrice: Call for price
Model: DGT60PB-2Description: Weight indicator with 60mm LED display and Profibus. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressurePrice: Call for price

MAIN FEATURES

  • Functional 5-key waterproof keypad.
  • Large 6-digit display, 60 mm high, with very efficient SMD LEDs (software adjustment of the brightness intensity), complete of 6 Leds for indication of active functions, visible from over 25 m, with viewing angle up to 120° and with power up to 750 mcd.
  • IP68 stainless steel case complete of wall fixing bracket.

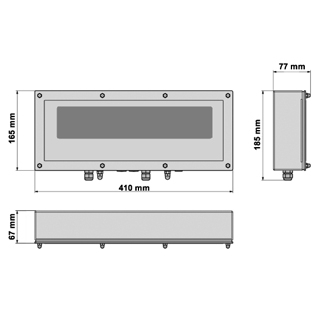

  • Dimensions: 410 x 67 x 165 mm.
  • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
  • 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
  • 800.000 displayable divisions viewable with internal resolution up to 3.000.000 points.
  • Up to 8 signal linearisation points with DINITOOLS.
  • A/D 24 bit sigma-delta 4-channel conversion, max.400 conv./sec. with automatic selection.
  • Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
  • Management of a weighing system with up to 4 cells with digital equalisation or management of up to 4 independent weighing systems.
  • Power supply from 12 to 24 Vdc with 110-240 Vac internal power supplier.
  • Available as Scale or as Repeater version.
  • Fitted with an air valve for regulating the humidity and the pressure inside the indicator.



MAIN CERTIFICATIONS

  • CE-M EN 45501
  • OIML R76
  • OIML R61 – MID
  • OIML R51
  • Australian legal for trade certificate of approval (NMI S788)



I/O SECTION

  • RS232/C bidirectional port configurable for connection to printer, PC, or other external units.
  • RS485 bidirectional port configurable for connection to PC, PLC, or other external units.
  • PROFIBUS serial interface (DGT60PB model).
  • 2 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 2 optoisolator photocouplers: 12÷24 Vdc, 5 mA min – 20 mA max, with configurable functions.
  • 16-bit analogue output (DGT60AN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice; maximum applicable voltage: 300 Ohm; minimum applicable voltage resistance: 1 kohm.

Additional information

Model

DGT60BC-1, DGT60R-1, DGT60AN-1, DGT60PB-2

Description

Weight indicator with 60mm LED display. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure, Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol, Weight indicator with 60mm LED display and analogue output. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure, Weight indicator with 60mm LED display and Profibus. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure
