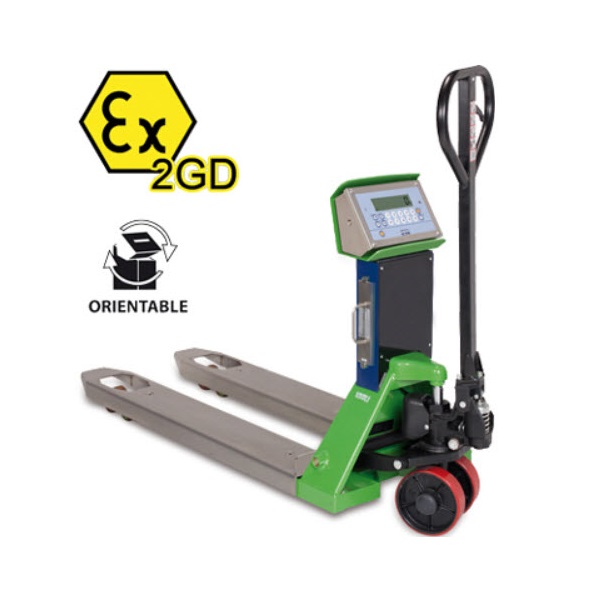

TPW EX 2GD “HAZARDOUS ZONE” series Pallet Truck Scale ATEX – Dini Argeo

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X.

The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions. Manufactured, calibrated and adjusted in Italy by Dini Argeo.

  • Maximum lifting capacity: 2500 kg.
  • Accuracy: +/- 0.05% of the maximum capacity.
  • Fork dimensions 1150 x 550 x 85 mm
  • Standard fitted with +/-160° swivelling column head.
  • Atex certified, 4 stainless steel IP68 shear-beam load cells.
  • Indicator with easy to clean satin finish stainless steel case with IP68 enclosure

Product Variations

No. Thumbnail Model Capacity / Division Stock Quantity Price
No. Thumbnail Model Capacity / Division Stock Quantity Price

Description

  • Maximum lifting capacity: 2500 kg.
  • Accuracy: +/- 0.05% of the maximum capacity.
  • Fork dimensions 1150 x 550 x 85 mm.
  • Weighs about 125 kg.
  • Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
  • Standard fitted with +/-160° swivelling column head.
  • Steering wheels and double loading rollers with a poliurethane coating.
  • Atex certified, 4 stainless steel IP68 shear-beam load cells.
  • Indicator with easy to clean satin finish stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
  • Calibration and Set-Up parameters configurable from keyboard.
  • Power supply through extractable battery, rechargeable in safe zone.
  • 150-hour approximate operating time.
  • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
  • FUNCTIONS: Zeroing, Tare, High Resolution Weighing x 10, Net/Gross or lb/kg conversion, Weighs accumulation, Formulation, Counting, Hold.

Brand

Dini Argeo

Additional information

Scale Capacity Range (Platform)

Model

TPWX2GD20-1, TPWX2GD25-1

Capacity / Division

2 ton / 1 kg, 2.5 ton / 1 kg
