LTF SERIES WEIGHING FORKS

Call for price

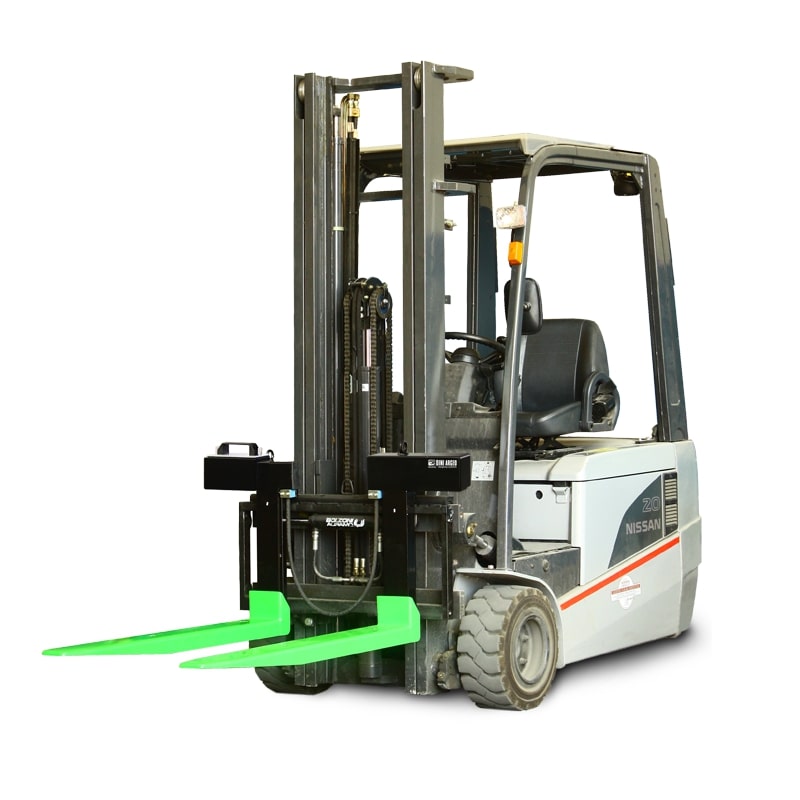

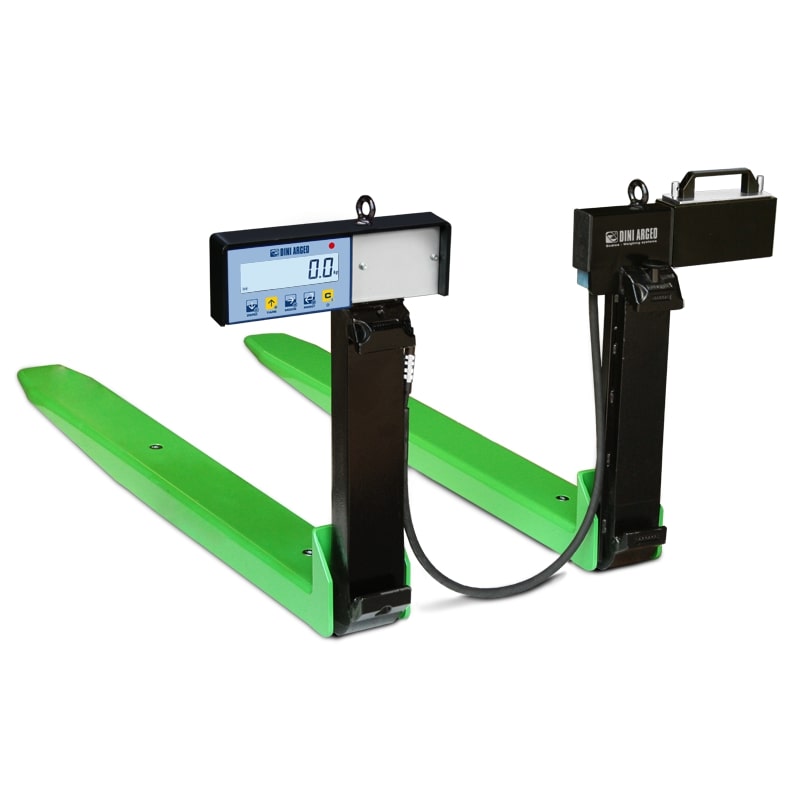

Pair of forks with an integrated weighing system for lift trucks, easy to use, sturdy, and reliable. The optional wireless indicator to install in the cabin makes weighing operations easier and has a large range of accessories. Operates by a rechargeable battery or directly powered from the lift truck. Compatible with any lift truck having a DIN 15173 – FEM fork holder plate, of the IIA (IIB optional) or IIIA class. Available in CE-M approved version.

GET QUOTATION

Brand:

LTF SERIES WEIGHING FORKS

Call for price

Pair of forks with an integrated weighing system for lift trucks, easy to use, sturdy, and reliable. The optional wireless indicator to install in the cabin makes weighing operations easier and has a large range of accessories. Operates by a rechargeable battery or directly powered from the lift truck. Compatible with any lift truck having a DIN 15173 – FEM fork holder plate, of the IIA (IIB optional) or IIIA class. Available in CE-M approved version.

Tags:

GET QUOTATION

MAIN FEATURES

  • Mechanical characteristics:
  • Painted steel forks.
  • Each fork weighs: 75kg (LTF25) and 90kg (LTF50).
  • Functions with 4 shear-beam IP68 load cells.
  • Accuracy: +/- 0.2% of the capacity.
  • Max. allowable overload: 200% of the nominal capacity.
  • Max. horizontal inclination (oscillation): +/- 2° with the same accuracy characteristics



PACKAGING IS INCLUDED IN THE PRICE

for the complete protection against scratches and bumps during transportation. The weighing forks are shipped inside a sturdy wooden case which is custom made.
This special service is included in the price of the product.



Electrical characteristics:

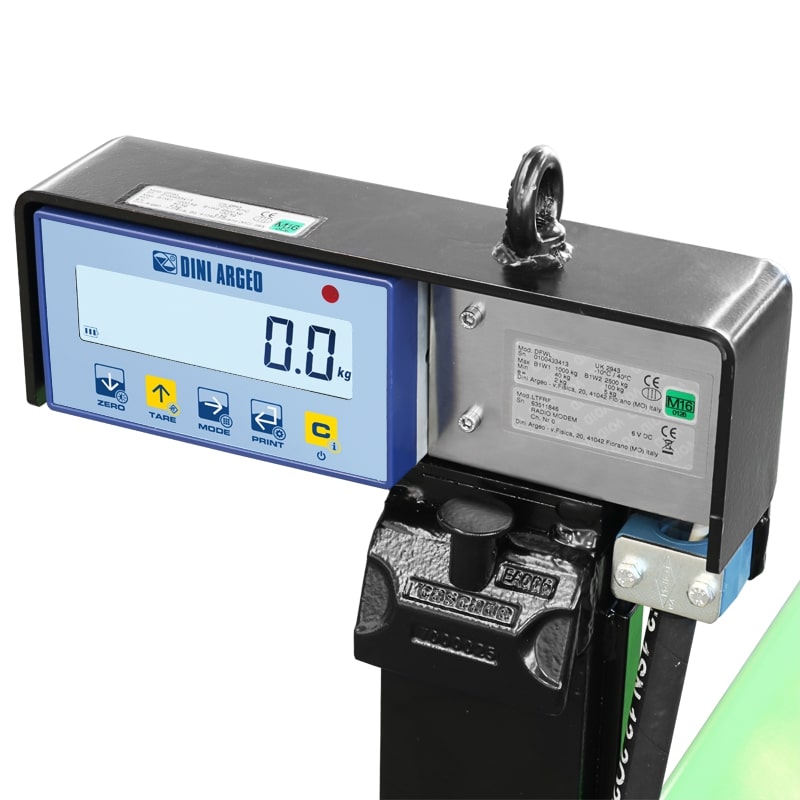

  • Weight indicator, integral to the weighing forks, with waterproof 5-key numerical/functional keypad, 25mm backlit LCD display with 6 high contrast digits, protected by a thick steel case.
  • Overall IP rating: IP65. IP68 load cells.
  • Digital Calibration and Set-Up via keypad or PC with DINITOOLS.

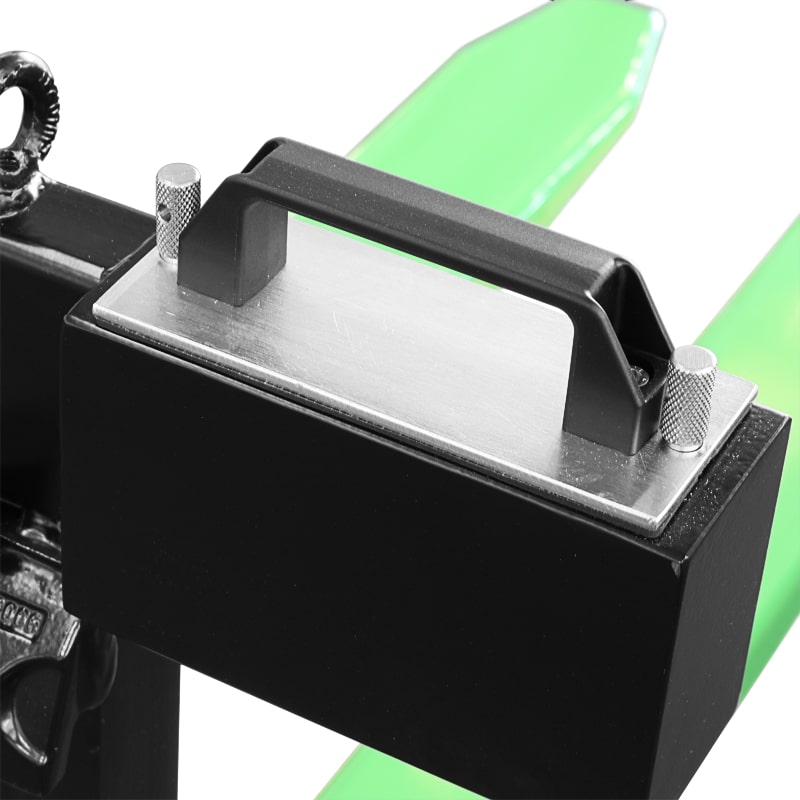

  • Power at the forks provided by a rechargeable battery with an operating time of about 40 hours or continuous use via an additional battery kit (optional).
  • Programmable automatic switch-off.
  • Battery charger supplied.



KEYPAD AND REMOTE CONTROL FUNCTIONS

  • KEYPAD FUNCTIONS: Zeroing, Semi-automatic tare, Presettable tare, Printing and/or data transmission, Selectable function command, On/off.
  • REMOTE CONTROL(optional):
    Same features as the keypad.



CABIN INDICATOR FUNCTIONS

  • Repeater kit model DFWKBTHF (optional):
    same functions as the indicator integrated with the forks, but additionally: memory for 30 tare weights, 2 numeric IDs, keypad lock, repetition of last printout, quick manual input of tare, target, PMU, thresholds and set points.
  • Indicator kit model 3590KBTHF (optional):
    If this kit is used, the indicator integrated with the fork transmits the weight to the touch screen terminal in the cabin, which offers specific advanced features according to the program selected:
  • AF01: totalising/order picking
  • AF02: piece counting/quantity
  • AF05: totalising and labelling
    See the technical details of each program for more details.



SELECTABLE FUNCTION MODES

The user can select the operating modes directly using the dedicated key*:
– High resolution display x 10
– Net/Gross
– lb to kg converter
– Metre counter, litre counter function etc., with free conversion factor
– Weight totalising
– Formula weighing
– +/- Checkweighing with quick target and threshold input
– Percentage weighing
– Percentage batching with programmable target
– Piece counter
– Hold

  • The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board;
  • Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.* These quick access keys to the menus can be blocked by configuring a dedicated password.

Additional information

model

LTWC15, LTWC25, LTWC15BTH, LTWC25BTH
