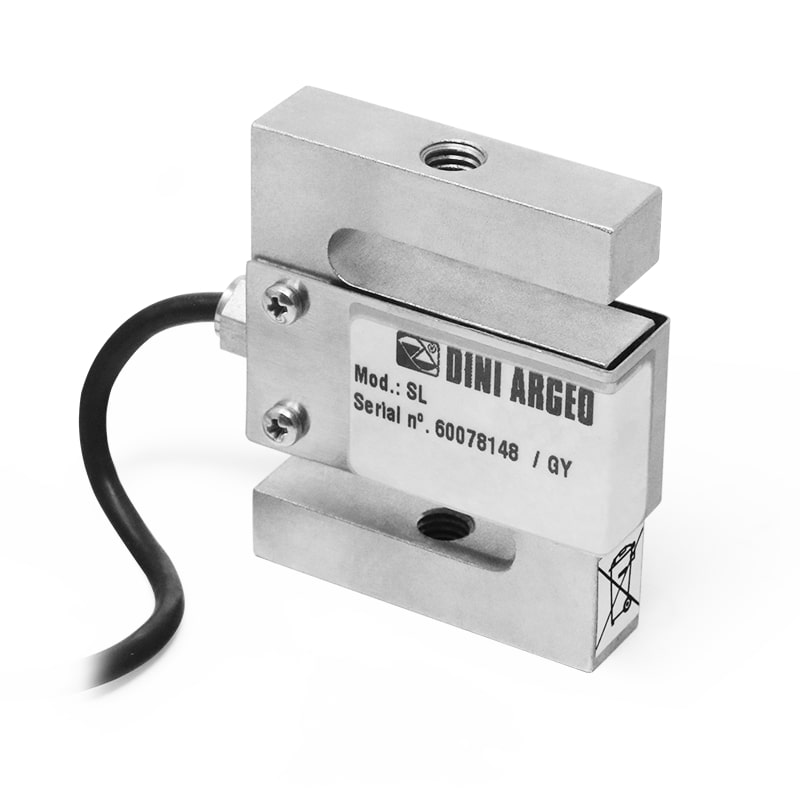

SL SERIES TENSION LOAD CELLS

Brand: Dini Argeo

SL SERIES TENSION LOAD CELLS

Categories: Load Cell

Call for price

ADD TO CART to buy or to Request for Quotation (RFQ)

model

Clear

Tension or compression load cells for weighing hoppers, tanks and with other weighing devices.

CAPACITIES (kg): 15, 30, 50, 100, 300, 500, 1000.

Alloy steel. IP67 protection.

GET QUOTATION

Tags: Analog Load Cell, Force Sensor, Force Transducer, Load Cell Sensor, Petrascale, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Weighing Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

Brand: Dini Argeo

SL SERIES TENSION LOAD CELLS

SL SERIES TENSION LOAD CELLS

Categories: Load Cell

Call for price

ADD TO CART to buy or to Request for Quotation (RFQ)

model

Clear

Tension or compression load cells for weighing hoppers, tanks and with other weighing devices.

CAPACITIES (kg): 15, 30, 50, 100, 300, 500, 1000.

Alloy steel. IP67 protection.

Tags: Analog Load Cell, Force Sensor, Force Transducer, Load Cell Sensor, Petrascale, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Sensor, Weighing Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

GET QUOTATION

model	Price
SL15	Call for price
SL30	Call for price
SL50	Call for price
SL100	Call for price
SL300	Call for price
SL500	Call for price
SL1000	Call for price

MAIN FEATURES

ALLOY STEEL CONSTRUCTION
IP67 PROTECTION RATING
MAX. CAPACITIES FROM 15 TO 1000 kg

TECHNICAL FEATURES

Non-Repeatability: 0,01% F.S.
Full Scale Output: 2mV/V +/- 10%
Temperature effect on zero: 0,02% /°C
Temperature effect on full scale output: 0,02% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -30°C/+85°C
Creep error after 4 hours: 0,03% F.S.
Maximum tolerated excitation voltage: 15 VDC
Input Resistance: 381 ± 10 Ohm
Output Resistance: 350 ± 3 Ohm
Zero balance: +/- 2% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 300% F.S.
4-wire shielded cable, 5m long, 5,5 mm diameter

Wiring Code
Colour	Function
RED	INPUT +
BLACK	INPUT –
GREEN	OUTPUT +
WHITE	OUTPUT –
—	SHIELD

Additional information

Weight	N/A
model	SL15, SL30, SL50, SL100, SL300, SL500, SL1000
