Brand:

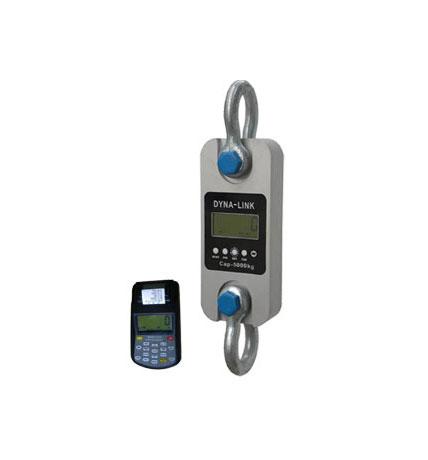

Sigma DDM-W5 - Wireless Dynamometer with 580 Printing Indicator

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 580 Indicator: 25mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Thermal printing indicator with ABS plastic body.
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration, Print
  • Power: AA Batteries for Dynamometer,  Rechargable Ni-H battery, SC 3.5Ah for printing indicator
  • Overload Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W5-100, 100 ton / 50 kg
Call for price
DDM-W5-50, 50 ton / 20 kg
Call for price
DDM-W5-30, 30 ton / 10 kg
Call for price
DDM-W5-20, 20 ton / 5 kg
Call for price
DDM-W5-10, 10 ton / 5 kg
Call for price
DDM-W5-05, 5 ton / 2 kg
Call for price
DDM-W5-03, 3 ton / 1 kg
Call for price
DDM-W5-02, 2 ton / 1 kg
Call for price
DDM-W5-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

Brand:

Sigma DDM-W5 - Wireless Dynamometer with 580 Printing Indicator

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 580 Indicator: 25mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Thermal printing indicator with ABS plastic body.
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration, Print
  • Power: AA Batteries for Dynamometer,  Rechargable Ni-H battery, SC 3.5Ah for printing indicator
  • Overload Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W5-100, 100 ton / 50 kg
Call for price
DDM-W5-50, 50 ton / 20 kg
Call for price
DDM-W5-30, 30 ton / 10 kg
Call for price
DDM-W5-20, 20 ton / 5 kg
Call for price
DDM-W5-10, 10 ton / 5 kg
Call for price
DDM-W5-05, 5 ton / 2 kg
Call for price
DDM-W5-03, 3 ton / 1 kg
Call for price
DDM-W5-02, 2 ton / 1 kg
Call for price
DDM-W5-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

ModelCapacity / DivisionPrice
Model: DDM-W5-100Capacity / Division: 100 ton / 50 kgPrice: Call for price
Model: DDM-W5-50Capacity / Division: 50 ton / 20 kgPrice: Call for price
Model: DDM-W5-30Capacity / Division: 30 ton / 10 kgPrice: Call for price
Model: DDM-W5-20Capacity / Division: 20 ton / 5 kgPrice: Call for price
Model: DDM-W5-10Capacity / Division: 10 ton / 5 kgPrice: Call for price
Model: DDM-W5-05Capacity / Division: 5 ton / 2 kgPrice: Call for price
Model: DDM-W5-03Capacity / Division: 3 ton / 1 kgPrice: Call for price
Model: DDM-W5-02Capacity / Division: 2 ton / 1 kgPrice: Call for price
Model: DDM-W5-01Capacity / Division: 1 ton / 0.5 kgPrice: Call for price
DDM-W5 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, Whether used as conventional crane weigher or to measure force, DL-W5 wireless dynamometer is the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case, easy to carry, suitable for protected outdoor use., calibration is easier with 580 indicator.

Specifications and product description

  • Body protection: Aluminum and alloy steel capacities are powder coated.
  • Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
  • Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
  • Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
  • Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.
  • Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.?
  • Body indicator key: 4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
  • Indicator communications: Both RS232 serial port and USB port,solve most laptops without serial port problem. with the Everight company’s PC host computer software,not only display weigh value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other functions .
  • Package: Packed with carry case, easy to bring.
  • Antenna: Internal antenna.
  • Function on indicator keyboard: It can print data,time,Serial number, commodity number,net weight and total weight. Also can input 16 digits head information,It can store up to 2000 weighing records.It can be statistics by serial number or commodity number,also can statistics by data, statistical results can be printed with weighing number and total weight.

Features

Body display 25mm (1’’) 5digits LCD with backlight
Indicator display 25mm (1’’) 5digits LCD with backlight
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 20% F.S.
Stable Time ≤5seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥50 hours
Body Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Indicator Battery Rechargable Ni-H battery, SC 3.5Ah
Operating Temp – 10℃ ~ + 50℃
Operating Humidity ≤85% RH under 20℃
Indicator printer FUJITSU FTP-628 MCL101#50″ high speed thermal printer
Wireless Distance Min. 80m(default) [200m(optional)]

Main technical data

MODEL Max. capacity (kg/lb) Min. weigh(kg/lb) Division(kg/lb) Total dispay counts (n)
DDM-W5-01 1000/2200 10/20 0.5/1 2000
DDM-W5-02 2000/4400 20/40 1/2 2000
DDM-W5-03 3000/6600 20/40 1/2 3000
DDM-W5-05 5000/1100 40/80 2/4 2500
DDM-W5-10 10000/22000 100/200 5/10 2000
DDM-W5-20 20000/44000 200/400 10/20 2000
DDM-W5-30 30000/66000 200/400 10/20 3000

Specification

MODEL A(mm) B(mm) C(mm) D(mm) φ(mm) H(mm) Material
DL-W5-01 245 112 37 190 43 335 Aluminum
DL-W5-02 245 112 37 190 43 335 Aluminum
DL-W5-03 260 123 37 195 51 365 Aluminum
DL-W5-05 285 123 57 210 58 405 Aluminum
DL-W5-10 320 120 57 230 92 535 Alloy Steel
DL-W5-20 420 128 74 260 127 660 Alloy Steel
DL-W5-30 420 138 82 280 146 740 Alloy Steel

Additional information

Model

DDM-W5-01, DDM-W5-02, DDM-W5-03, DDM-W5-05, DDM-W5-10, DDM-W5-20, DDM-W5-30, DDM-W5-50, DDM-W5-100

Capacity / Division

1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg
