Brand:

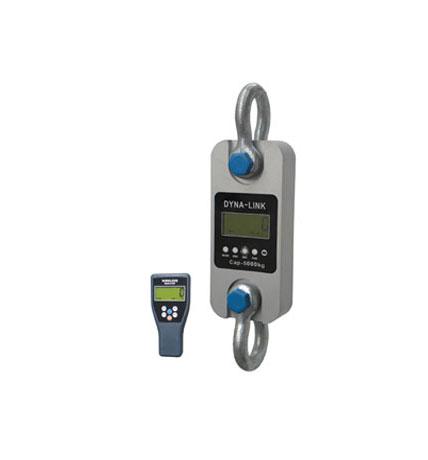

Sigma DDM-W3 - Wireless Dynamometer with 380 Handheld Indicator

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight

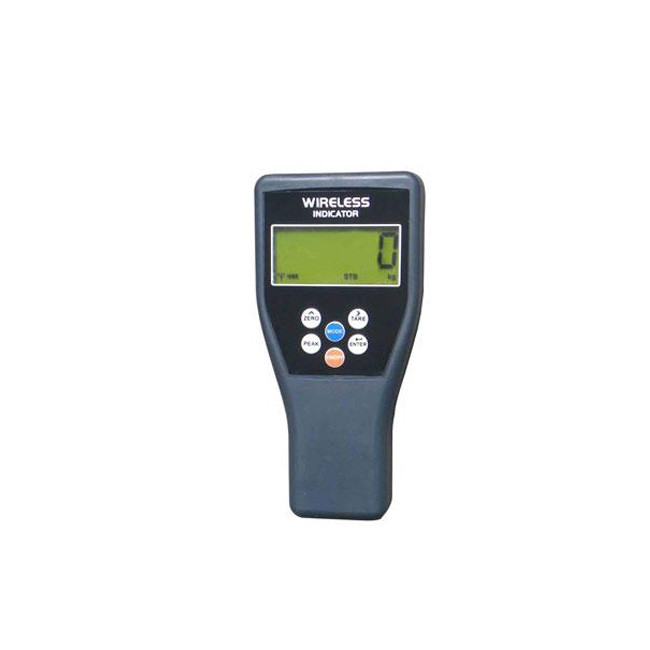

    • 380 Indicator: 25mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power: AA Batteries
  • Over Load Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W3-30, 30 ton / 10 kg
Call for price
DDM-W3-20, 20 ton / 5 kg
Call for price
DDM-W3-10, 10 ton / 5 kg
Call for price
DDM-W3-05, 5 ton / 2 kg
Call for price
DDM-W3-03, 3 ton / 1 kg
Call for price
DDM-W3-02, 2 ton / 1 kg
Call for price
DDM-W3-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

Brand:

Sigma DDM-W3 - Wireless Dynamometer with 380 Handheld Indicator

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 380 Indicator: 25mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power: AA Batteries
  • Over Load Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W3-30, 30 ton / 10 kg
Call for price
DDM-W3-20, 20 ton / 5 kg
Call for price
DDM-W3-10, 10 ton / 5 kg
Call for price
DDM-W3-05, 5 ton / 2 kg
Call for price
DDM-W3-03, 3 ton / 1 kg
Call for price
DDM-W3-02, 2 ton / 1 kg
Call for price
DDM-W3-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

ModelCapacity / DivisionPrice
Model: DDM-W3-30Capacity / Division: 30 ton / 10 kgPrice: Call for price
Model: DDM-W3-20Capacity / Division: 20 ton / 5 kgPrice: Call for price
Model: DDM-W3-10Capacity / Division: 10 ton / 5 kgPrice: Call for price
Model: DDM-W3-05Capacity / Division: 5 ton / 2 kgPrice: Call for price
Model: DDM-W3-03Capacity / Division: 3 ton / 1 kgPrice: Call for price
Model: DDM-W3-02Capacity / Division: 2 ton / 1 kgPrice: Call for price
Model: DDM-W3-01Capacity / Division: 1 ton / 0.5 kgPrice: Call for price
DDM-W3 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool that offers universal applications. The indicator 380 is handheld and very compact to use, making the customer requirements simpler and handier.  DDM-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 380 indicator. Specifications:
  • Rugged construction.
  • Accuracy: 0.05% of capacity.
  • All functions and units are clearly displayed on the LCD (with backlighting).
  • Digits are 1 inch high for easy distant viewing.
  • Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
  • Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
  • All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
  • Infrared Remote control easier to calibration(with password).
  • Infrared Remote control with many fuctions : “ZERO”, ”TARE”,”CLEAR”, “PEAK”, ”ACCUMULATE” ,”HOLD” ,”Unit Change” ,”Voltage Check” and “Power OFF”.
  • 4 local mechanical keys :”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.?
  • low battery warning.
  • RF wireless palm indicator.
Features:-
Display 25mm (1’’) 5digits LCD
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 20% F.S.
Stable Time ≤10seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥40 hours
Battery Type “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Operating Temp – 10℃ ~ + 40℃
Operating Humidity ≤85% RH under 20℃
Remote Controller Distance Min. 15m
Wireless Frequency 2.4GHz(default),433MHz,860MHz(optional)

Main technical data

MODEL Max. capacity (kg/lb) Min. weigh(kg) Division (kg /lb) Total dispay counts (n)
DDM-W3-01 1000/2200 10/20 0.5/1 2000
DDM-W3-02 2000/4400 20/40 1/2 2000
DDM-W3-03 3000/6600 20/40 1/2 3000
DDM-W3-05 5000/1100 40/80 2/4 2500
DDM-W3-10 10000/22000 100/200 5/10 2000
DDM-W3-20 20000/44000 200/400 10/20 2000
DDM-W3-30 30000/66000 200/400 10/20 3000

Specification

MODEL A(mm) B(mm) C(mm) D(mm) φ(mm) H(mm) Material
DL-W3-01 245 112 37 190 43 335 Aluminum
DL-W3-02 245 112 37 190 43 335 Aluminum
DL-W3-03 260 123 37 195 51 365 Aluminum
DL-W3-05 285 123 57 210 58 405 Aluminum
DL-W3-10 320 120 57 230 92 535 Alloy Steel
DL-W3-20 420 128 74 260 127 660 Alloy Steel
DL-W3-30 420 138 82 280 146 740 Alloy Steel

Additional information

Model

DDM-W3-01, DDM-W3-02, DDM-W3-03, DDM-W3-05, DDM-W3-10, DDM-W3-20, DDM-W3-30

Capacity / Division

1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg
