Brand:

Sigma LQW-5D - Wireless Load Shackle Dynamometer

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: High tensile carbon steel construction
  • Protection class: IP67 class water proof
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications
  • With580D Thermal Printing Indicator, RS232 and USB Port.
  • Power
    • Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
    • Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
  • Wireless Distance: 200m without obstacle
  • 1 year: warranty
LQW-5D-30, 30 ton
Call for price
LQW-5D-20, 20 ton
Call for price
LQW-5D-10, 10 ton
Call for price
LQW-5D-5, 5 ton
Call for price
GET QUOTATION

Brand:

Sigma LQW-5D - Wireless Load Shackle Dynamometer

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: High tensile carbon steel construction
  • Protection class: IP67 class water proof
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications
  • With580D Thermal Printing Indicator, RS232 and USB Port.
  • Power
    • Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
    • Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
  • Wireless Distance: 200m without obstacle
  • 1 year: warranty
LQW-5D-30, 30 ton
Call for price
LQW-5D-20, 20 ton
Call for price
LQW-5D-10, 10 ton
Call for price
LQW-5D-5, 5 ton
Call for price
GET QUOTATION

ModelCapacityPrice
Model: LQW-5D-30Capacity: 30 tonPrice: Call for price
Model: LQW-5D-20Capacity: 20 tonPrice: Call for price
Model: LQW-5D-10Capacity: 10 tonPrice: Call for price
Model: LQW-5D-5Capacity: 5 tonPrice: Call for price

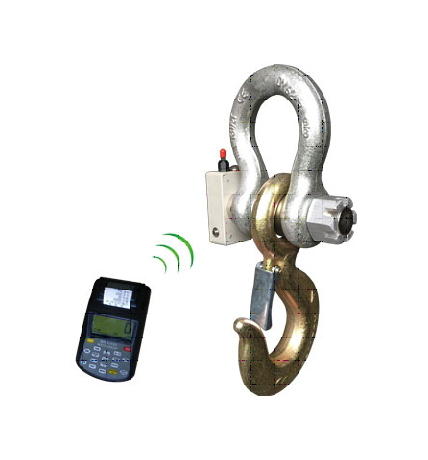

LQW-5D wireless load shackle is an extremely well-built instrument for industry use, as a standard wireless tool offers universal applications, whether used as a conventional crane weigher or to measure force, LQW-5D wireless load shackle is microprocessor controlled for high precision accuracy, calibration is easier with wireless indicator 580D. Specifications:
  • Material: High tensile carbon steel construction
  • Protection class: IP67 class water proof
  • Accuracy: 0.1%
  • Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password). It can print data,time,Serial number, commodity number,net weight and total weight. Also can input 16 digits head information,It can store up to 2000 weighing records.It can be statistics by serial number or commodity number,also can statistics by data, statistical results can be printed with weighing number and total weight.
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
  • Indicator communications: Both RS232 serial port and USB port,solve most laptops without serial port problem. with the Everight company’s PC host computer software,not only display weigh value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other functions .


Features

580D Indicator Display 25mm (1’’) 5digits LCD with backlight
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤5 seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S
Ultimate Load 400% F.S.
Sealing Standard IP-67 protected from dust and high pressure jets of water
Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Indicator printer FUJITSU FTP-628 MCL101#50″ high speed thermal printer
Printer paper 57x50mm
Operating Temp. – 20℃ ~ + 50℃
Operating Humidity ≤85% RH under 20℃
Wireless Distance 200M without obstacle

Specification

MODEL Cap.(kg) A(mm) B(mm) C(mm) D(mm) E(mm) H(mm) N.W.(kg)
LQW-5D-5 5000 80 200 45 160 29 290 8
LQW-5D-10 10000 99 216 51 205 35 361 13
LQW-5D-20 20000 129 270 86 280 44 307 31
LQW-5D-30 30000 143 295 100 327 50 540 46

Additional information

Model

LQW-5D-5, LQW-5D-10, LQW-5D-20, LQW-5D-30

Capacity

5 ton, 10 ton, 20 ton, 30 ton
