Sigma DDM-W3M - Multi-channel Wireless Dynamometer

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 380 Indicator: Dotmatrix LCD display with backlight
  • Wireless Distance: 50m without obstacle
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power: AA Batteries
  • Over Load Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W3M-100, 100 ton / 50 kg
Call for price
DDM-W3M-50, 50 ton / 20 kg
Call for price
DDM-W3M-30, 30 ton / 10 kg
Call for price
DDM-W3M-20, 20 ton / 5 kg
Call for price
DDM-W3M-10, 10 ton / 5 kg
Call for price
DDM-W3M-05, 5 ton / 2 kg
Call for price
DDM-W3M-03, 3 ton / 1 kg
Call for price
DDM-W3M-02, 2 ton / 1 kg
Call for price
DDM-W3M-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

Brand:

Sigma DDM-W3M - Multi-channel Wireless Dynamometer

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 380 Indicator: Dotmatrix LCD display with backlight
  • Wireless Distance: 50m without obstacle
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power: AA Batteries
  • Over Load Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W3M-100, 100 ton / 50 kg
Call for price
DDM-W3M-50, 50 ton / 20 kg
Call for price
DDM-W3M-30, 30 ton / 10 kg
Call for price
DDM-W3M-20, 20 ton / 5 kg
Call for price
DDM-W3M-10, 10 ton / 5 kg
Call for price
DDM-W3M-05, 5 ton / 2 kg
Call for price
DDM-W3M-03, 3 ton / 1 kg
Call for price
DDM-W3M-02, 2 ton / 1 kg
Call for price
DDM-W3M-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

ModelCapacity / DivisionPrice
Model: DDM-W3M-100Capacity / Division: 100 ton / 50 kgPrice: Call for price
Model: DDM-W3M-50Capacity / Division: 50 ton / 20 kgPrice: Call for price
Model: DDM-W3M-30Capacity / Division: 30 ton / 10 kgPrice: Call for price
Model: DDM-W3M-20Capacity / Division: 20 ton / 5 kgPrice: Call for price
Model: DDM-W3M-10Capacity / Division: 10 ton / 5 kgPrice: Call for price
Model: DDM-W3M-05Capacity / Division: 5 ton / 2 kgPrice: Call for price
Model: DDM-W3M-03Capacity / Division: 3 ton / 1 kgPrice: Call for price
Model: DDM-W3M-02Capacity / Division: 2 ton / 1 kgPrice: Call for price
Model: DDM-W3M-01Capacity / Division: 1 ton / 0.5 kgPrice: Call for price

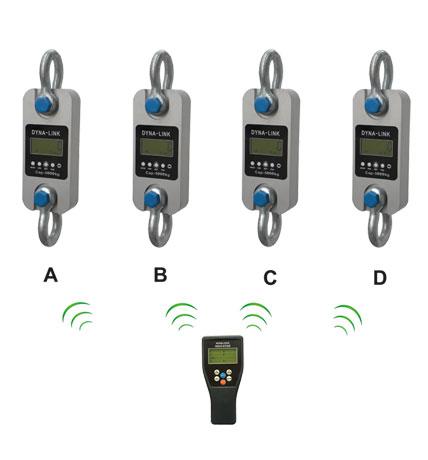

DDM-W3M wireless dynamometer is an extremely well-built instrument for industry use, whether used as a conventional crane weigher or to measure force, DDM-W3M wireless dynamometer is microprocessor controlled for high precision accuracy, it can display up to 4 dynamometers data and sum at the same time, it also provides user two user-programmable Set-Point for safety and warning applications or for limit weighing. Parameter setting and calibration are easy through wireless handheld indicator 380. Specifications:
  • Body protection: Aluminum and alloy steel capacities are powder coated.
  • Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
  • Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
  • Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.

Features

Body Display 25mm (1’’) 5digits LCD with backlight
380M Indicator Display 128×64 dot matrix LCD with backlight
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤5 seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥50 hours
Body Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Indicator Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ4
Operating Temp. – 20℃ ~ + 50℃
Operating Humidity ≤85% RH under 20℃
Wireless Distance 50m without obstable

Main technical data

MODEL A(mm) B(mm) C(mm) D(mm) φ(mm) H(mm) Material
DDM-W3M-1 245 112 37 190 43 335 Aluminum
DDM-W3M-2 245 112 37 190 43 335 Aluminum
DDM-W3M-3 260 123 37 195 51 365 Aluminum
DDM-W3M-5 285 123 57 210 58 405 Aluminum
DDM-W3M-10 320 120 57 230 92 535 Alloy Steel
DDM-W3M-20 420 128 74 260 127 660 Alloy Steel
DDM-W3M-30 420 138 82 280 146 740 Alloy Steel

Specification

Model Max.Capacity (kg) Min.Weigh (kg) Division (kg) Total display counts (n)
DDM-W3M-1 1000 10 0.5 2000
DDM-W3M-2 2000 20 1 2000
DDM-W3M-3 3000 20 1 3000
DDM-W3M-5 5000 40 2 3000
DDM-W3M-10 10000 100 5 2000
DDM-W3M-20 20000 200 10 2000
DDM-W3M-30 30000 200 10 3000


Additional information

Model

DDM-W3M-01, DDM-W3M-02, DDM-W3M-03, DDM-W3M-05, DDM-W3M-10, DDM-W3M-20, DDM-W3M-30, DDM-W3M-50, DDM-W3M-100

Capacity / Division

1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg
