Brand: Dini Argeo
Categories: Shear Beam Load Cell
830.00 AED – 1,030.00 AED

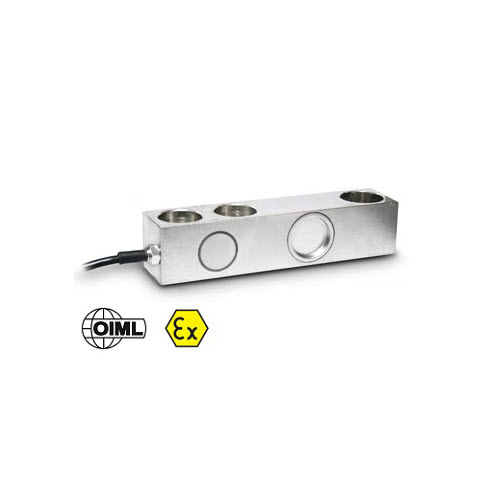

Stainless steel approved shear beam load cells, with low-power 1000 Ohm output resistance for mobile battery applications.
Suitable for creating CE-M approved scales with 4 load cells, or for weighing tanks and hoppers, with the aid of its accessories.
CAPACITIES (kg): 3000, 4500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.
Output Resistance 1000 Ohm.
Brand: Dini Argeo
Categories: Shear Beam Load Cell
830.00 AED – 1,030.00 AED
Stainless steel approved shear beam load cells, with low-power 1000 Ohm output resistance for mobile battery applications.
Suitable for creating CE-M approved scales with 4 load cells, or for weighing tanks and hoppers, with the aid of its accessories.
CAPACITIES (kg): 3000, 4500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.
Output Resistance 1000 Ohm.
Model | Max (kg) | Price |
---|---|---|
SBX4500-1KL | 4500 | 1,030.00 AED |
SBX3000-1KL | 3000 | 830.00 AED |
MAIN FEATURES
TECHNICAL FEATURES
ATEX VERSION

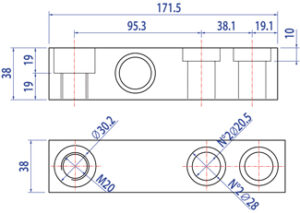

DIMENSIONS – DECODING STANDARD CABLE
NOTE: dimensions in mm
Decoding of the standard cable colours
Model | SBX3000-1KL, SBX4500-1KL |
---|---|
Max (kg) | 3000, 4500 |
