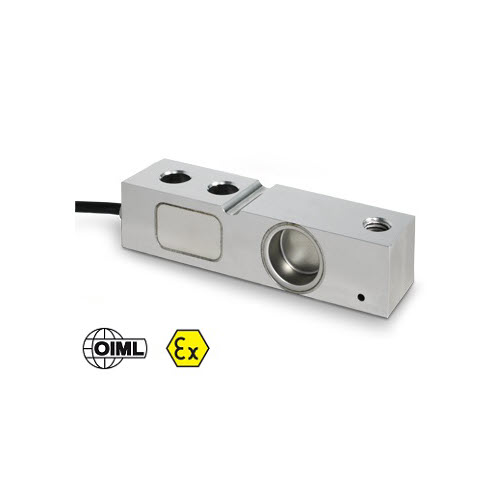

SBK-1KL Series IP68 Stainless Steel Shear Beam Load Cells, From 300kg to 2000kg

Categories:

1,150.00 AED (Excl. VAT)

1,150.00 AED (Excl. VAT)

Available on backorder

1,150.00 AED (Excl. VAT)

Available on backorder

1,150.00 AED (Excl. VAT)

Available on backorder

1,150.00 AED (Excl. VAT)

Available on backorder

Stainless steel shear beam load cells with low-power 1000 Ohm output resistance for mobile battery applications.
Suitable for building, for example, CE-M approved scales with 4 load cells or for weighing tanks and hoppers with the relevant accessories.
CAPACITIES (kg): 300, 500, 1000, 2000.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.
Output Resistance 1000 Ohm.

GET QUOTATION

Brand:

SBK-1KL Series IP68 Stainless Steel Shear Beam Load Cells, From 300kg to 2000kg

Categories:

1,150.00 AED (Excl. VAT)

1,150.00 AED (Excl. VAT)

Available on backorder

1,150.00 AED (Excl. VAT)

Available on backorder

1,150.00 AED (Excl. VAT)

Available on backorder

1,150.00 AED (Excl. VAT)

Available on backorder

Stainless steel shear beam load cells with low-power 1000 Ohm output resistance for mobile battery applications.
Suitable for building, for example, CE-M approved scales with 4 load cells or for weighing tanks and hoppers with the relevant accessories.
CAPACITIES (kg): 300, 500, 1000, 2000.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.
Output Resistance 1000 Ohm.

GET QUOTATION

ModelMax (kg)Price
SBK300-1KL3001,150.00 AED (Excl. VAT)
SBK500-1KL5001,150.00 AED (Excl. VAT)
SBK1000-1KL10001,150.00 AED (Excl. VAT)
SBK2000-1KL20001,150.00 AED (Excl. VAT)

MAIN FEATURES

  • C3 PRECISION CLASS
  • STAINLESS STEEL CONSTRUCTION
  • IP68 PROTECTION
  • MAX. CAPACITIES FROM 300 TO 2000 kg
  • SHIELDED CONNECTION CABLE
  • OIML CERTIFICATE AVAILABLE UPON REQUEST
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



TECHNICAL FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC = 3000
  • Combined error: 0,017% of Full Scale Output (F.S.)
  • Full Scale Output: 2mV/V +/- 0.1%
  • Temperature effect on zero: 0,0014% /°C
  • Temperature effect on full scale output: 0,0014% /°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,024% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 1100 ± 50 Ohm
  • Output Resistance: 1000 ± 10 Ohm
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 200% F.S.
  • 6-wire shielded cable, 5m long, 5 mm diameter



ATEX VERSION

  • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
    The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
  • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

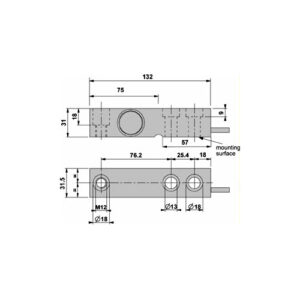

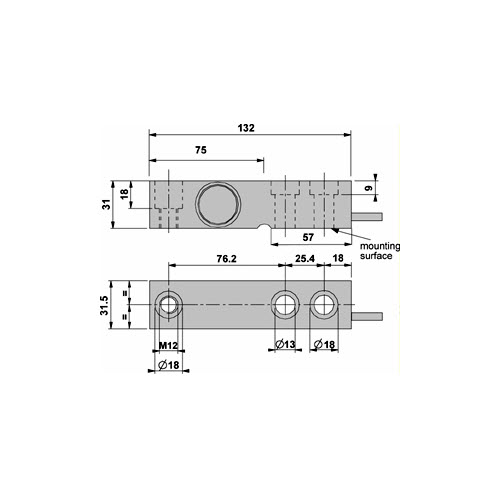

Dimensions (mm)

Additional information

Model

SBK300-1KL, SBK500-1KL, SBK1000-1KL, SBK2000-1KL

Max (kg)

300, 500, 1000, 2000
