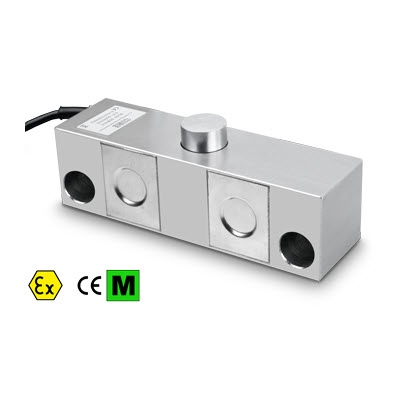

DSBI Series Double Shear Beam Stainless Steel Load Cells

Call for price

Call for price

Available on backorder

Call for price

Available on backorder

Call for price

Available on backorder

Stainless steel double shear beam load cells suitable for building, for example, to make CE-M approved scales for high capacities or for weighing tanks and hoppers with the relevant accessories. High accuracy also with the expansion of the weighing structures.
CAPACITIES (kg): 10000, 20000, 30000.
OIML R60. C4 precision class.
17-4 PH stainless steel. IP68 protection.

GET QUOTATION

Brand:

DSBI Series Double Shear Beam Stainless Steel Load Cells

Call for price

Call for price

Available on backorder

Call for price

Available on backorder

Call for price

Available on backorder

Stainless steel double shear beam load cells suitable for building, for example, to make CE-M approved scales for high capacities or for weighing tanks and hoppers with the relevant accessories. High accuracy also with the expansion of the weighing structures.
CAPACITIES (kg): 10000, 20000, 30000.
OIML R60. C4 precision class.
17-4 PH stainless steel. IP68 protection.

GET QUOTATION

ModelMax (kg)Price
DSBI3030000Call for price
DSBI2020000Call for price
DSBI1010000Call for price

TECHNICAL FEATURES

  • C4 PRECISION CLASS
  • 17-4 PH STAINLESS STEEL CONSTRUCTION
  • IP68 PROTECTION
  • MAX. CAPACITIES FROM 10000 TO 30000 kg
  • SHIELDED CONNECTION CABLE
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



MAIN FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Combined error 0,03% of Full Scale Output (F.S.)
  • Full Scale Output: 2mV/V +/- 0,1%
  • Temperature effect on zero: 0,00116% /°C
  • Temperature effect on full scale output: 0,00097% /°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -30°C/+85°C
  • Creep error after 30 minutes: <0,02% F.S. Maximum tolerated excitation voltage: 15 VDC Input Resistance: 700 ± 7 Ohm
  • Output Resistance: 700 ± 7 Ohm Zero Balance: +/- 1% F.S. Insulation Resistance: >5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 300% F.S.
  • 6-wire shielded cable, 15m long, 5mm diameter.



Additional information

Model

DSBI10, DSBI20, DSBI30

Max (kg)

10000, 20000, 30000
