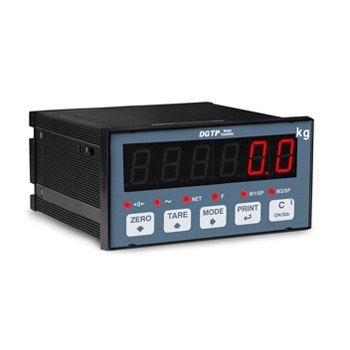

Dini Argeo Panel Weight Controller, Transmitter, and Indicator – DGTP

Description

Main Features

• Easy to use 5-key waterproof keyboard.
• Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
• Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Drill template: 136,5 x 67,5 x 140mm (lxhxw).
• A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
• Management of a digitally equalized 4-cell weighing system or management of 4 independent weighing systems.
• Connectable with up to 16 analog load cells with 350 Ohm input resistance.
• Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
• Calibration, Set-Up parameters, configurable from the keyboard, or from PC with DINI TOOLS.
• Up to 8 signal linearization points with DINITOOLS (3 from keypad).
• Fitted real-time clock.
• From 12 Vdc to 24 Vdc power supply.

I/O Section

• 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.
• 1 RS232/C bidirectional port configurable for connection to the printer.
• PROFIBUS serial interface (DGTPPB model).
• 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
• 4 optoisolator photocouplers inputs: 12÷24 Vdc, 5 mA min – 20 mA max, with configurable functions.
• 16-bit analogue output (DGTPAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. The maximum load applied to the output current: 300Ohm. The minimum load applied to the output voltage: 1kOhm.

Functions

• THROUGH KEYBOARD:
  Zeroing; Semi automatic and presettable tare, print, and/or data transmission; ON/Stand-by.
• SELECTABLE:
  High Resolution Weighing x 10; Lb/kg conversion; the Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option) e Peak.Available in 7.15 firmware version downloadable from the DOWNLOAD area:
  Net/Gross; Weighs totalisation; Formulation; Counting; In/Out Truck weighing and Hold.
• EXTERNAL INPUT:
  Simulation of key pressure; Keyboard lock.
• MOSFET OUTPUT:
  SetPoint Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as a direct check or upon weight stability.
• SERIAL PORTS:
  On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds.
  DGTP and DGTPAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.
• THROUGH 16 bit ANALOGUE OUTPUT (DGTPAN):
  Analog output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).

Optional:-

MASTER/REPEATER OPTION (MSTSLV code)

• A specific program for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

FUNCTIONING MODES:

• Multi-scale repeater (MASTER)
• the function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
• UNIVERSAL weight repeater
• the function which allows repeating the weight of any scales, through the configuration of the input string.
