DFWPM “Play Mobile”: Remote Control and Portable Weight Repeater

Categories:

Call for price

Call for price
Call for price

2.4 GHz radio frequency remote control and weight repeater in one solution, for DFW indicators and MCW crane scales. Easy to transport and view due to its small size and large backlit display. DFWPM can control the main scale functions from a distance using the integrated keypad.

The USB version allows to save weights for the further processing by a PC.

Fitted with a long life rechargeable battery.

IP65 protection.

GET QUOTATION

Brand:

DFWPM “Play Mobile”: Remote Control and Portable Weight Repeater

Categories:

Call for price

Call for price
Call for price

2.4 GHz radio frequency remote control and weight repeater in one solution, for DFW indicators and MCW crane scales. Easy to transport and view due to its small size and large backlit display. DFWPM can control the main scale functions from a distance using the integrated keypad.

The USB version allows to save weights for the further processing by a PC.

Fitted with a long life rechargeable battery.

IP65 protection.

GET QUOTATION

ModelPrice
DFWPM2G4Call for price
DFWPM2G4-USBCall for price

TECHNICAL FEATURES

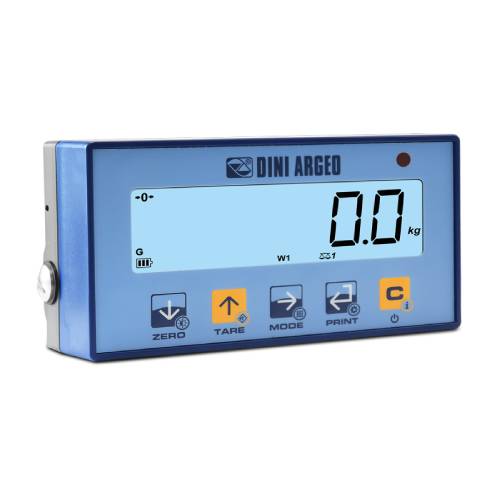

  • Backlit LCD 25 mm LCD display with 6 high contrast digits with icons for indicating the active functions.
  • 5 Key waterproof mechanical keyboard.
  • IP65 protection.
  • Compact and sturdy case, easy to clean and resistant in harsh and corrosive environments.
  • Dimensions (lxhxw): 173x98x54mm
  • Max. functioning distance, in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. 39 configurable channels.
  • Power supply provided by rechargeable long life battery (about 80h); battery charger included.
  • DFWPM has to be coupled with scales or crane scales fitted with optional radio module.



Additional features for the DFWPMxxUSB model:

  • Memory for weight storage.
    TAKE NOTE: for legal for trade applications, the connected scale/crane scale has to be fitted with the optional alibi memory board.
  • Mini USB standard port for download of the weights by a PC, through WeighConsole PC software (Mini USB to USB cable adapter not included).



SERIAL PORTS

  • 2.4 GHz integrated radio modem, with 39 different frequency channels, easily programmable from PC, for communication with indicator, scale and crane scale.
  • USB port (standard fitted with the DFWPM2G4-USB), for quick connection to the PC.
  • Infrared receiver for functioning with remote control.



FUNCTIONS

  • Remote visualisation of the weight, messages and metrological/functional icons.
  • Remote management of displayed scale functions: ZERO, TARE, PRINT, ENABLING/DISABLING of the FUNCTIONING MODE and SWITCH-OFF.



Additional functionalities for the DFWPM2G4-USB model:

  • Recording of 500 weights for internal use, executed on one or more scales/crane scales (weight of each scale and sum).

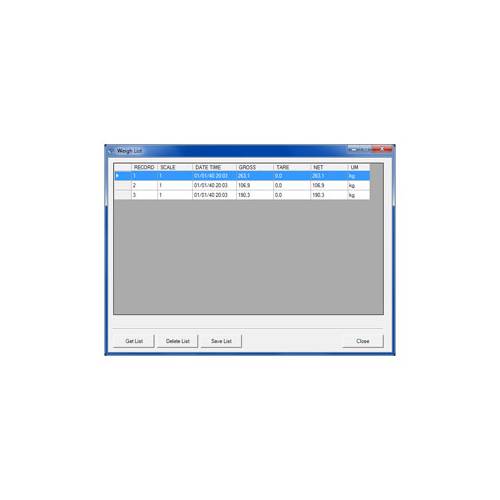

  • Connection to the PC through USB port for reading the list of weighs, by using the “Weigh Console” software or by a specific serial communication protocol.
  • Recording of 250 weights for legal for trade use, executed on one scale/crane scale fitted with optional alibi memory.

DFWPM "PLAY MOBILE": REMOTE CONTROL AND PORTABLE WEIGHT REPEATER

Additional information

Model

DFWPM2G4, DFWPM2G4-USB
