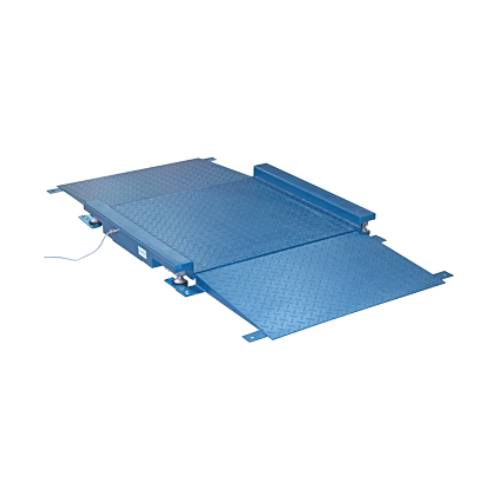

Low profile platforms, with 500 mm ramps, painted steel structure and chequered load surface. Ideal for weighing trolleys and pallet trucks thanks to the on/off ramps on both sides as well as the sideboards. The standard version is provided with approved load cells.

GET QUOTATION

Brand:

“FLP” SERIES LOW PROFILE PLATFORMS

Categories:

Call for price

Call for price
Call for price
Call for price

Low profile platforms, with 500 mm ramps, painted steel structure and chequered load surface. Ideal for weighing trolleys and pallet trucks thanks to the on/off ramps on both sides as well as the sideboards. The standard version is provided with approved load cells.

GET QUOTATION

ModelPrice
FLPC-1Call for price
FLPA-1Call for price
FLPB-1Call for price

TECHNICAL FEATURES

  • Fitted with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree. Chequered steel structure and load surface, oven-fire painted, RAL 5007 blue.
  • Adjustable, anti-shock jointed feet and level.
  • Power supply from 5 to 15 Vdc.
  • Hermetic junction box, IP67 wiring with shielded 5m long cable for connection to the indicator.
  • Fitted with sideboards and double on/off ramps.
  • Upon request:

– platform calibration service with weight indicator;
– 3000e CE-M approval (with first Periodic Check included, 3 years validity), to be combined always to the calibration service;
– support column for indicator.

"FLP" SERIES LOW PROFILE PLATFORMS

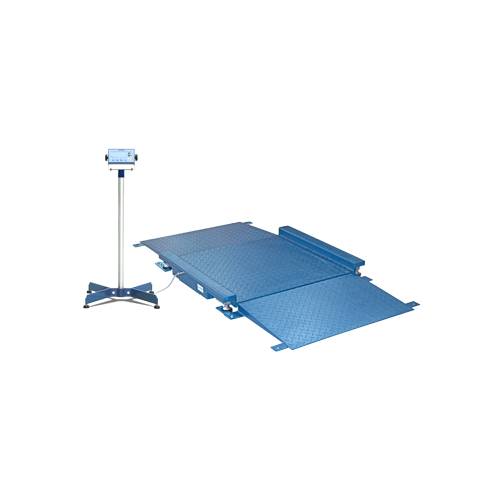

Installation example, with DFWL indicator and CSP38 column

Additional information

Weight N/A
Dimensions N/A
Model

FLPC-1, FLPA-1, FLPB-1
