Feature

CAS CI200 series is designed for static check-weighing operations along with other bench weighing applications from general-purpose to wash-down. Suitable for use in wet and harsh industrial environments due to its fully stainless steel construction that offers durability and cleanliness. Features:

• • Waterproof Floor Scale
  • Available Capacities: from 3000 & 5000 Kg
  • Display: 25mm LED
  • Body Structure:

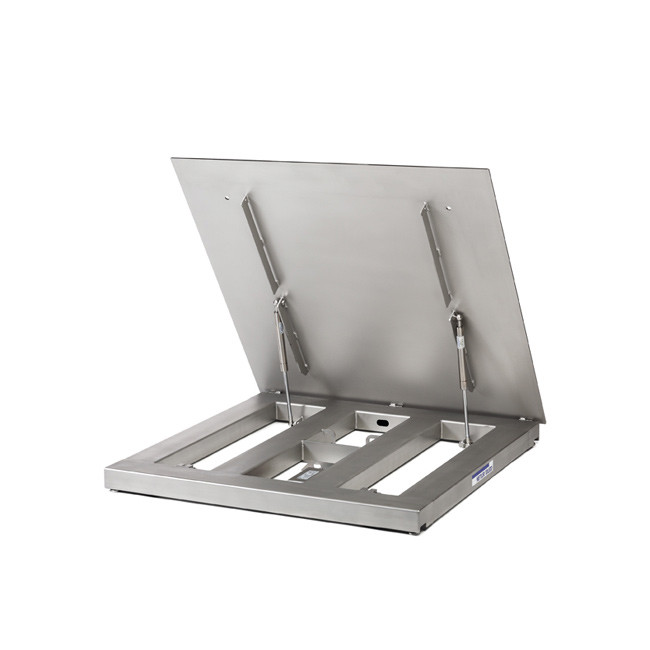

-Platform: Heavy-duty, low profile, single deck, Stainless Steel 304 -Indicator: Waterproof Wash-down Stainless Steel IP67, Wall/Desk Mount kit Included

• Load Cells: 4 nos. of standard OIML Stainless steel shear beam type
• legs: 4 height adjustable swivel Stainless steel and rubber feet
• 5m cable
• Selectable Units: Kg/ Lb.
• Functions: Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight, Auto Calibration, Time & Date, Auto Zero, livestock stabilization, Illumination Level, Auto off, ID capabilities, Print Format, programmable Special function
• Interface: Serial RS232
• AC/DC adaptor 110-240v with rechargeable battery
• Over Load Protection with alert



Description:

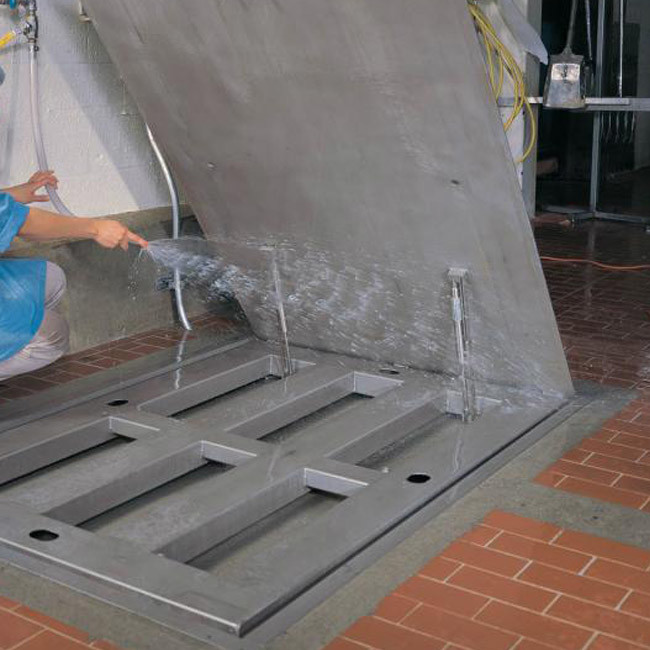

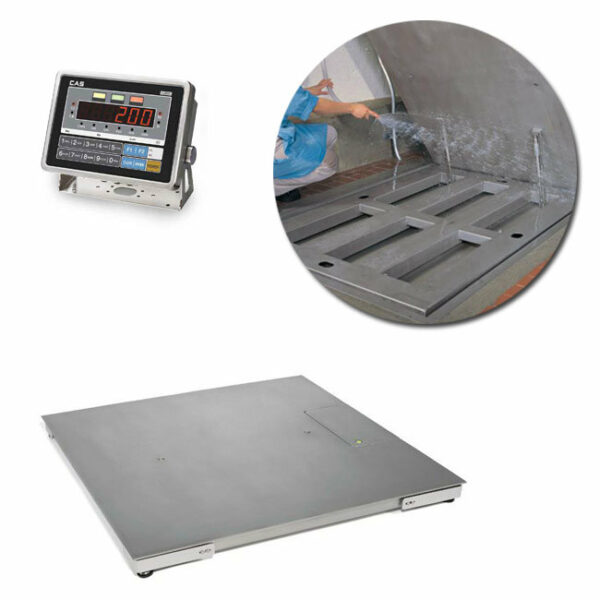

CAS CI-200SC Digital Check-Weigh Indicator series is a compact weighing Indicator with stainless steel housing (IP67). LCD display with check-weigh lights for static check-weighing scales. Platform Structure is Waterproof Wash-down Stainless Steel and 6 wire and 4 wire load cell support and PC command mode. Applicable for various weighing applications, with the added flexibility of manually setting functions via numeric keys. The CI-200SC series has an internal rechargeable battery and is highly portable and ideal for wet & harsh environments. The CI-200 Series, a family of digital indicators providing full-featured versatility and dependability at an economical price. A wide array of standard features include either 304 stainless steel IP67 rated or hardened plastic NEMA 12 enclosures, AC or DC operation, choice of dry cell or rechargeable battery, full function numeric keypad, ID capabilities, and much more.

• Waterproof Platform Scale
• 72 Hrs of continuous use (6V4Ah Sealed Batteries)
• Available capacities: 3000 & 5000 Kg
• Brighter and Clear LED Display
• 3 colored check-weighing lights
• IP67 grade Stainless steel structure
• Number Key & Function Key applied
• High Speed A/D conversion speed (80 times/sec)
• Built-in Chargeable battery
• Selectable Units: Kg/ Lb.
• Hold
• TARE
• Net
• Gross
• Zero
• Check Weight
• Auto Calibration
• Auto Zero
• Time & Date
• Livestock stabilization
• Illumination Level
• Auto-off
• ID capabilities
• Print Format
• Programmable Special function
• Interface: Serial RS232
• Load Cells: 4 nos. of standard OIML Stainless steel shear beam type
• Legs: 4 height adjustable swivel Stainless steel and rubber feet
• 5m cable
• Legal for trade
• Great for all type of Industries



Specifications

Model	CI-200S-A-1010-3	CI-200S-B-1212-5		CI 200S-C-1515-5
Capacity x Readability	3000 Kg 200 gm	3000 / 5000 Kg 200 / 500 gm		5000 Kg 500 gm
Resolution	Internal Degradability: 1/520,000 External Degradability : 1/10,000, (1/30,000 Non approval)
Approvals	NTEP COC# 11-026
Loadcell Input  voltage	DC 5V
Loadcell connection	8 @ 350 ohm / 16 @ 1000 ohm
Zero Calibration	0~2 mV/V
Input Sensitivity	Over 2.0μV/D (OIML,NTEP), 0.5 μV/D(Non approval)
Digits	6 digits (weight)
Display	6 Segment 1 inch / 25 mm LED 3-color weight distinguishing  LED (CI-200SC)
Display Designators	ZERO, TARE, GROSS, NET, STABLE, UNIT
A/D Conversion speed	80 times/sec
Water Proof Grade	IP67
Load Cell	4 nos. of standard OIML Stainless steel shear beam type
Keys	10 numeric keys, 2 function keys
Functions	Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight Auto Calibration, Time and date, Auto Zero, livestock stabilization, Illumination Level, Auto-off, ID capabilities,
Interface	RS-232C
Operating Temp	-10°C ~ 40°C / 14°F ~ 104°F
Power	DC 12V , AC 100~240 V adaptor, 6V battery
Battery Life Time	Approx. 26 hours
Battery charging time Approx.	Approx. 12 hours
Platter Size (CM)	1.0×1.0	1.2×1.2	1.5×1.5
Dimensions (CM)	100x100x10	120x120x10	150x150x10
Product Weight (approx.)	120 kg	150  kg	180 kg
Warranty	1 Year



Optional Accessories:

• Indicator Stand
• Metal Shielded Cable
• Ramps
• Pallet Trolley
• Test Weights
