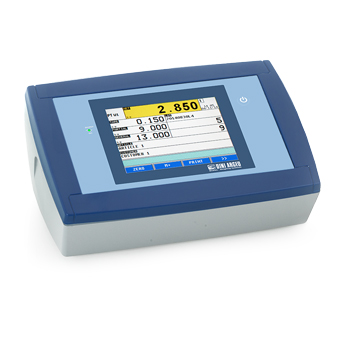

3590ETD “TOUCH”: Touch Screen weight indicator for digital weighbridges

Categories: ,

Call for price

Weight indicator which is suitable to manage digital load cells for weighbridges. It allows the visualization of all the data related to the weighing and the personalization of the screens, greatly simplifying the operations of the user. Equipped with 3 serial ports, Ethernet port, transmission protocols for data communication, fully configurable printouts, integrated alibi memory and input for barcode/badge reader. CE-M approved (OIML R-76 / EN 45501).

GET QUOTATION

Brand:

3590ETD “TOUCH”: Touch Screen weight indicator for digital weighbridges

Categories: ,

Call for price

Weight indicator which is suitable to manage digital load cells for weighbridges. It allows the visualization of all the data related to the weighing and the personalization of the screens, greatly simplifying the operations of the user. Equipped with 3 serial ports, Ethernet port, transmission protocols for data communication, fully configurable printouts, integrated alibi memory and input for barcode/badge reader. CE-M approved (OIML R-76 / EN 45501).

GET QUOTATION

MAIN FEATURES

  • Power supply unit specifically for digital load cells.
  • Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters..
  • Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
  • Multilanguage software.
  • QWERTY, AZERTY or QWERTZ keyboard, selectable.
  • ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer).
  • Dimensions: 278x125x186 mm.
  • Suitable for use on the table, column, or wall.
  • Real time clock and permanent data storage.
  • Fitted alibi memory, integrated on the motherboard.
  • Slot for built-in micro SD for recording logos (upon request).
  • Functions available with DINITOOLS utility
    • Configuration, data entry and print formatting.
    • Recording and filing of all the information on PC.
    • Complete retrieval of the configuration.
    • Instrument calibration with numeric values.
    • Customization of the screens.
  • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
  • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
  • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
  • Management of the most common digital load cells for weighbridges, also CE-M approved applications.
  • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
  • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programmation of the printout formats.
  • 110-240 Vac power supply.



APPLICATION SOFTWARE FOR WEIGHBRIDGES

  • The indicator is equipped as standard with application program AF03GT, specific for weighbridges.



AVAILABLE LANGUAGES

  • Menu selectable languages:
  • IT, EN, FR, DE, ES, PT, PL
  • Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
  • Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
  • Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
  • Windows 1251: RU, UK, BE, BG, SR, MK, EN
  • Windows 1253: EL, EN
  • Windows 1258: VI, EN, FR



MAIN CERTIFICATIONS

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 – MID
  • OIML R134 (AF09)

Additional information

Model

3590ETD

Description

Touch Screen indicator with AF03 firmware , suitable for the connection of digital load cells. ABS case. 5.7" colour display. Internal power supply for digital load cells. RS485 serial port, with lightning and surge protection circuit
