TECHNICAL FEATURES

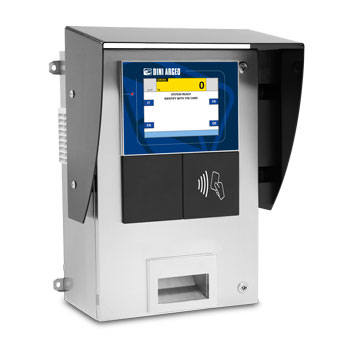

• Satin STAINLESS steel electrical panel board, fitted with electromechanics and power supply unit for integrated devices.
• Protection visor for outdoor use, from sun and adverse weather conditions.
• 8″ high-brightness resistive touchscreen display, suited for use with gloves and water/condensation.
• Completely customizable display.
• Double aeration grille with built-in fan.
• Internal heating unit with thermostat.
• Choice from QWERTY, AZERTY or QWERTZ touchscreen keyboard settings.

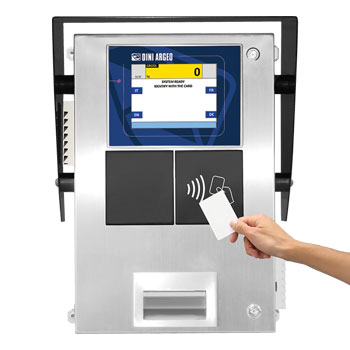

• Built-in RFID reader, with reading distance up to 30mm or coin acceptor.
• Fitted with Alibi Memory.
• Quick display language selection.
• Thermal printer fitted with paper cutter. Printing speed >150mm/sec., 200 dpi resolution, 24/40 columns, 80mm paper width.
• Completely configurable and customisable tickets.
• AF03 software for weighbridges, standard configuration for self-service use.
• A/D 24 bit converter, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearisation points.
• 4 analogue independant weight reading channels (up to 2 in the E-AF03 version).
• 10.000e or multi-range 3 x 3000e @ 0,3 µV/e in CE-M legal for trade approved version.
• 1.000.000 displayable divisions for internal use with internal resolution up to 3.000.000 points.
• Power supply a 110-240 Vac.

MAIN FUNCTIONS

• Zeroing, automatic tare, presettable tare, locked/unlocked tare.
• Management of the main digital load cells available on the market.
• Automatic acquisition of the operator and vehicle data, through magnetic badge, for storage of input/output weighings.
• Management of vehicles with trailer even on 2 scales (tractor weighed on scale 1 + trailer weighed on scale 2)
• Database of 500 storable customers and 250 storable suppliers with three 25-digit alphanumeric descriptions, net total, weighing total.
• Database of 500 items with 20-digit alphanumeric description, net total, weighing total.
• Database of 500 vehicles with 20-digit alphanumeric description, plate (10 digits), linked tare, net total, weighing total.
• 6 totalisation levels resettable and printable separately: partial total, general total, grand total, customer total, item total, vehicle total.
• Printing reports of the whole database or just the handled files.
• Automatic printing with completely configurable layout.
• Possibility to set a password to access the SETUP.

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76
• OIML R134 (AF09)

I/O SECTION

• 1 internal Ethernet port as standard (if activated, it deactivates one serial port), to connect to the company network.
• 1 USB port to save data on a USB driver (driver not provided).
• 2 RS232 serial ports on screw terminals for connection to printer, PC, radio module and optional interfaces.
• 1 RS232/RS485 serial port on screw terminals, for connection to weight repeater, remote scale, badge reader or digital load cells.
• Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
• 4 optoisolated outputs, expandable up to 16 with optional board.
• 2 optoisolated inputs, expandable up to 8 with optional board.
• External Profibus or Modbus/TCP,interface (optional), for automation management.
• External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with standard AF01 weighing program).
• Modbus RTU Interface.
• Optional Bluetooth connection, for quick wireless programming of databases, through PC, smartphone or tablet.
• Analog output DAC16O needs the expansion board IOEXPB.

AVAILABLE LANGUAGES

• Menu selectable languages:
• IT, EN, FR, DE, ES, PT, PL
• Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
• Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
• Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
• Windows 1251: RU, UK, BE, BG, SR, MK, EN
• Windows 1253: EL, EN
• Windows 1258: VI, EN, FR
