Brand:

Sigma DDM-W1 - Wireless Dynamometer

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • Indicator: 12mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power:
    • Dynamometer Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
    • Indicator Battery USB power supply, lithium battery optional
  • Battery Life ≥50 hours
  • Over Load Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W1-30, 30 ton / 10 kg
Call for price
DDM-W1-20, 20 ton / 10 kg
Call for price
DDM-W1-10, 10 ton / 5 kg
Call for price
DDM-W1-05, 5 ton / 2 kg
Call for price
DDM-W1-03, 3 ton / 1 kg
Call for price
DDM-W1-02, 2 ton / 1 kg
Call for price
DDM-W1-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

Brand:

Sigma DDM-W1 - Wireless Dynamometer

Categories:

Call for price

  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • Indicator: 12mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power:
    • Dynamometer Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
    • Indicator Battery USB power supply, lithium battery optional
  • Battery Life ≥50 hours
  • Over Load Protection and alarm
  • 1 year: warranty
  • Optional: Shackles, Inspection and calibration certificate by a 3rd party approved lab.
DDM-W1-30, 30 ton / 10 kg
Call for price
DDM-W1-20, 20 ton / 10 kg
Call for price
DDM-W1-10, 10 ton / 5 kg
Call for price
DDM-W1-05, 5 ton / 2 kg
Call for price
DDM-W1-03, 3 ton / 1 kg
Call for price
DDM-W1-02, 2 ton / 1 kg
Call for price
DDM-W1-01, 1 ton / 0.5 kg
Call for price
GET QUOTATION

ModelCapacity / DivisionPrice
Model: DDM-W1-30Capacity / Division: 30 ton / 10 kgPrice: Call for price
Model: DDM-W1-20Capacity / Division: 20 ton / 10 kgPrice: Call for price
Model: DDM-W1-10Capacity / Division: 10 ton / 5 kgPrice: Call for price
Model: DDM-W1-05Capacity / Division: 5 ton / 2 kgPrice: Call for price
Model: DDM-W1-03Capacity / Division: 3 ton / 1 kgPrice: Call for price
Model: DDM-W1-02Capacity / Division: 2 ton / 1 kgPrice: Call for price
Model: DDM-W1-01Capacity / Division: 1 ton / 0.5 kgPrice: Call for price

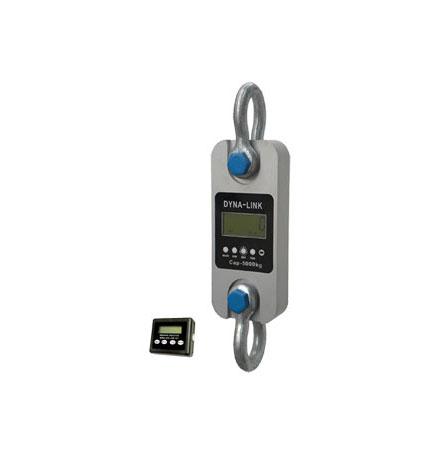

DDM-W1 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool that offers universal applications. The indicator 180 has a USB port, communicates with a PC, and Solves many laptops without a serial port problem. DDM-W1 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 180 indicator. Specification:
  • Body protection: Aluminum and alloy steel capacities are powder coated.
  • Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
  • Units: Units are clearly displayed on the screen, available in the following measurement reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
  • Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
  • Gravity regulation: The acceleration of gravity can be regulated through indicators according to different place values.
  • Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.?
  • Package: Packed with carry case, easy to bring.
  • Indicator key: 4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.

Features

Body display 25mm (1’’) 5digits LCD with backlight
Indicator display 12mm(0.5’’) 5digits LCD with backlight
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 20% F.S.
Stable Time ≤5seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥50 hours
Body Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Indicator Battery USB power supply, lithium battery optional
Operating Temp – 10℃ ~ + 50℃
Operating Humidity ≤85% RH under 20℃
Wireless Distance Min. 80m(default) [200m(optional)]


Main technical data

MODEL Max. capacity(kg) Min. weigh(kg) Division(kg) Total dispay counts (n)
DDM-W1-01 1000/2200 10/20 0.5/1 2000
DDM-W1-02 2000/4400 20/40 1/2 2000
DDM-W1-03 3000/6600 20/40 1/2 3000
DDM-W1-05 5000/1100 40/80 2/4 2500
DDM-W1-10 10000/22000 100/200 5/10 2000
DDM-W1-20 20000/44000 200/400 10/20 2000
DDM-W1-30 30000/66000 200/400 10/20 3000

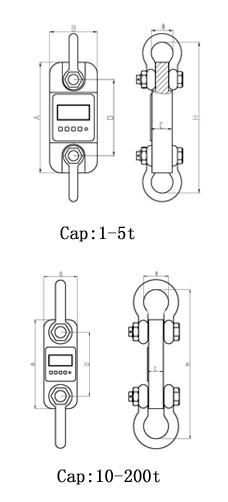

Specification

MODEL A(mm) B(mm) C(mm) D(mm) φ(mm) H(mm) Material
DDM-W1-01 245 112 37 190 43 335 Aluminum
DDM-W1-02 245 112 37 190 43 335 Aluminum
DDM-W1-03 260 123 37 195 51 365 Aluminum
DDM-W1-05 285 123 57 210 58 405 Aluminum
DDM-W1-10 320 120 57 230 92 535 Alloy Steel
DDM-W1-20 420 128 74 260 127 660 Alloy Steel
DDM-W1-30 420 138 82 280 146 740 Alloy Steel

Additional information

Model

DDM-W1-01, DDM-W1-02, DDM-W1-03, DDM-W1-05, DDM-W1-10, DDM-W1-20, DDM-W1-30

Capacity / Division

1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 10 kg, 30 ton / 10 kg
