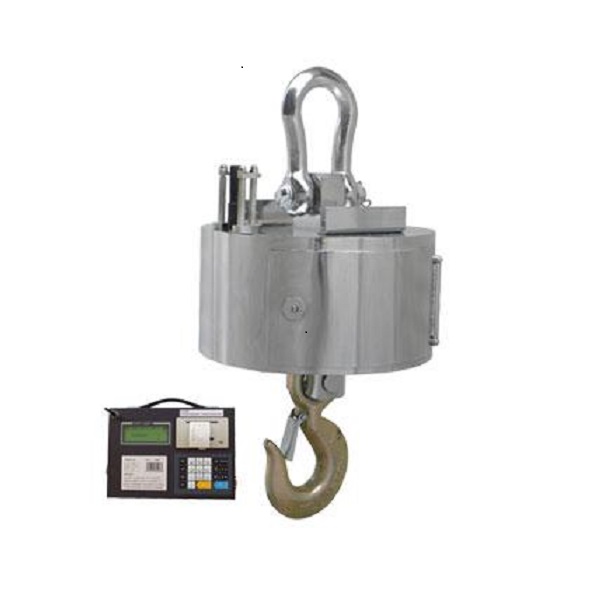

SENS SWL6 series – Heavy Duty Wireless Crane Scale
The OCS SWL6 is manufactured with special and advance features to handle all type of requirements for heavy industry. The scale can used to measure and display the weights and print it immediately.
- Heavy Duty Crane scale.
- Body Structure: Heavy Duty Case
- Display: 30mm LED display
- Infrared Remote Control
- Units: Kg/ Lb. / N
- Resolution (Division) switch
- Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
- Power: AC/DC with Rechargeable battery
- Over Load Protection with alarm
Product Variations
No. | Thumbnail | Model | Capacity / Division | Stock | Quantity | Price | |
---|---|---|---|---|---|---|---|
No. | Thumbnail | Model | Capacity / Division | Stock | Quantity | Price |
Description
The Heavy duty crane scale is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weigher or to measure force.
Features:
- Seamless steel pipe enclosure for maximum protection.
- Menu operation mode, calibration, saving, searching, printing, easy to operate.
- Indicator Adopts 2:-t. A/0 conversion technology.
- Able to setup zero(auto/manual) range, filtering range.
- Weighing data save protection In case of power off.
- Battery charger with several protection modes to extend life of rechargeable battery.
- Standard RS232 communication interface(optional).
- Portable design, indicator packed in portable carry case, easy to operate outdoor
- Gathering up to data records of 2000 weighings, records can be sorted, searched and printed.
- Power saving mode, Indicator will turn off automatically after30minutes with no operation.
- With 32 channels optional, so 32 crane scales can operate independently in the same airplace without interface.
- Multi-function operation: Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operate through remote controller etc functions.
- User-friendly design
Accessories:

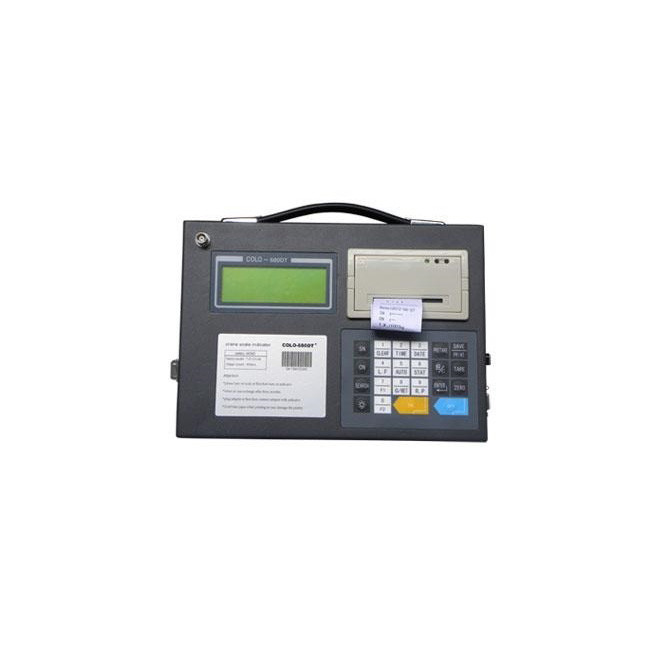

- Wireless Display Remote Control with Printer
- Battery
MODEL | A(mm) | C(mm) | Φ(mm) | E(mm) | H(mm) | N.W.(kg) |
OCS-SWL6-5 | 120 | 50 | 298 | 155 | 485 | 45 |
OCS-SWL6-10 | 124 | 60 | 325 | 170 | 655 | 55 |
OCS-SWL6-15 | 225 | 70 | 325 | 170 | 855 | 75 |
OCS-SWL6-20 | 225 | 85 | 325 | 170 | 920 | 85 |
OCS-SWL6-30 | 260 | 105 | 375 | 200 | 1055 | 125 |
OCS-SWL6-50 | 360 | 110 | 450 | 280 | 1360 | 330 |
Brand
Sens
Additional information
Weight | N/A |
---|---|
Scale Capacity Range (Crane) | 5 Ton, 9-10 ton, 12-20 Ton, 25-50 ton |
Model | HS-SWL6-05, HS-SWL6-10, HS-SWL6-15, HS-SWL6-20, HS-SWL6-30, HS-SWL6-50 |
Capacity / Division | 5 ton / 2 kg, 10 ton / 5 kg, 15 ton / 5 kg, 20 ton / 10 kg, 30 ton / 10 kg, 50 ton / 20 kg |
