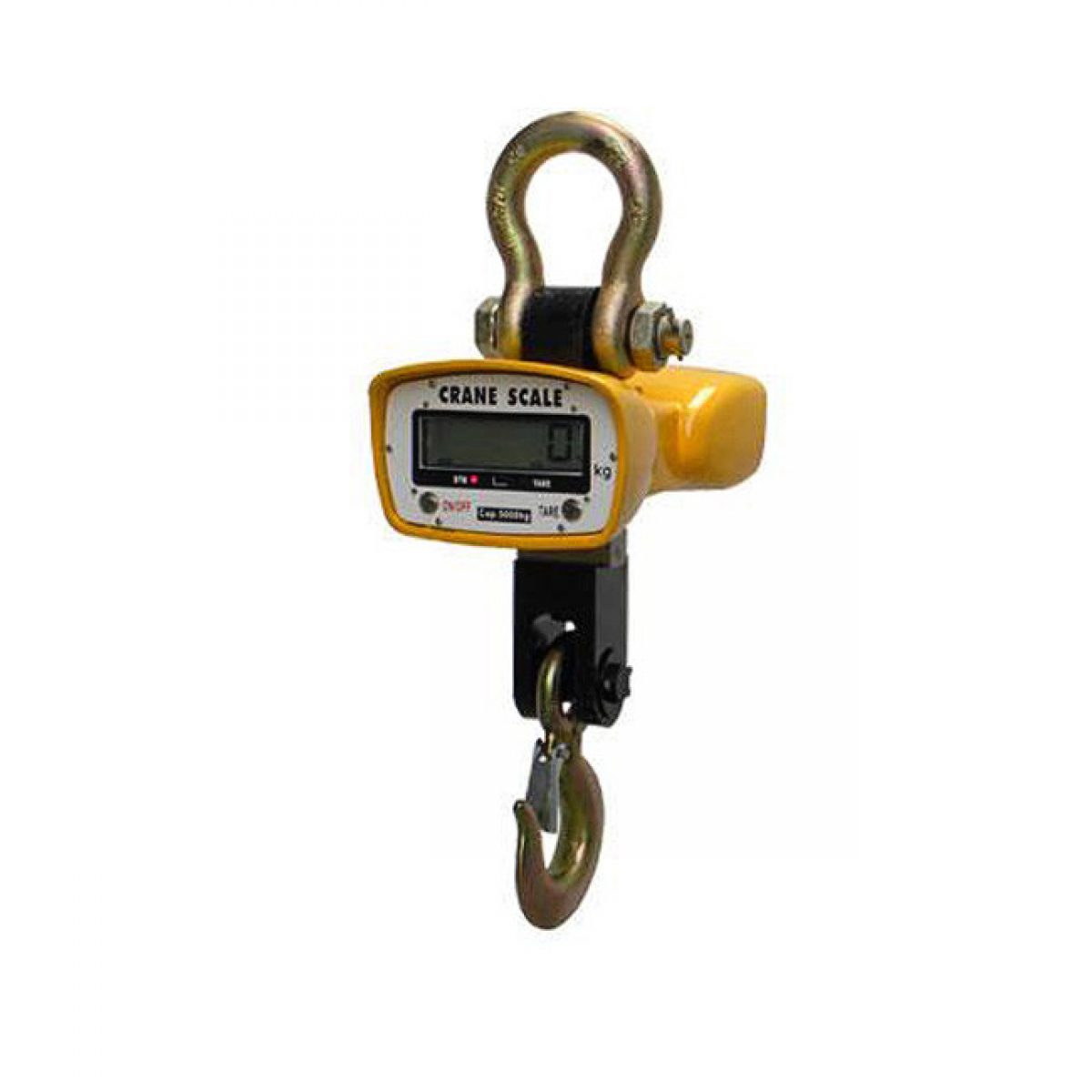

SENS SW Series – Heavy Duty Crane Scale

The OCS SW is manufactured with special and advance features to handle all type of requirements for heavy industrial usage.

  • Heavy Duty Crane scale.
  • Body Structure: Heavy Duty Case
  • Display: 30mm LED display
  • Capacity: 5 ton – 20 ton
  • Infrared Remote Control
  • Units: Kg/ Lb. / N
  • Resolution (Division) switch
  • Functions: Units Conversion, Hold, TARE, Zero, Total Accumulation, Calibration, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
  • Power: AC/DC with Rechargeable battery
  • Over Load Protection with alarm
SKU: N/A Categories: , Tag:

Product Variations

No. Thumbnail Model Capacity / Division Stock Quantity Price
No. Thumbnail Model Capacity / Division Stock Quantity Price

Description

  • Enclosure: NEMA 12/IP54 powder coated Foundry Cast Aluminum.
  • Multi-weighing units: Kg, lb are selectable, kg is default unit.
  • Multi-function operation: are, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
  • User-friendly design: Large red 5 digit LED display.
  • Low battery indication, Automatic turn off, power-saving function.
  • Accuracy: According to OIML class Ⅲ.
  • DISPLAY: 30 mm (1.2″) 5digits LCD/LED.
  • Battery: Fully sealed Lead-Acid battery, 6V/7Ah, can reach 70hours continuous working.
  • Adapter: DC 9V/1000mA
  • Ultimate Load: 400% of capacity.
  • Operation temperature: -20℃ to 50℃
  • Gravity regulation: The acceleration of gravity can be regulated through wireless indicator according to different places value.
  • Multi options: RS-232-continuous or on demand data output, user-selectable Wireless big screen 3″, 5″, wireless handheld indicator 180, 280 380,and 580 can match with the scale, user- selectable.

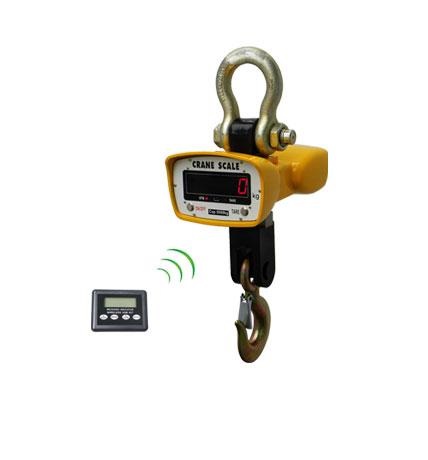

  • RF wireless palm indicator. (Optional)
  • 580 Indicator communications (Optional): Both RS232 serial port and USB port solve most laptops without serial port problem. with the Everight company’s PC host computer software, not only display weigh value and stable information on the PC, can also enter company’s name, complete storage, print query and other functions
  • Antenna: Internal antenna for Wireless indicators and printer



Accessories:

  • Remote Control
  • Battery

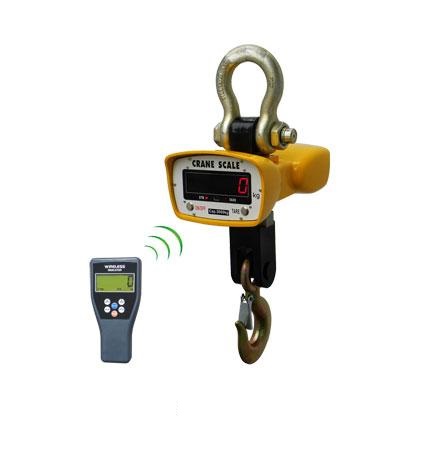

  • 380 Wireless Hand held display (optional)

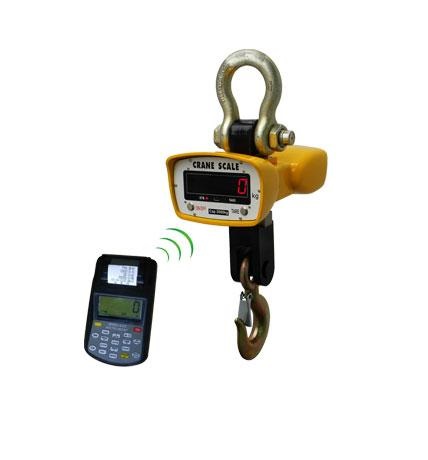

  • 580 Wireless Hand held Indicator with printer (optional)

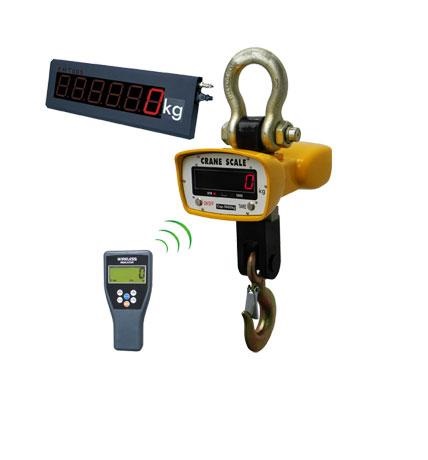

  • Wireless Bright LED Large Display (optional)



MODEL A(mm) B(mm) C(mm) H(mm) N.W.(kg)
HS -SW-5 113 365 50 625 30
HS -SW-10 122 365 60 760 45
HS -SW-15 144 365 70 835 80
HS -SW-20 166 365 85 900 85





Brand

Sens

Additional information

Weight N/A
Scale Capacity Range (Crane)

5 Ton, 9-10 ton, 12-20 Ton

Model

HS-SW-05, HS-SW-10, HS-SW-15, HS-SW-20

Capacity / Division

5 ton / 2 kg, 10 ton / 5 kg, 15 ton / 5 kg, 20 ton / 10 kg
