Brand:

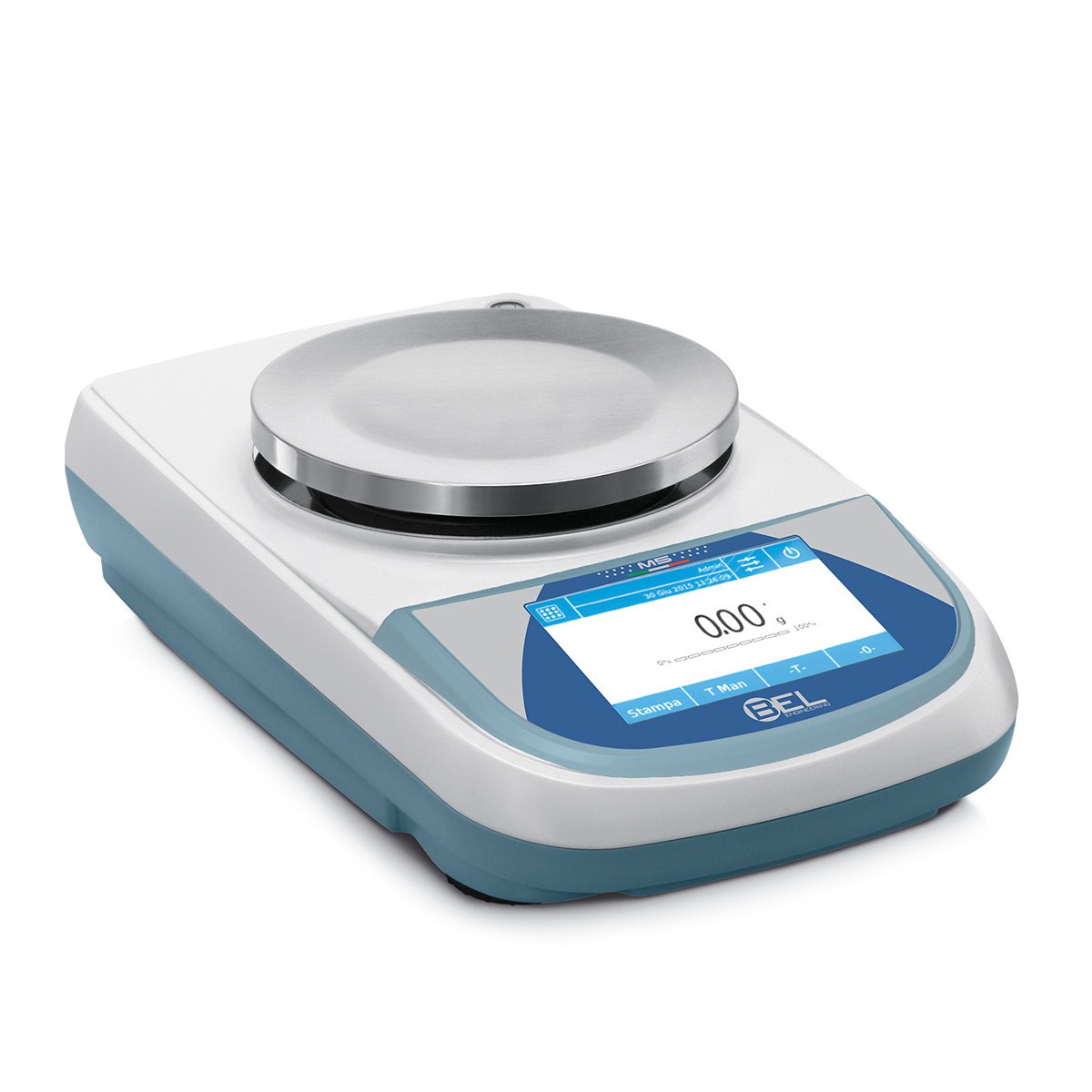

BEL M5 series – 4.2kg/ 0.01g (10mg) – Precision Balance

Call for price

  • Model: M5-L4202i
  • Capacity [Max]: 4200g
  • Resolution [d]: 0,01g
  • Calibration: Automatic internal
  • Pan size: Ø 160mm
  • 1 Year Warranty
GET QUOTATION

Brand:

BEL M5 series – 4.2kg/ 0.01g (10mg) – Precision Balance

Call for price

  • Model: M5-L4202i
  • Capacity [Max]: 4200g
  • Resolution [d]: 0,01g
  • Calibration: Automatic internal
  • Pan size: Ø 160mm
  • 1 Year Warranty
GET QUOTATION

M5 precision balances are the most innovative and advanced series made by BEL Engineering. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s advanced applications and internal databases.

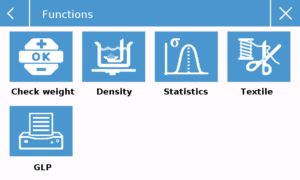

The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity.
A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case.
With resolution from 0,001g to 0,1g this serie offers a wide choice of models for many application with the simplicity of a touch screen interface.
The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.

Overview

  • High resolution load cell weighing system
  • Automatic internal calibration
  • 5’’ Touch-screen Display 800×480
  • RS232 serial interface
  • Selectable Measuring units
  • Internal Database
  • GLP
  • Multi Languages (EN-DE-FR-IT-SP-PT)
  • Multi-user with password protection
  • USB port for import/export database data
  • Advanced piececounting function with Statistcs report

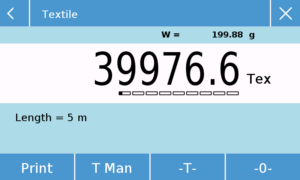

  • Textile function to measure fibers with Statistics report

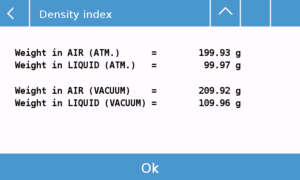

  • Advanced Density function, with density index (DI) calculation
  • Formulation (Recipe)
  • Checkweighing
  • Percentual weighing
  • Weights adding
  • Animal weighing
  • Max load determination (Peak hold)
  • Large glass draught shield with 3 sliding doors for easy access to the items being weighed



Technical Features

Capacity [Max] 4200g
Resolution [d] 0,01g
Calibration Automatic internal
Pan size Ø 160mm
Repeatibility 0,01g
Response time (sec.) ≤3
Linearity ± 0,04g
Verification
Minimum Load 500 mg
Display TOUCH-SCREEN 5”
Tare Range (Subtractive) 4200 g
Span Drift In +10…+30°c ± 4 ppm/°C
Interface RS232
Database Capacity 3000
Working Temperature 5 – 35°C (15-30°C for verified models)
Power Supply 110-230Vac. 50/60Hz, output 9V 1,2A 10VA
Power Consumption (Max) 1 Watt
Calibrates With (Class) 2000 g (F1)
Balance Dimensions (W X L X H) 215 x 345 x 100 mm
Net Weight / Gross Weight, Approx. 3,8 / 5 Kg
Package Size (W X L X H) 310 x 440 x 290 mm



Accessories

  • Portable ioniser Ion-A15 (BL0371)
  • Serial Printer TLP-50, with date/time (C054)
  • Serial Printer DPP-250 (AC007)
  • Serial Printer STAT , with Stastistics functions (AC022)
  • Density KIT for solids and liquids (AC002)
  • Serial to USB converter (E1002)
  • Serial cable for serial output to printer or PC (E743)
  • USB pendrive 8 Gigabyte
  • Stylus pen for touchscreen
  • Factory Calibration certificate (BL0333)
