Brand:

TAD Series – Scissor Lift Table

Categories:

Call for price

General Information

TAD35 TAD80
Rated Capacity (lb.) 770 1764
Service Weight (lb.) 236 351
GET QUOTATION

Brand:

TAD Series – Scissor Lift Table

Categories:

Call for price

General Information

TAD35 TAD80
Rated Capacity (lb.) 770 1764
Service Weight (lb.) 236 351
GET QUOTATION

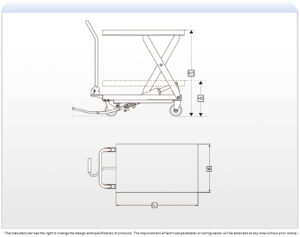

TAD35 Size
Caster Type PU
Table Size in.WL 20.5×39.7
Lowered Height in.H2 17.1
Raised Height in.H1 62.4
Caster Size in. Φ5.9
Lift Time strokes 53
Lift Type Double Scissor
TAD80 Size
Caster Type PU
Table Size in.WL 20.5×39.8
Lowered Height in.H2 18.5
Raised Height in.H1 55.5
Caster Size in. Φ5.9
Lift Time strokes 53
Lift Type Double Scissor



Product features

Safety stops minimize the risk of injury Automated Electrostatic Paint for rust reduction Constructed with an over loaded valve to reduce maintenance costs Made with heavy duty reinforced steel Engineered to put up with tough environments The hydraulic piston includes a velocity fuse which “locks” the downward travel of the table in a free-fall situation, in case of a hydraulic system failure

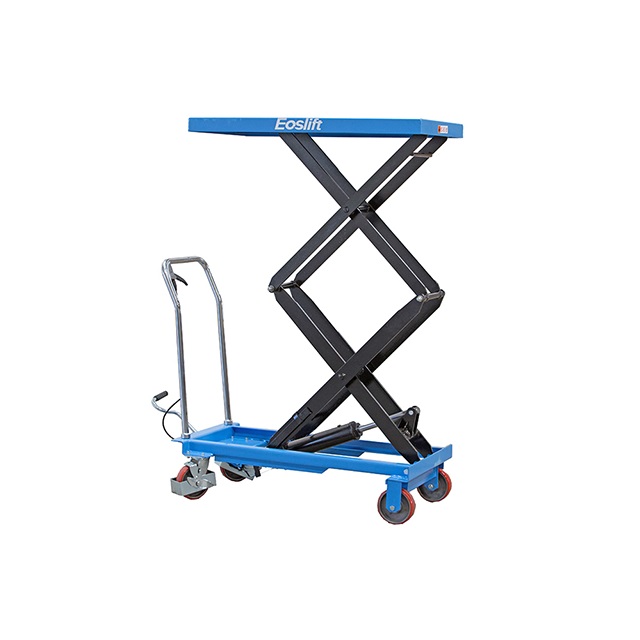

  • Eoslift USA Industrial Grade Heavy Duty TAD35 Manual Double Scissor Life Table Cart. The load maximum is 770 lbs., and it has a 62.4 in. raise height. The table measures 20.5 x 39.7 in. and is made of reinforced robotic welding to lift the heaviest items. It also features polyurethane wheels to complete any loading project.

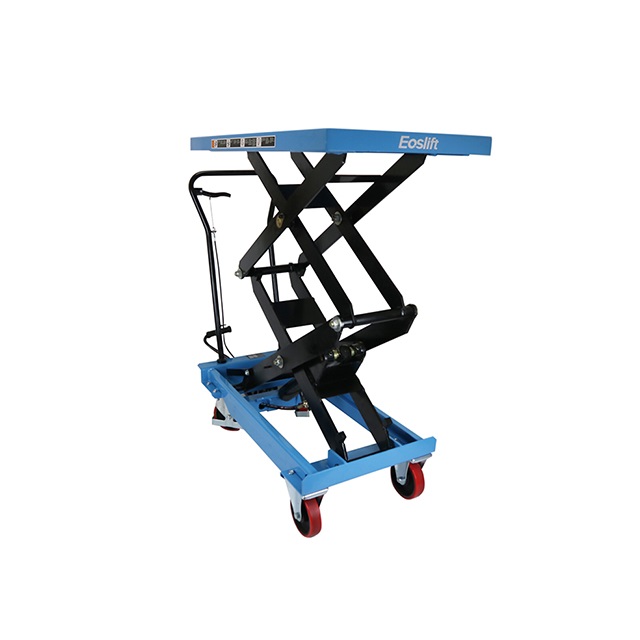

  • Eoslift USA Industrial Grade Heavy Duty TAD80 Manual Double Scissor Life Table Cart. The load maximum is 1764 lbs., and it has a 62.4 in. raise height. The table measures 20.5 x 39.8 in. and is made of reinforced robotic welding to lift the heaviest items. It also features polyurethane wheels to complete any loading project

Additional information
